Katko Product Presentation Overview

This document provides a comprehensive overview of Katko's range of electrical components, focusing on load break switches, switch fuses, safety switches, and cable connectors. The presentation is structured to highlight specifications, available models, and accessories for each product category.

Load Break Switches

Katko offers load break switches ranging from 16A to 800A, available in 3- and 4-pole rotary and toggle switch configurations. Key models include KU 340N, KU 440N, VKA 3160N, and VKA 4160N. Accessories such as handles, shafts, and auxiliary contacts are available, with options for acid-proof materials.

Switch Fuses

The switch fuses range from 63A to 160A, with modular designs supporting 1- to 4-pole configurations. Notable models include KVKE 3160 and KVKE 3125, featuring four breaking points per phase. Accessories are compatible with KU-rotary switches.

Safety Switches / Isolators

Safety switches are available from 10A to 800A, housed in polycarbonate, aluminium, and sheet steel enclosures. These enclosures are designed for demanding environments, offering IP ratings up to IP 66 for enhanced protection.

Cable Connectors

Katko provides cable connectors suitable for Al/Cu cables ranging from 25mm² to 300mm². These connectors are made from stainless steel and copper, ensuring reliability and ease of installation without special tools.

Conclusion

The document highlights Katko's commitment to providing robust and versatile electrical components, with a focus on safety, durability, and ease of installation. The range of accessories and materials available ensures adaptability to various industrial needs.

Catalog excerpts

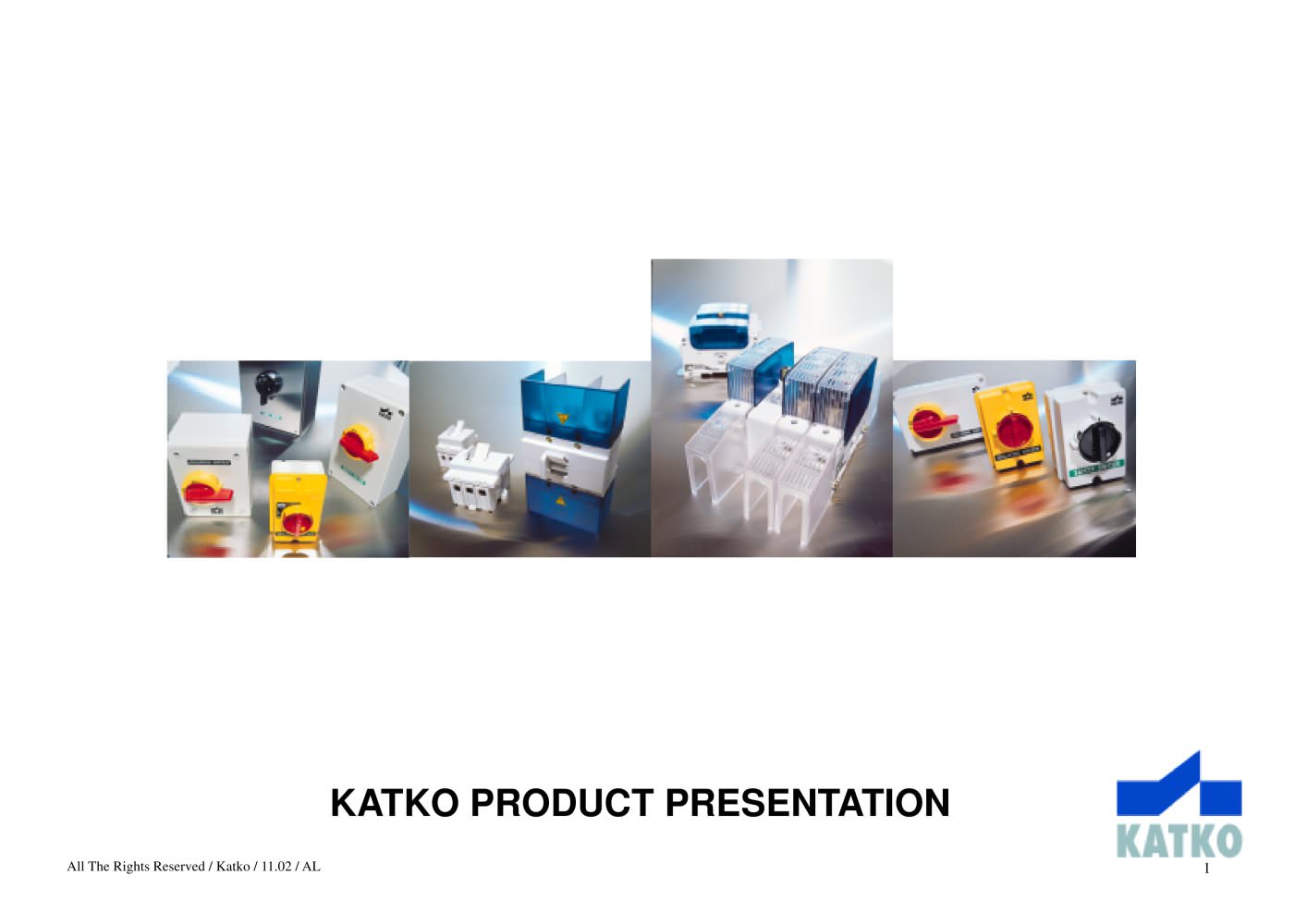

All The Rights Reserved / Katko / 11.02 / AL 1 >

Open the catalog to page 1

3- AND 4-POLE ROTARY SWITCHES KU 340N KU 440N > All The Rights Reserved / Katko / 11.02 / AL 2 size="-1">

Open the catalog to page 2

3- AND 4-POLE ROTARY SWITCHES VKA 3160N VKA 4160N > All The Rights Reserved / Katko / 11.02 / AL 3 size="-1">

Open the catalog to page 3

ALK-SPREADERS FOR 160A SWITCHES DIRECT HANDLE FOR KU AND VKA > VKA 4P + ALK 4160 VKA 3P + ALK 3160 > All The Rights Reserved / Katko / 11.02 / AL 5 size="-1">

Open the catalog to page 5

OKA DOOR MOUNTING ADAPTER VV. 1-0-2 CHANGE-OVER KIT > All The Rights Reserved / Katko / 11.02 / AL 6 size="-1">

Open the catalog to page 6

3-POLE TOGGLE SWITCHES AD1AD2AD3 KUE 340 +AD1+K/KUE EVA 3160+K/EVA KUE 340 KUE 340 + K/KUE > All The Rights Reserved / Katko / 11.02 / AL 7 size="-1">

Open the catalog to page 7

Terminal cover LS Partition wall VS Terminal cover LS Partition wall VS > All The Rights Reserved / Katko / 11.02 / AL 8 >

Open the catalog to page 8

3-POLE ROTARY SWITCHES NEW!! NEW!! NEW!! NEW!! > VKE 3250VKE 3400 Available 2003 All The Rights Reserved / Katko / 11.02 / AL 9 size="-2">

Open the catalog to page 9

3-AND 4-POLE SWITCHES KKV 332KKV 432ACCESSORIES AS IN KU-ROTARY SWITCHES > All The Rights Reserved / Katko / 11.02 / AL 10 size="-1">

Open the catalog to page 10

1-TO 4-POLE MODULAR SWITCH FUSES KVKE 3160(with DIN-fuse covers)KVKE 3125(with BS-fuse covers) ALL SWITCH FUSES HAVE FOUR BREAKING POINTS PER PHASE > All The Rights Reserved / Katko / 11.02 / AL 11 size="-1">

Open the catalog to page 11

1-TO 4-POLE MODULAR SWITCH FUSES KVKE-SWITCH FUSEWITH DIRECT HANDLE (SV11) AND KVKS-SWITCH FUSE WITH SIDE OPERATION KVKE 3125+SV11KVKS 3125 > All The Rights Reserved / Katko / 11.02 / AL 12 size="-1">

Open the catalog to page 12

1-TO 4-POLE MODULAR SWITCH FUSES KVKS/s -SWITCH FUSE WITH SIDE-OPERATION AND KVKS- SWITCH FUSE WITH DRIVE DIRECTION ADAPTER NEW!! KVKS 3125/sKVKS 3125/OSM(OSM=drive direction adapter) > All The Rights Reserved / Katko / 11.02 / AL 13 size="-1">

Open the catalog to page 13

1-TO 4-POLE MODULAR SWITCH FUSES > KVKE 3250 DINKVKE 3250 BS > All The Rights Reserved / Katko / 11.02 / AL 14 size="-1">

Open the catalog to page 14

KVKE 3400 DIN KVKE 3400 BS > All The Rights Reserved / Katko / 11.02 / AL 15 size="-1">

Open the catalog to page 15

HANDLESFUSE AND TERMINAL COVERSFOR KVKE/KVKS/KVKAUXILLIARY CONTACTSFOR KVKE/KVKS/KVK SS 125 BS SS 125 DIN LS 125 > LK 12 Y/R(125-160A) LK 13 Y/R(160-250A) LK 14 Y/R(250-800A) KVKE 1.V KVK 1.S > All The Rights Reserved / Katko / 11.02 / AL 16 size="-1">

Open the catalog to page 16

POLYCARBONATE ENCLOSURES KEM 310 Y/R KEM 625 Y/RKEM 3800 Y/RKEA 363 Y/R KEA 325 Y/R ALUMINIUM ENCLOSURES > All The Rights Reserved / Katko / 11.02 / AL 17 size="-1">

Open the catalog to page 17

SHEET STEEL ENCLOSURES > KET 325 Y/R KET 3400 Y/R ACID PROOF ENCLOSURES KER 316 Y/R(According to AISI 316 )ALSO AVAILABLEIN STAINLESS STEEL ENCLOSURES (According to AISI 304 ) > All The Rights Reserved / Katko / 11.02 / AL 18 size="-1">

Open the catalog to page 18

KATKO CABLE CONNECTORS FOR Al/CuCABLE SIZES 25mm > 2 to 300mm > 2 MADE OF STAINLESS STEEL AND RELIABLE COPPER. EASY TO INSTALL WITHOUT SPECIAL TOOLS. > KKL 1x50 KKL 1x50M FOR MCCB KKL 1x95TKKL 1x95R KKL 1x185KKL 1x300 All The Rights Reserved / Katko / 11.02 / AL 19 size="-2">

Open the catalog to page 19
