Enclosed switches 16-800A
41Pages

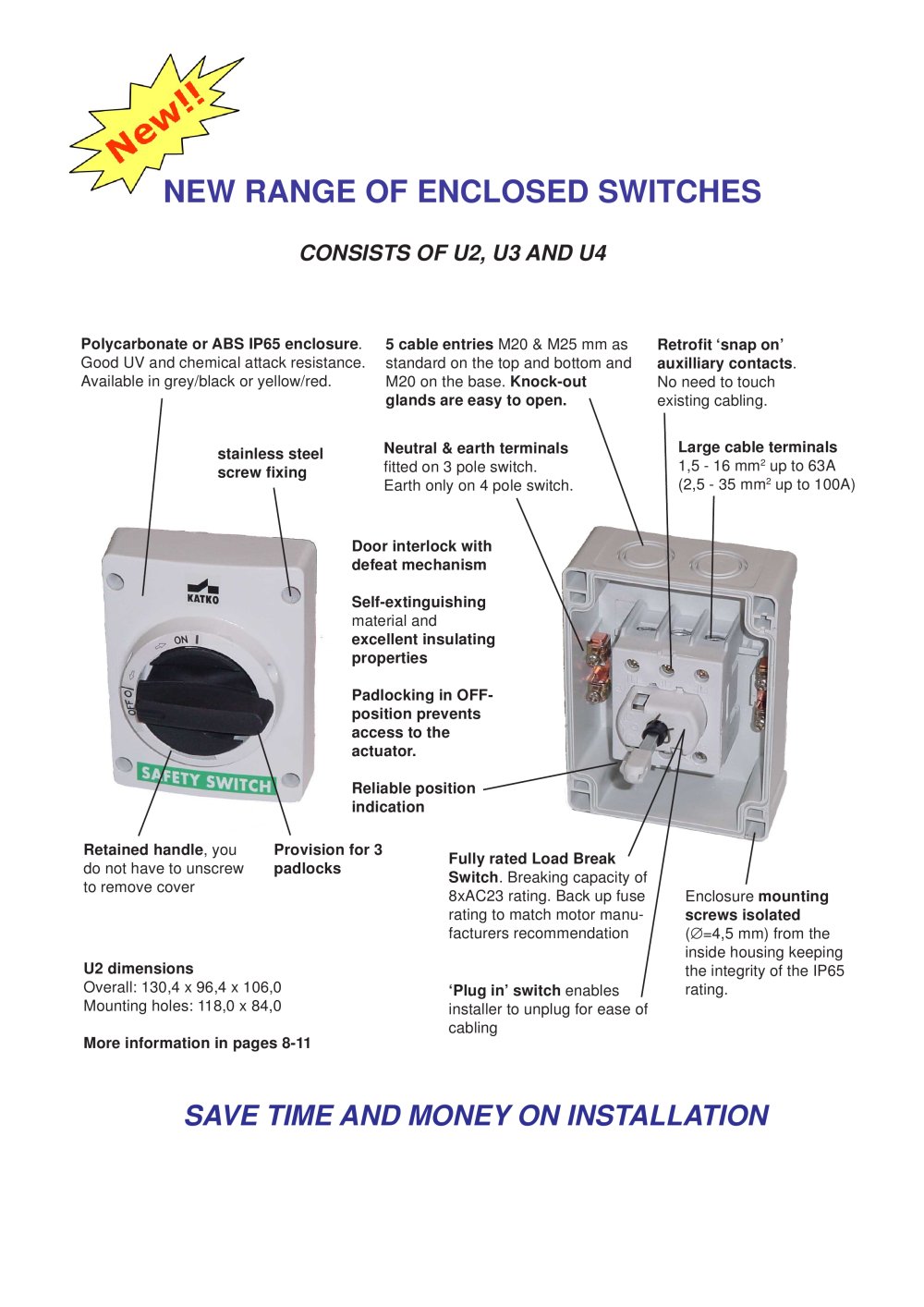

Polycarbonate or ABS IP65 enclosure .Good UV and chemical attack resistance. Available in grey/black or yellow/red. 5 cable entries M20 & M25 mm asstandard on the top and bottom and M20 on the base. Knock-outglands are easy to open.Large cable terminals Retrofit snap onђauxilliary contacts .No need to touch existing cabling. Neutral & earth terminals fitted on 3 pole switch. Earth only on 4 pole switch. 1,5 - 16 mm stainless steel screw fixing Provision for 3padlocks > 2 up to 63A(2,5 - 35 mm > 2 up to 100A) Door interlock with defeat mechanismSelf-extinguishing excellent insulatingpropertiesPadlocking in OFF-position prevents access to the actuator.Reliable positionindication material and Retained handle , youdo not have to unscrew to remove cover Fully rated Load Break Switch . Breaking capacity of8xAC23 rating. Back up fuse rating to match motor manu- facturers recommendation Plug inђ switch enablesinstaller to unplug for ease of cabling Enclosure ( ∅ =4,5 mm) from theinside housing keeping the integrity of the IP65 rating. mountingscrews isolated U2 dimensions Overall: 130,4 x 96,4 x 106,0 Mounting holes: 118,0 x 84,0 More information in pages 8-11 > 2Data subject to change without notice >

When Mr. Kauko Hyrylinen founded KATKO in 1941, one of his key targets was innovation in development of new products and production methods. The idea was that we should give our customers the best possible solutions to match their needs. Already at that time the goal of the company was to produce high quality products using the latest technology available and this is still our goal.KATKO ensures the quality of their products byusing independent and approved test houses to make sure that the products comply with current world wide standards.Since then our business has changed andincreased,...

SAFETY SWITCHES/ISOLATORS 5Technical data 16 - 800A 6Polycarbonate enclosed 8ABS enclosed 10Sheet steel enclosed12Aluminium enclosed15Stainless steel enclosed17EMC-protected20UL-listed21 > NEW! NEW! CHANGE-OVER SWITCHES 23 SWITCH FUSES 24Technical data 16 - 630A24Polycarbonate enclosed26Sheet steel enclosed28 BYPASS SWITCH for frequency inverter 30 FIREMAN/NEON SWITCH 31 MOTOR CONTROL (CAM) SWITCHES 31 ACCESSORIES 32 CABLE CONNECTORS 33 TERMINAL BLOCKS 34 CABLE GLANDS 37 CLASSIFICATIONS OF PROTECTION 41 IEC 60 947-3 ON SWITCHES 42 > 4Data subject to change without notice size="-1">

Rated insulation voltage U > i (V) 690 690 690690 690690 690690Rated thermal currentI > th (A) 25 6380 100125 160200Rated thermal currentI 40 > the (A) 2540 63 80 100125 160Rated operational currentI >

U2U3 U4MF11 / MF11 UL (solid) MF03MF04 > KNOCK-OUTS 25/32KNOCK-OUTؘ20 KNOCK-OUTS20/25 11Update your information from www.katko.com >

TTOO5TRO1 TRO2TRO3 TRO4 TRO6 14Data subject to change without notice >

H23H32 H02H03 H04 19Update your information from www.katko.com >

EAN-CodeEnclosureAC-21 / 400 VAC-22 / 400 VType WeightkgPolykarbonate enclosures (IP 66) >

The polycarbonate enclosed change-over switch consists of two KU or VKA switches which are connected by a change-over kit. For more details of non enclosed change-over switches, see Load Break Switch catalogue. IP 66, IP 65 ?Padlockable Y/R= Yellow/redG/B= Grey/black M33 > U2 MF11 > KNOCK-OUTS՘20/25 KNOCK-OUTS 25.5/32.5KNOCK-OUTSؘ20.5/25.5 23Update your information from www.katko.com >

?Product codes, e.g.KUM 616/316 VV.1-0-2 2xKU1.V TECHNICAL DATA Tested according to IEC 60 947-3 ?CB certificates ?R.M.S value 50kA ?IP 65 ?Padlockable Change over kit Nominal current, AC-23 3- 4- or 6-pole Enclosure material: M = Polycarbonate T = Sheet steel KU = Katko switchAuxilliary contacts ORDER CODES (polycarbonate enclosures) > AC-23 / 400 VTypeEANEnclosure 20 A 7.5 kWKUM 616/316 VV.1-0-2 2xKU1.V641941030166125 A 11 kWKUM 625/325 VV.1-0-2 2xKU1.V641941030205750 A 22 kWKUM 640/340 VV.1-0-2 2xKU1.V641941030245363 A 30 kWKUM 663/363 VV.1-0-2 2xKU1.V6419410302903MF11 EMC- protected...

?Terminals:Cu 1,5 - 6mm TECHNICAL DATA ?IEC 60 947-3 ?Rated thermal current (Ith) 40A ?IP 66, polycarbonate enclosure ?Padlockable > 2 ?Max. terminal torque1,8 Nm > TKM 325 TK Y/RY/R = Yellow/redEnclosure dimensions on page 11 AC-22 / 400 VAC-23 / 400 VAC-21 / 400 VEnclosureOrder TypeEAN-Code Switch Type Weightkg Star-Delta switchReverse switch TKM 325U TK641941034500940 A25 A20 A 11 kWTKM 325U TK Y/R6419410345016U20,5TKM 325U SK6419410345207TKM 325U SK Y/R6419410345214 CONNECTION DIAGRAMS > TKM 325 SK TKM 325 TK 31Update your information from www.katko.com size="-2">

KL 4x16/1 KL 2x16/2 KL 4x35/3 KL 1x50/1 KL 2x50/1KL 1x95/1KL 2x95/1 KL 1x120/1KL 2x120/1 KL 1x240/1 KL 2x240/1 35Update your information from www.katko.com >

DIMENSIONS > KL 2x240/1/R KL 1x300/1/R KL 1x240/1/R 36Data subject to change without notice size="-1">

ENLARGING FITTINGS KE-TH > TypeEAN Key size Height Thread pcs Weight mm mmmmkg/pc KE M12-16 TH 64194103614051815,05,0 1000,012KE M16-20 TH 64194103614122215,55,0 1000,013 KE M20-25 TH 64194103614292717,56,0 1000,022 KE M25-32 TH 64194103614363419,57,0 1000,024 KE M32-40 TH 64194103614434222,58,0 500,037 KE M40-50 TH 64194103614505227,58,0 500,074 KE M50-63 TH 64194103614676531,09,0 250,147 Material:Zink coated brass REDUCING FITTINGS KR-T > TypeEANDiameter Height Thread pcs Weight mm mm mmkg/pc KR M16-12 T 641941036076720,08,56,0 1000,007KR M20-12 T 641941036077424,09,06,5 1000,009 KR...

TypeEAN ThreadDiameterpcs Weight mm mmkg/pc KST M12 TT 64194103617025,016,01000,008KST M16 TT 64194103617196,020,01000,008 KST M20 TT 64194103617266,522,01000,014 KST M25 TT 64194103617337,028,01000,027 KST M32 TT 64194103617408,035,0500,041 KST M40 TT 64194103617578,045,0 500,056 KST M50 TT 64194103617649,055,0 250,130 KST M63 TT 641941036177110,068,0 100,189 > TypeEAN Key size Thickness pcs Weight mm mm kg/pc KVM M12 T 6419410359914152,8 1000,002KVM M16 T 6419410359921192,8 1000,003 KVM M20 T 6419410359938243,0 1000,005 KVM M25 T 6419410359945303,5 1000,009 KVM M32 T 6419410359952364,0...
