Introduction

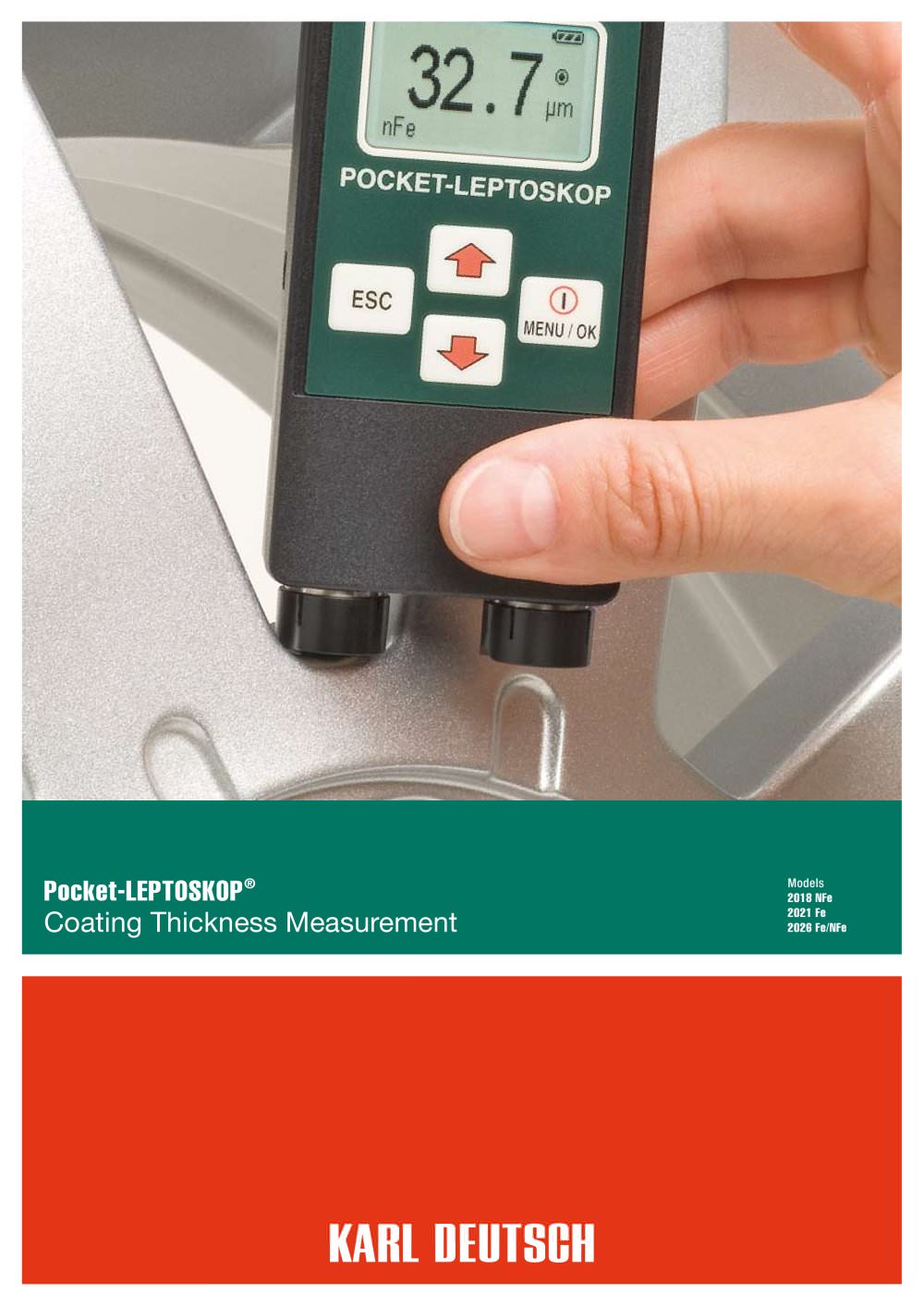

The Pocket-LEPTOSKOP is a versatile coating thickness gauge designed for ease of use and excellent readability, even in hard-to-access locations. It features a large illuminated flip display and is available in three models: 2018 NFe, 2021 Fe, and 2026 Fe/NFe.

Key Features

• Single-hand operation with quick measurement capabilities.
• Pre-calibrated for immediate use.
• Large, easy-to-read display with a flip function for overhead measurements.
• Integrated, spring-loaded probe.
• Multi-language support including German, English, French, Spanish, Italian, and Swedish.

Optional Features

• Data transfer to PC using STATWIN 2002 software.
• Statistics & Data Memory module for storing up to 800 readings and performing statistical analysis.

Model Specifications

• Pocket-LEPTOSKOP 2018 NFe: Measures coatings on non-magnetic metals using the eddy current method (DIN EN ISO 2360).
• Pocket-LEPTOSKOP 2021 Fe: Measures coatings on iron and steel using the magnetic inductive method (DIN EN ISO 2178).
• Pocket-LEPTOSKOP 2026 Fe/NFe: Combined probe for all metallic substrates with automatic substrate detection.

Technical Data

• Display size: 25 mm x 16 mm, illuminated.
• Measuring ranges: NFe (0-1200 µm), Fe (0-3000 µm).
• Calibration: Zero and foil calibration with mean calculation.
• Measurement uncertainty: Varies by coating thickness.
• Interface: RS 232.
• Measurement units: µm, mm, inch, mil.
• Battery: 1 alkali/manganese battery, 70 hours life without illumination.
• Size/weight: 46 mm x 95 mm x 16 mm, 70 g.

Ordering Information

• Each model comes with a battery, calibration foils, reference block, operating manual, quality certificate, and equipment case.
• Software and data packages are available for enhanced functionality.
