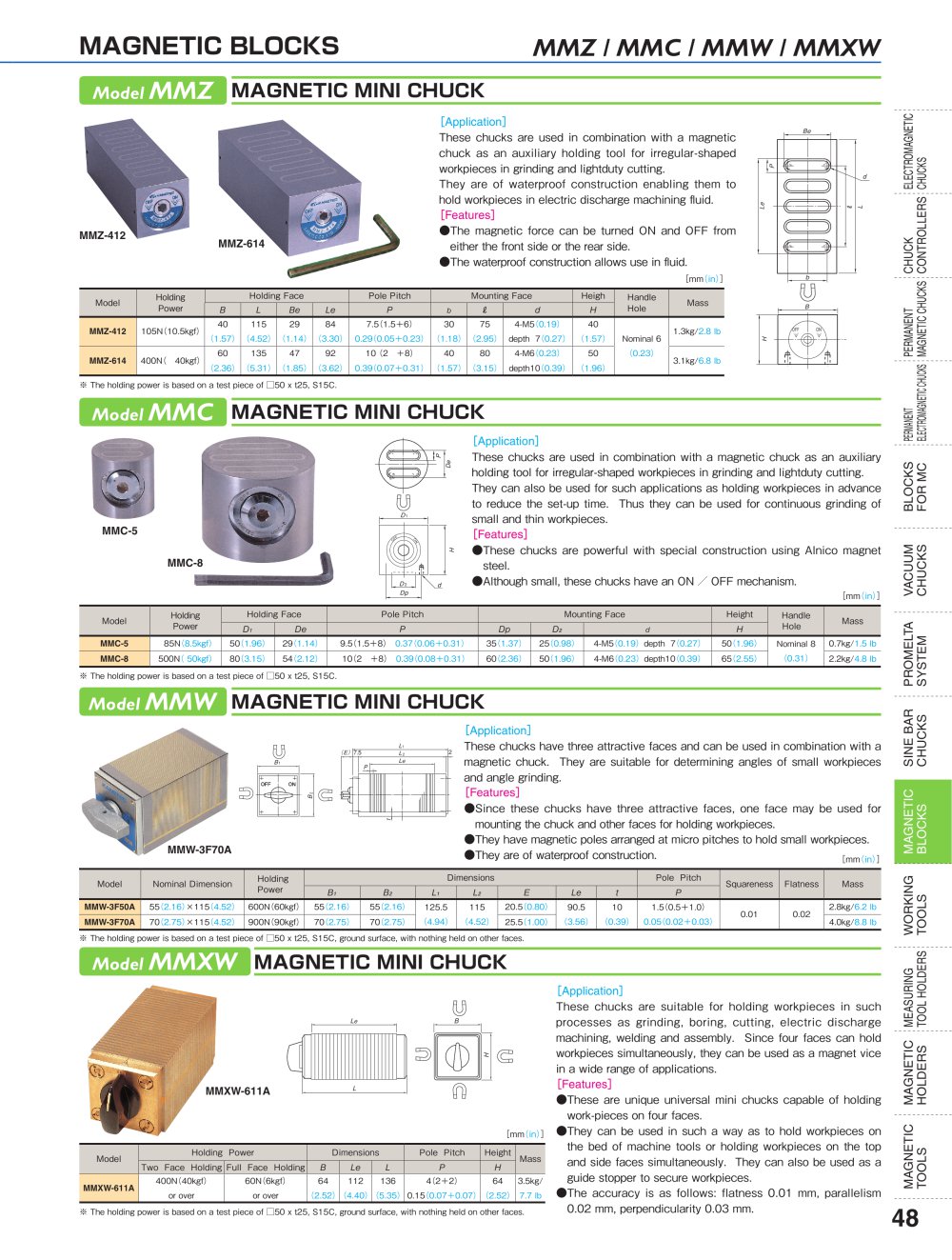

MAGNETIC BLOCKS MAGNETIC MINI CHUCK These chucks are used in combination with a magnetic chuck as an auxiliary holding tool for irregular-shaped workpieces in grinding and lightduty cutting. They are of waterproof construction enabling them to hold workpieces in electric discharge machining fluid. •The magnetic force can be turned ON and OFF from either the front side or the rear side. •The waterproof construction allows use in fluid. • The holding power is based on a test piece of D50 x t25, S15C ground surface, with nothing held on other faces These chucks are suitable for holding workpieces in such processes as grinding, boring, cutting, electric discharge machining, welding and assembly. Since four faces can hold workpieces simultaneously, they can be used as a magnet vice in a wide range of applications. •These are unique universal mini chucks capable of holding work-pieces on four faces. •They can be used in such a way as to hold workpieces on the bed of machine tools or holding workpieces on the top and side faces simultaneously. They can also be used as a guide stopper to secure workpieces. •The accuracy is as follows: flatness 0.01 mm, parallelism

Open the catalog to page 1

{^MAGNETIC BLOCKS BLOCK WITH 2 ATTRACTIVE FACES FOR SMALL SIZE WORK PIECES The strongest type of block is provided with 2 faces attractive face. It can be used for processing from grinding to milling, holding work during various measuring, assembling work. •The strongest attractive force among small permanent magnet type. Furthermore, by making pole pitch thinner, its power is concentrated to attract small and thin work pieces. It is effective for relatively larger work pieces or attracting the whole face, too. •The upper and bottom magnetic face can be changed independently. It can be set...

Open the catalog to page 2

WMFfiXfH SWITCHABLE PERMANENT MAGNTIC HOLDER suitable as exclusive fixing jig for round steel of extra-ordinary shape of work pieces! In addition to using it as a fixing device for small work pieces, it can be used as a block to support 3 parts of a work piece during grinding. •Holes can be made down to 10mm additionally on each face. (Except the face for on/ off operation and rear face) •By using it as exclusive jig to a particular work piece, working performance is improved. •Due to its drip-proof structure, it can be used in liquid such as ED processing. Faces where additional (upper,...

Open the catalog to page 3

{^MAGNETIC BLOCKS SQUARE TYPE BLOCK Holding tools for marking and lightduty machining. Holding tools for electric discharge machining and wire cutting. Holding tools for three-dimensional measuring instruments and various measuring systems. •Workpieces can be held on three faces of top (V face) and both side faces. •On/Off lever is detachable. ( length of each opposite side of hexagonal hole is 8mm ) •They are of waterproof and oilproof const-ruction. •An M8 tapped hole is provided on the top for •Super high accuracy finish is also available. Please contact us. [mm(in)]

Open the catalog to page 4

MAGNETIC V-HOLDER Holding tools for round bar marking, drilling, tapping and grinding of irregular-shaped workpieces. Holding tools for electric discharge machining and wire cutting. Holding tools for three-dimensional measuring instruments and various measuring systems. •Workpieces can be held on the top face (V face), bottom face, and rear •T-handle ON/OFF switch comes attached, but can be removed. •They are of waterproof and oilproof construction. •Super high accuracy finish is also available. Please contact us.

Open the catalog to page 5

{^MAGNETIC BLOCKS MAGNETIC V-HOLDER It is to be used to fix such extra-ordinary shape work pieces under grinding, light milling for making holes and tapping. •The strong magnetic force works three faces of upper, bottom, edge ( or, shorter side) by special structure. •It can be used for inspection work. Standard and special class accuracy are •As on/off operation of magnetic force can be easily done by switching lever. i^When high accracy is required, select "special" accuracy models. Kin case the value of accuracy , which is not mentioned in the above table, please request us. ■The...

Open the catalog to page 6

KVS I KMVI KMV-M I KT KTVIMV MAGNETIC MINI V-BLOCK These blocks are used to hold small diameter round bars on optical measuring equipment. (Non-waterproof type) •One set consists of two blocks. The attractive faces and other working faces have been machined accurately. The blocks can be turned ON and OFF by 90" turning using a screwdriver on the back. SMn cose of additional process, please inquire of us. MINI V-ADAPTER This product itself is not magnetic, but when it is placed on a V-Holder having the N pole and S pole on separate sides like Model KVA, it induces magnetism to hold small...
