KANE250 Combustion Meter

KANE250 Combustion Meter

Product catalog summary

Overview: The KANE 250 is an affordable combustion analyser that maintains high performance and features. It is user-friendly with a unique rotary switch for quick operation.

Key Features:

Measures O2, CO, CO2, CO/CO2 ratio, and efficiency.
Supports multiple fuel types.
Equipped with professional quality sensors for CO readings down to 1ppm.
Includes a detachable flue probe and real-time clock.
Infra-red output available for optional printer connection.
Comes with a rubber sleeve featuring an integral magnet.
Complies with BS7927 standards.

Specifications:

Temperature Measurement:
- Flue Temperature: Resolution of 1°C/F, accuracy of ±2°C (5°F), range 0-600°C (32-1112°F).
- Inlet Temperature: Resolution of 1°C/F, accuracy of ±1°C/F, range 0-100°C (32-212°F).
- Nett Temperature: Resolution of 1°C/F, accuracy of ±2°C (5°F), range 0-600°C (32-1112°F).
Gas Measurement:
- Oxygen: Resolution of 0.1%, accuracy of ±0.2%, range 0-21%.
- Carbon Monoxide: Resolution of 1ppm, accuracy of ±10ppm <100ppm, range 0-1,000ppm.
- Carbon Dioxide: Resolution of 0.1%, accuracy of ±0.3% reading, range 0-30%.
- Efficiency: Resolution of 0.1%, accuracy of ±1.0% reading, range 0-99.9%.
- Excess Air: Resolution of 0.1%, accuracy of ±0.2%, range 0-250%.
- CO/CO2 Ratio: Resolution of 0.0001, accuracy of ±5% reading, range 0-0.9999.
Pre-programmed Fuels: Natural gas, Light Oil (28/35 sec), Propane, Butane, LPG.

Physical Characteristics:

Weight: 1kg (2.2lb).
Handset Dimensions: 200mm x 45mm x 90mm.
Probe: 300mm length with a 6mm diameter, stainless steel shaft, type K thermocouple, and 3m neoprene hose.
Operating Temperature: 0 to +40°C (32°F to 104°F), 10% to 90% RH non-condensing.
Battery Life: 4 AA cells, typically 12 hours with Alkaline AA cells.
Optional Charger: Input 110Vac/220 Vac, NiMH batteries recommended.

Included Accessories: Each unit comes with a flue probe, batteries, rubber sleeve with magnet, and instruction manual.

Optional Accessories: Soft carry case, infra-red printer, NiMH rechargeable batteries, and charger.

Contact Information: Kane International Ltd., Kane House, Swallowfield, Welwyn Garden City, Hertfordshire AL7 1JG, Tel: +44 (0)1707 375550, Fax: +44 (0)1707 393277, Email: [email protected], Website: www.kane.co.uk

Catalog excerpts

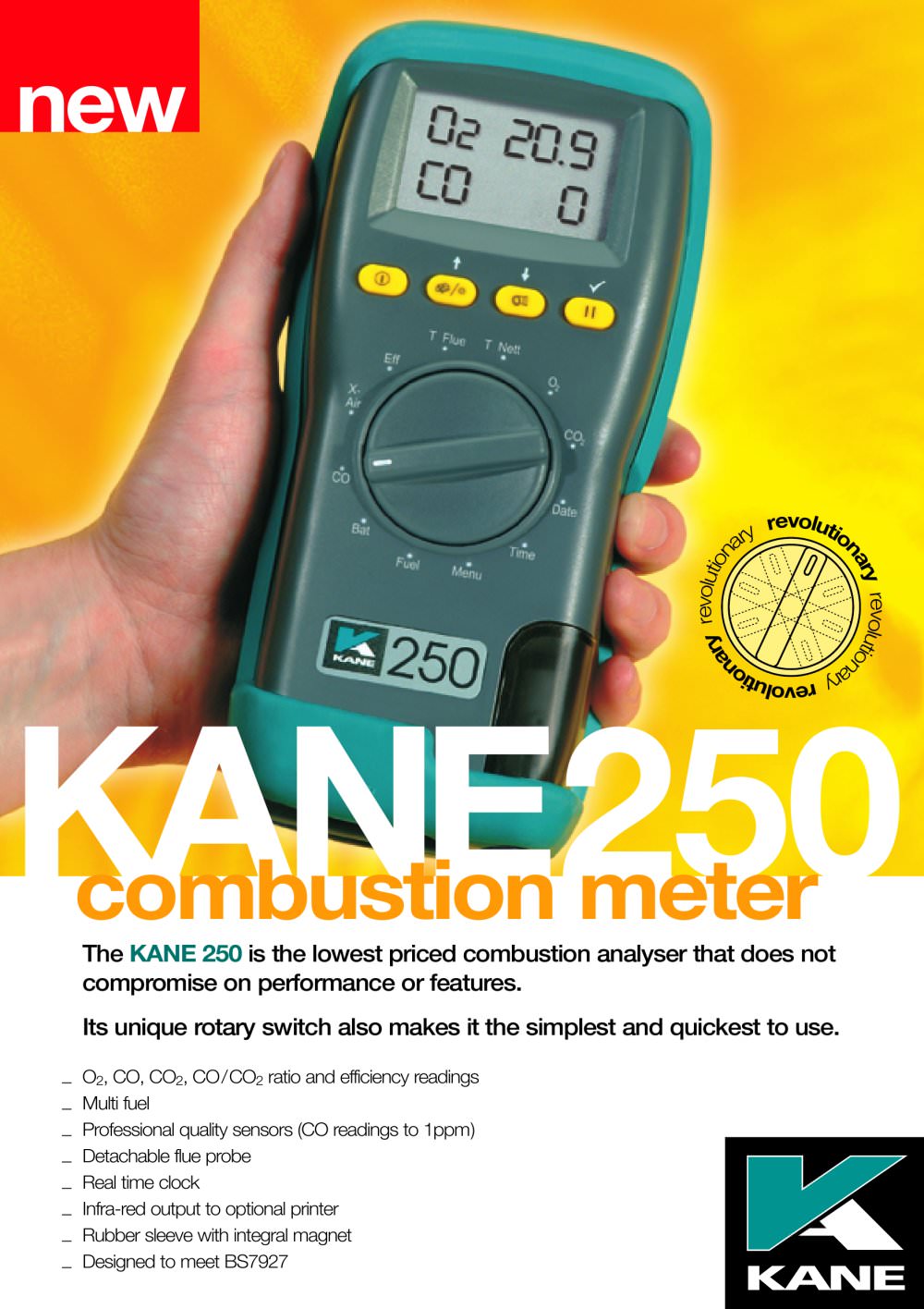

_ O > 2 , CO, CO > 2 , CO/CO > 2 ratio and efficiency readings _ Multi fuel _ Professional quality sensors (CO readings to 1ppm) _ Detachable flue probe _ Real time clock _ Infra-red output to optional printer _ Rubber sleeve with integral magnet _ Designed to meet BS7927 >

Open the catalog to page 1

ParameterResolutionAccuracyRangeTemp Measurement Flue Temperature1C/Fб2C (5аF) 0 - 600C б0.3% reading32 - 1112FInlet Temperature1аC/F1ѰC/F 0 - 100C(Internal Sensor)б0.3% reading32 - 212FTemp (Nett) * > 2 1аC/F2ѰC (5F) 0 - 600аC 0.3% reading32 - 1112ѰF Gas Measurement Oxygen0.1%0.2%* > 1 - 21%Carbon Monoxide1ppm ѱ10ppm <100ppm* > 1 - 1,000ppm5% of reading 4000 ppm max for 15 minutesCarbon Dioxide* > 2 0.1%ѱ0.3% reading0 - 30%Efficiency* > 2 0.1%1.0% reading0 - 99.9%Excess Air* > 2 0.1%ѱ0.2%0 - 250%CO/CO > 2 ratio* > 2 0.00015% reading 0 - 0.9999 Pre-programmed Fuels Natural gas, Light Oil(28/35...

Open the catalog to page 2
