Kane International
KANE100-1 Indoor Air Quality Analyser

KANE100-1 Indoor Air Quality Analyser

Product catalog summary

Overview: The document provides detailed information about the KANE100-1 handheld gas analyser, which measures and logs ambient carbon monoxide (CO) and carbon dioxide (CO2) levels. It is designed to ensure the safe operation of flueless gas appliances and to check indoor air quality (IAQ).

Specifications: The KANE100-1 analyser measures CO up to 1,000 ppm using an electrochemical sensor and CO2 up to 10,000 ppm using an NDIR infra-red sensor. It features a rotary dial, large backlit display, rechargeable NiMH batteries, and a memory facility that stores up to 255 sets of readings. The device is suitable for use in homes, offices, factories, schools, and commercial kitchens.

Features: The analyser includes user-adjustable alarms for CO and CO2, an internal pump for fast measurements, and a long sampling hose for silent sampling. It can print results via an optional infra-red printer and comes with a protective rubber sleeve, sampling probe, and carry case.

Technical Specifications: The device weighs 1 kg and has dimensions of 200mm x 45mm x 90mm. It operates within a temperature range of 0ºC to 45ºC and has a battery life of 6 hours from a full charge. The battery charger input is 100 - 240 V ac, and the output is 10V dc at 800 mA.

Accuracy and Resolution: For CO, the resolution is 1 ppm with an accuracy of ±5 ppm for measurements below 100 ppm, ±5% for measurements above 100 ppm, and ±10% for measurements above 1,000 ppm. For CO2, the resolution is 1 ppm with an accuracy of ±20 ppm for measurements below 400 ppm, ±5% for measurements below 4,000 ppm, and ±10% for measurements above 4,000 ppm.

Applications: The analyser is crucial for detecting CO spillage from boilers, measuring CO2 levels to ensure effective building ventilation, and monitoring emissions from various appliances to prevent IAQ problems.

CO2 and CO Exposure Limits: The document includes tables outlining the effects of various concentrations of CO2 and CO, highlighting the importance of maintaining safe levels to prevent health issues.

Warranty and Company Information: Kane International Limited offers a 12-month warranty on their products, which are designed to monitor and optimize energy usage and emissions. The company reserves the right to change product specifications without prior notice.

Catalog excerpts

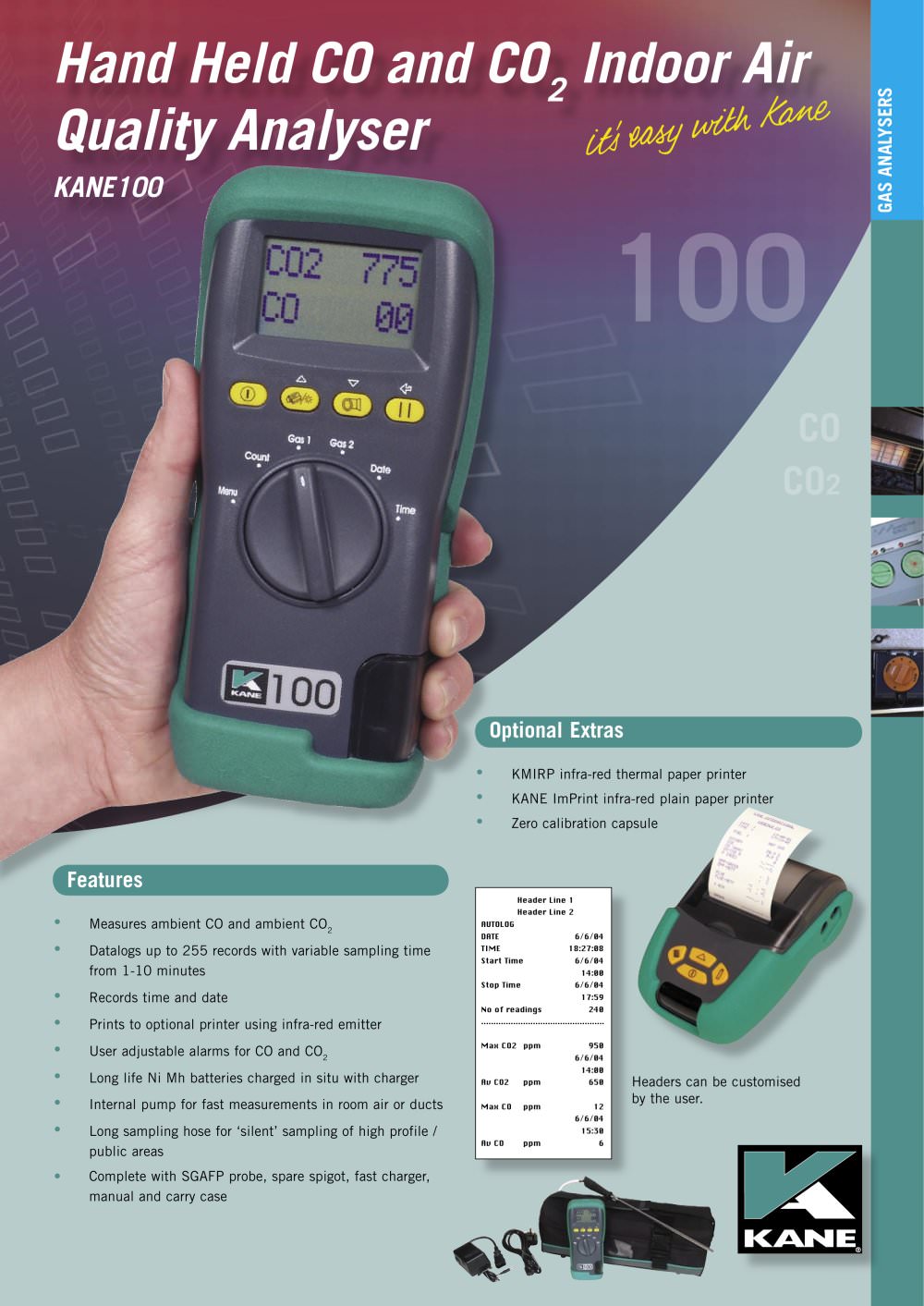

KANE100-1 Indoor Air Quality Analyser -1

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:13.00pt "Arial", sans-serif; } .font3 { font:15.00pt "Arial", sans-serif; } .font4 { font:27.00pt "Arial", sans-serif; } .font5 { font:30.00pt "Arial", sans-serif; } .font6 { font:8.00pt "Georgia", serif; } .font7 { font:72.00pt "Microsoft Sans Serif", sans-serif; } Hand Held CO and C02 Indoor Air Quality Analyser vtiwy^^ KANEWO Optional Extras 100 KMIRP infra-red thermal paper printer KANE ImPrint infra-red plain paper printer Zro calibration capsule Header Line 1 Header Line 2 AUTOLOG DATE 6/6/04 TIME 18:27:08 Start Time 6/6/04 14:00 Stop Time 6/6/04 17:59 No of readings 240 Max CO2 ppm 950 6/6/04 14:00 Av CO2 ppm 650 Max CO ppm 12 6/6/04 15:30 Av CO ppm 6 Features Measures ambient CO and ambient C02 Datalogs up to 255 records with variable sampling time from 1-10 minutes Records time and date Prints to optional printer using infra-red emitter User adjustable alarms for CO and C02 Long life Ni Mh batteries charged in situ with charger Internai pump for fast measurements in room air or ducts Long sampling hose for 'silent' sampling of high profile / public areas Complte with SGAFP probe, spare spigot, fast charger, manual and carry case Headers can be customised by the user.

Open the catalog to page 1

KANE100-1 Indoor Air Quality Analyser -2

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial", sans-serif; } .font3 { font:10.00pt "Arial", sans-serif; } .font4 { font:12.00pt "Arial", sans-serif; } .font5 { font:14.00pt "Arial", sans-serif; } .font6 { font:7.00pt "Georgia", serif; } .font7 { font:11.00pt "Lucida Sans Unicode", sans-serif; } Technical Spcifications KANE100 NEW Ambient CO and CO2 Analyser The KANE100-1 handheld gas analyser measures and logs ambient carbon monoxide (CO) and carbon dioxide (CO2) levels. It...

Open the catalog to page 2
