Kane International
DL49 Digital Clamp-on Multimeter

DL49 Digital Clamp-on Multimeter

Product catalog summary

Overview: The DL49 Digital Clamp-On Meter is designed for HVAC/R technicians, electricians, and plant maintenance professionals. It is compact, easy to carry, and includes a carrying case with a belt clip. The meter is capable of measuring AC and DC amps and features a range of digital multimeter (DMM) capabilities.

Key Features:

Measures up to 400 Amps AC/DC and 600 Volts AC/DC.
Rated IEC CAT III 600 Volts AC/DC for safety.
Resistance measurement capability up to 40 Megohms.
Continuity tone activates at less than 50 Ohms.
Autoranging and peak hold for AC clamp current.
Data hold and low battery indicator.
Auto power-off feature to conserve battery life.
1 mV DC resolution allows use with DMM adapters.
UL listed and CE registered, ensuring compliance with safety standards.
Three-year limited warranty.

Specifications:

Ohms: Ranges from 400 Ohms to 40 Megohms with varying resolutions and accuracies.
Volts AC: Ranges from 4V to 600V with resolutions from 1 mV to 1V and accuracy of ±(1.5% +3 Digits).
Volts DC: Ranges from 4V to 600V with resolutions from 1 mV to 1V and accuracy of ±(0.9% +2 Digits).
Amps AC: Ranges from 40A to 400A with resolutions from 0.01A to 0.1A and accuracy of ±(2% +5 Digits) to ±(3% +10 Digits).
Amps DC: Ranges from 40A to 400A with resolutions from 0.01A to 0.1A and accuracy of ±(2.5% +10 Digits) to ±(1.5% +5 Digits).

Physical and Environmental Specifications:

Dimensions: 7.68” x 3.06” x 1.79” (195 x 77 x 46 mm).
Operating Temperature: 32˚ to 113˚F (0˚ to 45˚C).
Storage Temperature: -4˚ to 140˚F (-20˚ to 60˚C).
Relative Humidity: 0 to 80% RH for storage and use.
Weight: 13 oz. (370 grams).
Battery: 9 Volt Alkaline.
Annual calibration recommended.

Contact Information: Distributed by UEi with contact numbers for the USA, Canada, and Europe provided for customer support and inquiries.

Catalog excerpts

S > All inputs, ranges and functions protected to 600V CAT III!Includes test leads and carrying case with belt clipFeatures Include:ҕ 400 Amps AC/DC 600 Volts AC/DCՕ IEC CAT III 600 Volts AC/DC Resistance to 40 MegohmsՕ Continuity tone sounds at < 50 AutorangingՕ AC Amps peak hold 1 mV DC resolution allows use of DMM adapters size="-1">

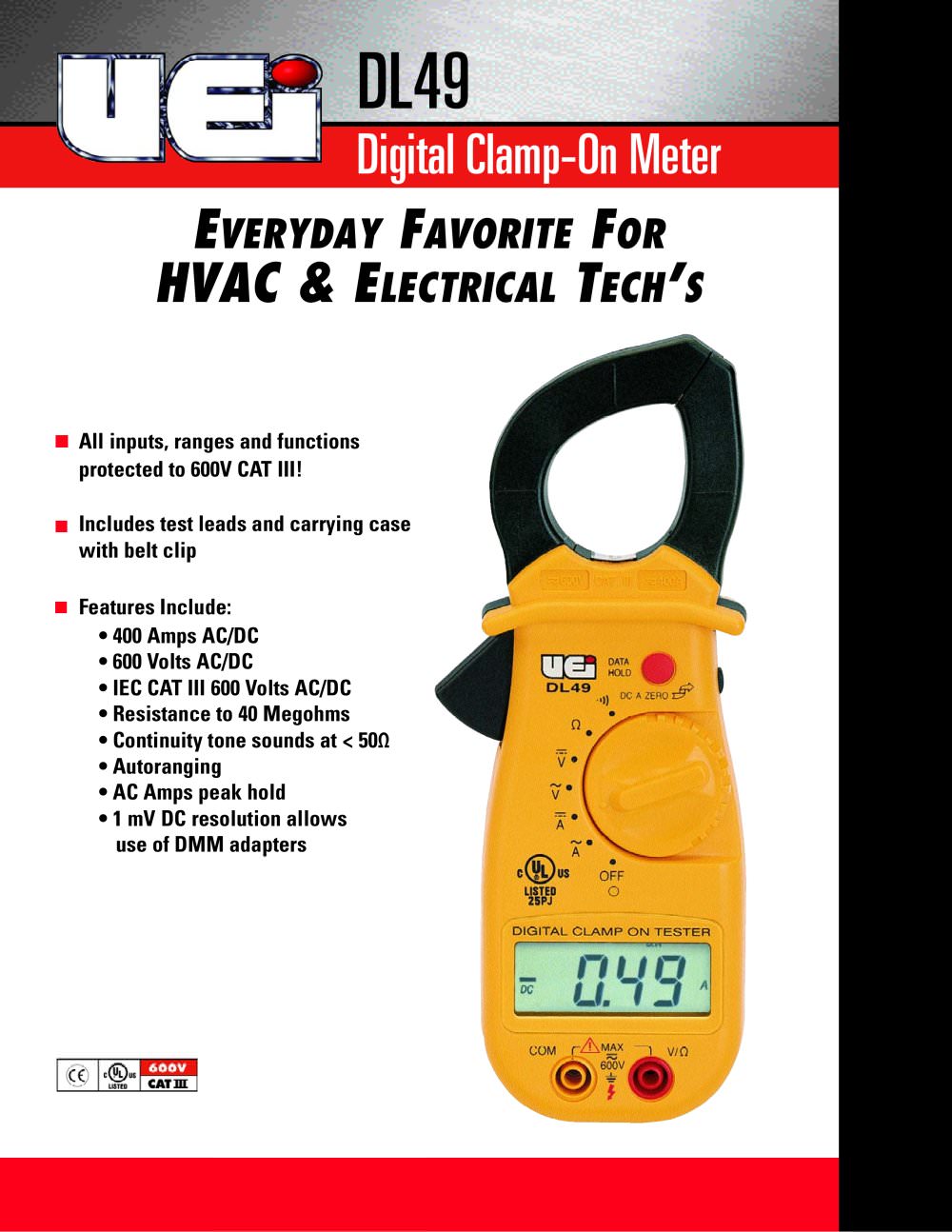

Open the catalog to page 1

Size (H x W x D)7.68 x 3.06Ԕ x 1. 79 (195 x 77 x 46 mm)O p e rating Te m p e ra t u r e32ԋ to 113ڋF (0ڋ to 45ڋC)S t o rage Te m p e ra t u r e-4ڋ to 140ڋF (-20ڋ to 60ڋC) Relative Humidity (Storage & Use)0 to 80% RH We i g h t13 oz. (370 Gra m s ) C a l i b ration ScheduleA n n u a l UL Listing3111 - 1IEC Std.1010-1 (CAT III 600 Volts, 400 Amps)B a t t e ry9 Volt Alkaline (NEDA, 1604, 6F22, or 06P) Test Le a d sUEi Part # AT L 55 H o l s t e rUEi Part # AC 259 > 1-800-547-5740 ѕ Fax: (503) 643-6322www.ueitest.com Email: [email protected] IN CANADA > PLEASERECYCLE Vancouver: Phone: 1-877-475-0648...

Open the catalog to page 2
