4 & 5 GAS: Auto 4-1 & 5-1 Hand Held Analyser OIML Class 1

Product catalog summary

Overview: The document provides detailed information about the Kane Auto 4-1 and 5-1 series handheld gas analyzers, designed for emissions diagnostics, tuning, and regulated testing. These devices are compliant with OIML R99 Class 1 standards and are suitable for measuring various gases including CO, HC, O2, CO2, and NOx.

Specifications: The analyzers measure CO, HC, O2, CO2, and Lambda (or AFR), with the option to upgrade to NOx measurement. They feature a fast warm-up time, high output pump, and can measure RPM and oil temperature. The devices are PC compatible for data upload and analysis.

Features: Key features include a protective rubber sleeve, water trap and filter, laptop-style carry case, mains adapter/battery charger, 12V adapter cable, high-temperature probe, RPM clamp, oil probe, and manual. Optional extras include an infrared printer and PC software.

Technical Specifications: The analyzers have specified ranges and accuracies for each gas type, with CO ranging from 0-10%, HC from 0-5,000 PPM, O2 from 0-21%, CO2 from 0-16%, and NOx from 0-5,000 PPM. They also measure oil temperature and RPM.

Product Selection: The document outlines the differences between the AUTO 4-1 and AUTO 5-1 models, both of which are OIML R99 Class 1 certified. They are equipped with NDIR benches for CO/CO2/HC measurement and electro-chemical cells for O2/NO.

Software and Accessories: The analyzers come with pre-programmed language options, emission tests, auto store and data logging capabilities, and upgradeable firmware. Accessories include a high-temperature probe, RPM inductive clamp, and oil temperature probe.

Warranty and Support: Kane products are warranted worldwide against defects in materials or manufacturing. The company emphasizes continuous product development and improvement.

Conclusion: The Kane Auto 4-1 and 5-1 series analyzers are portable, user-friendly devices that provide accurate emissions measurements, making them ideal for automotive diagnostics and testing.

Catalog excerpts

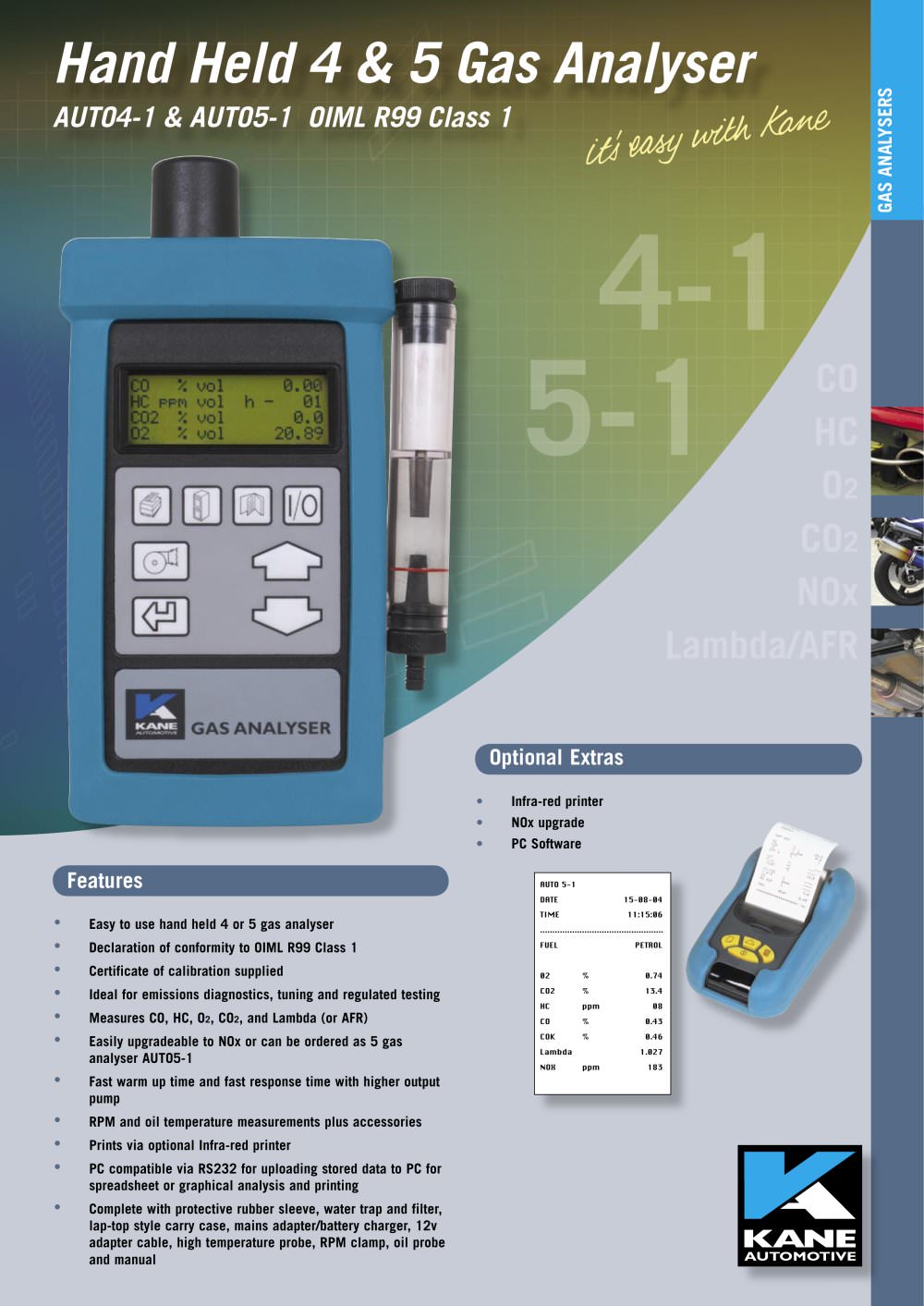

4 & 5 GAS: Auto 4-1 & 5-1 Hand Held Analyser OIML Class 1-1

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:13.00pt "Arial", sans-serif; } .font3 { font:15.00pt "Arial", sans-serif; } .font4 { font:25.00pt "Arial", sans-serif; } .font5 { font:30.00pt "Arial", sans-serif; } .font6 { font:8.00pt "Georgia", serif; } Hand Held 4 & 5 Gas Analyser AUT04-1 & AUT05-1 OIML R99 Class 1 u Jfa<, Infra-red printer NOx upgrade PC Software HUTO 5-1 DATE TIME 15-08-04 11:15:06 FUEL PETROL 02 % 0.74 CO2 % 13.4 HC ppm 08 CO % 0.43 COK % 0.46 Lambda 1.027 NOK ppm 183 Features Easy to use hand held 4 or 5 gas analyser Déclaration of conformity to OIML R99 Class 1 Certificate of calibration supplied Idal for missions diagnostics, tuning and regulated testing Measures CO, HC, O2, CO2, and Lambda (or AFR) Easily upgradeable to NOx or can be ordered as 5 gas analyser AUT05-1 Fast warm up time and fast response time with higher output pump RPM and oil temp驩rature measurements plus accessories Prints via optional Infra-red printer PC compatible via RS232 for uploading stored data to PC for spreadsheet or graphical analysis and printing Complte with protective rubber sleeve, water trap and filter, lap-top style carry case, mains adapter/battery charger, 12v adapter cable, high temprature probe, RPM clamp, oil probe and manual

Open the catalog to page 1

4 & 5 GAS: Auto 4-1 & 5-1 Hand Held Analyser OIML Class 1-2

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:8.00pt "Arial", sans-serif; } .font4 { font:12.00pt "Arial", sans-serif; } .font5 { font:9.00pt "Franklin Gothic Medium", sans-serif; } .font6 { font:5.00pt "Georgia", serif; } .font7 { font:8.00pt "Georgia", serif; } .font8 { font:24.00pt "Impact", sans-serif; } .font9 { font:5.00pt "Microsoft Sans Serif", sans-serif; } Technical Spcifications AUT04-1 & AUT05-1 Specified Range Over Range Accuracy*1...

Open the catalog to page 2

4 & 5 GAS: Auto 4-1 & 5-1 Hand Held Analyser OIML Class 1-3

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } KANE AUTO 4 & 5 SERIES Product Slection OIML R99 CLASS 1 NON CLASS 1 Pre-Compliance Kit Rf驩rence AUTO 5-1 AUTO 4- AUTO 5-2 AUT04-2 Hardware OIML R99 Class 1 Certificate Class 1 Accurate Class 1 Accurate Measured Gases n Using NDIR Bench CO/C02/HC CO/C02/HC C0/C02/HC C0/C02/HC Using Electro-Chemical Cells 02/NO 02 02/NO 02 Corrected CO (COK) ✓ ✓ ✓ ✓ Lambda & AFR ✓ ✓ ✓ ✓ Power Supply: Intern. Battery/Mains/12V ✓ ✓ ✓ ✓ Measures RPM: 2, 4 Stroke, DIS, 2-12 Cyl....
