Kane International
1, 2 & 3 GAS: Hand Held Single Gas Analyser

1, 2 & 3 GAS: Hand Held Single Gas Analyser

Product catalog summary

Overview: The document describes the Kane Auto 1-Series handheld exhaust gas analysers, designed for measuring Carbon Monoxide (CO), Nitric Oxides (NOx), or Oxygen (O2). These devices are portable, robust, and easy to operate, providing accurate and efficient exhaust gas monitoring.

Specifications: The analysers are equipped with long-life sensors and pumps, featuring a compact design. They come with a hose, probe, clamp, water trap, filter, 12V adapter cable, AA batteries, spare filters, protective boot, and carry case. The devices are powered by 4 AA cells or a 12V adapter cable, with a battery life of 6 hours without backlight. The sensor life is approximately 2 years under normal use.

Technical Specifications:

Auto1-02: Measures Oxygen (O2) with a range of 0-21%, resolution of 0.1%, and accuracy of ±0.2%.
Auto1-CO: Measures Carbon Monoxide (CO) with a range of 0-10%, resolution of 0.001%, and accuracy of ±5% of reading.
Auto1-NOx: Measures Nitric Oxides (NOx) with a range of 0-5000PPM, resolution of 1PPM, and accuracy of ±5% of reading.

The devices operate at temperatures between 0 to 40˚C and humidity levels of 10% to 90% non-condensing. They have a pump flow rate of 700mL/minute and dimensions of 220 x 120 x 55mm, weighing 590g including batteries.

Features: The analysers are designed for use in workshops, road tests, or rolling roads, providing a cost-effective alternative to fixed systems. They assist in fault finding and confirm engine setup parameters, ensuring the correct operation of catalytic converters and engine management systems. The devices are easy to use, eliminating the need for expensive equipment during unplanned tests.

Warranty and Support: Kane products are warranted from the date of purchase, covering defects in materials or manufacturing. Kane International specializes in electronic instruments for monitoring energy usage and emissions, continuously developing and improving their products.

Recommendations: For road tests and checking vehicles on rolling roads, always use a high-temperature probe. The analysers provide a low-cost solution for adding the "5th" gas to existing systems or for CO analysis and air leak detection.

Catalog excerpts

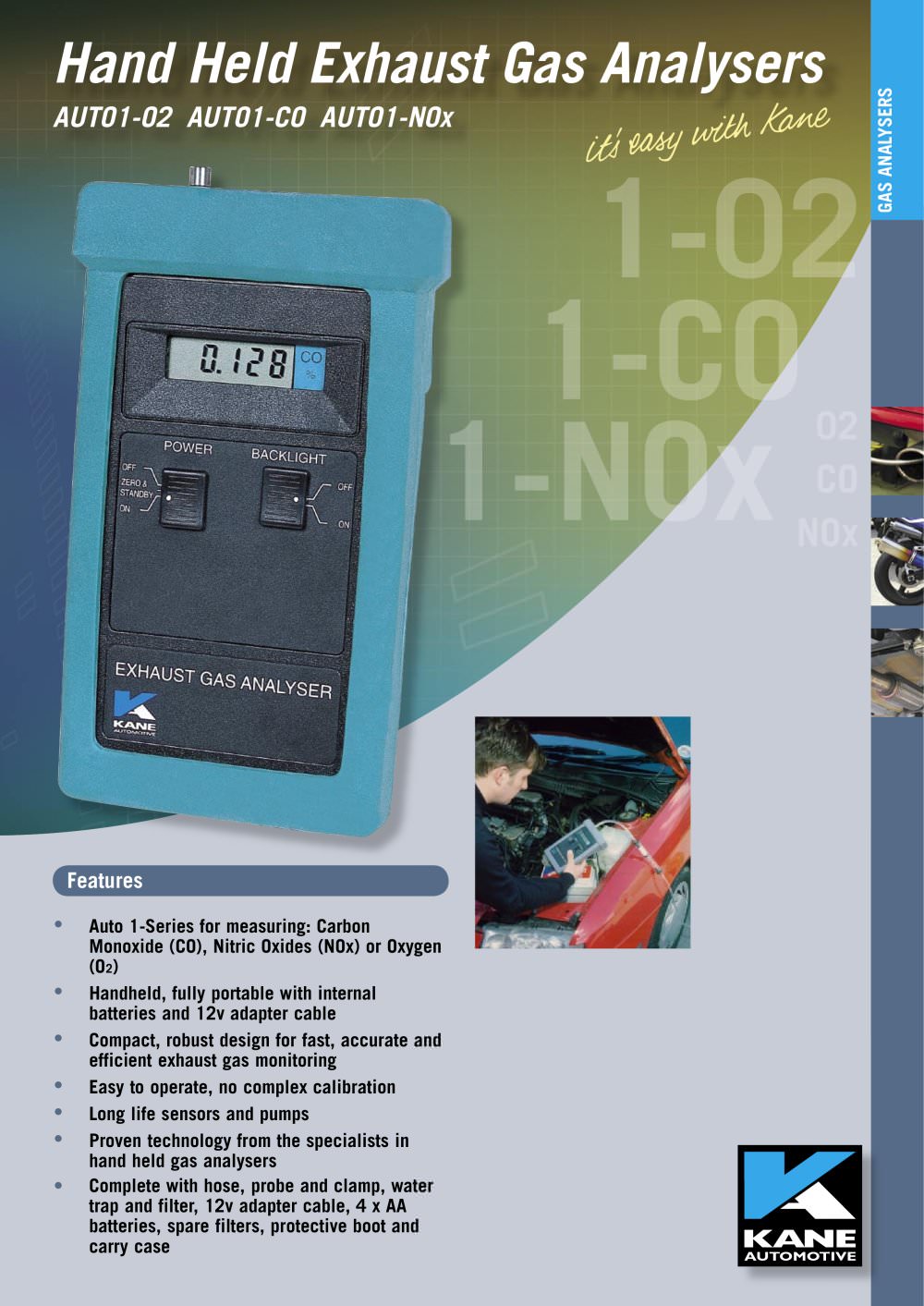

1, 2 & 3 GAS: Hand Held Single Gas Analyser -1

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:10.00pt "Arial", sans-serif; } (02) * Handheld, fully portable with internai batteries and 12v adapter cable * Compact, robust design for fast, accurate and efficient exhaust gas monitoring * Easy to operate, no complex calibration * Long life sensors and pumps * Proven technology from the specialists in hand held gas analysers * Complte with hose, probe and clamp, water trap and filter, 12v adapter cable, 4 x AA batteries, spare filters, protective boot and carry case

Open the catalog to page 1

1, 2 & 3 GAS: Hand Held Single Gas Analyser -2

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial", sans-serif; } .font3 { font:15.00pt "Arial", sans-serif; } .font4 { font:9.00pt "Franklin Gothic Medium", sans-serif; } .font5 { font:8.00pt "Georgia", serif; } .font6 { font:24.00pt "Impact", sans-serif; } .font7 { font:11.00pt "Lucida Sans Unicode", sans-serif; } Technical Spcifications AUT01-02, AUT01-C0 & AUT01-N0x Auto1-02 Auto1-C0 Auto1-N0x GAS Oxygen Carbon Monoxide Nitric Oxides RANGE 0-21% 0-10% 0-5000PPM RESOLUTION 0.1%...

Open the catalog to page 2
