  3. ULTRA-LOW TEMPERATURE CHAMBER (- 90 °C …+ 80 °C)

ULTRA-LOW TEMPERATURE CHAMBER (- 90 °C …+ 80 °C)

ULTRA-LOW TEMPERATURE CHAMBER (- 90 °C …+ 80 °C)
1 / 6 PagesView full catalog

ULTRA-LOW TEMPERATURE CHAMBER (- 90 °C …+ 80 °C)

Product catalog summary
Overview: The document provides detailed specifications and features of the Kambič TK-190 ULT Ultra-Low Temperature Chamber, designed for precise temperature control and testing applications.
Specifications:
  • Temperature Range: -90°C to +80°C
  • External Dimensions: 835 x 1721 x 1188 mm
  • Internal Dimensions: 610 x 585 x 510 mm
  • Volume: Approximately 182 liters
  • Heat Up Rate: 2.2°C/min
  • Cool Down Rate: 1.5°C/min
  • Temperature Stability: ±1.0°C at -90°C, ±0.2°C at -40°C, ±0.1°C at +50°C and +80°C
  • Temperature Uniformity: ±1.2°C at -90°C and -40°C, ±0.5°C at +50°C and +80°C
  • Power Supply: 3x400V 50/60Hz, 6000W
  • Noise Level: 67 dBA at 1 m distance
  • Weight: 440 kg
Features:
  • 7-inch capacitive touch screen controller with Ethernet and USB ports
  • Advanced settings options and user-friendly interface
  • Extensive heat insulation and double silicone door seal for tightness
  • Heavy-duty closing mechanism with key lock
  • Height adjustable stainless steel wire shelves
  • Full maintenance access to refrigeration system
  • Heavy-duty swivel wheels with brakes for easy manipulation
Controller Functions:
  • Real-time data graphing and full process history overview
  • Virtual control panel for complete remote control
  • KK-Tool software for PC included for enhanced control and monitoring
Ordering Information:
  • Temperature Chamber TK-190 ULT: Part no. 1234
  • Additional Shelves and Access Ports available
  • Evaluation reports available for performance verification
Applications: Suitable for material temperature resistance testing, sample conditioning, data logger calibration, and stress tests.
See more

Catalog excerpts

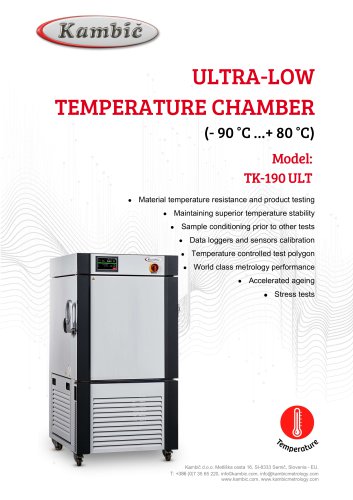

ULTRA-LOW TEMPERATURE CHAMBER (- 90 °C …+ 80 °C)-1

ULTRA-LOW TEMPERATURE CHAMBER (- 90 °C …+ 80 °C) Model: TK-190 ULT  Material temperature resistance and product testing  Maintaining superior temperature stability  Sample conditioning prior to other tests  Data loggers and sensors calibration  Temperature controlled test polygon  World class metrology performance  Accelerated ageing Kambič d.o.o. Metliška cesta 16, SI-8333 Semič, Slovenia - EU, T: +386 (0)7 35 65 220, info©kambic.com, [email protected] www.kambic.com, ww

 Open the catalog to page 1
ULTRA-LOW TEMPERATURE CHAMBER (- 90 °C …+ 80 °C)-2

Fan for internal air circulation with speed control 7'' capacitive touch screen controller with user friendly interface, advance settings options, Ethernet and USB communication ports 2 level over temp. protection: 1. 5°C over set point heating disabled 2. 10°C above max. temp mechanical shut off Extensive heat insulation shield on all chamber sides and door Access port with both end plugs 050 mm (On left side) Door sealed with double soft profile silicone seal to ensure perfect tightness Adjustable stainless steel wire shelves Heavy duty swivel wheels with brake for simple manipulation Full...

 Open the catalog to page 2
ULTRA-LOW TEMPERATURE CHAMBER (- 90 °C …+ 80 °C)-3

Touch display with advanced controller functions: Actual measured quantities in the chamber Network status icon Controller with a 7-inch capacitive touch screen File View Settings Graph Zoom LCD-Keyboard Help Read time draw to graph* Function keys for viewing manipulation of the graph Real time data drawn to graph Full process history overview Kambic d.o.o. Metliska cesta 16, SI-8333 Semic, Slovenia - EU, T: +386 (0)7 35 65 220, info©kambic.com, [email protected] www.kambic.com,www.kambicmetrology.com

 Open the catalog to page 3
ULTRA-LOW TEMPERATURE CHAMBER (- 90 °C …+ 80 °C)-4

CRD - Controlled ramp down Kambic d.o.o. Metliska cesta 16, SI-8333 Semic, Slovenia - EU, T: +386 (0)7 35 65 220, info©kambic.com, [email protected] www.kambic.com,www.kambicmetrology.com

 Open the catalog to page 4
ULTRA-LOW TEMPERATURE CHAMBER (- 90 °C …+ 80 °C)-5

External dimensions (WxHxD) [mm] Internal dimensions (WxHxD) [mm] Heat up rate [°C/min] (according to EN 60068-3-5) Cool down rate [°C/min] (according to EN 60068-3-5) Temperature display res [°C] Temperature set res. [°C] Temperature control Power supply Wattage [W] Max capacity [kg] Observation window Access port [mm] Noise [dBA] @ 1 m distance Weight [kg] As standard 0 50 (left side) 67 440 *All performance in controlled environment (Tambient = 20 °C ± 3 °C)! *Accessories might affect performance! Kambic d.o.o. Metliska cesta 16, SI-8333 Semic, Slovenia - EU, T: +386 (0)7 35 65 220, info©kambic.com,...

 Open the catalog to page 5
ULTRA-LOW TEMPERATURE CHAMBER (- 90 °C …+ 80 °C)-6

Ordering information and accessories *Accessories might affect performance! Kambic d.o.o. Metliska cesta 16, SI-8333 Semic, Slovenia - EU, T: +386 (0)7 35 65 220, info©kambic.com, [email protected] www.kambic.com,www.kambicmetrology.com

 Open the catalog to page 6

All Kambic d.o.o. catalogs and technical brochures

  1. KK-500 CHLTUF
    KK-500 CHLTUF

    4  Pages

  2. MICRO CALIBRATION BATHS
    MICRO CALIBRATION BATHS

    6  Pages

  3. PASS BOX
    PASS BOX

    3  Pages

  4. PLANT GROWTH CHAMBER
    PLANT GROWTH CHAMBER

    7  Pages

  5. Walk-in Climatic Chambers
    Walk-in Climatic Chambers

    5  Pages

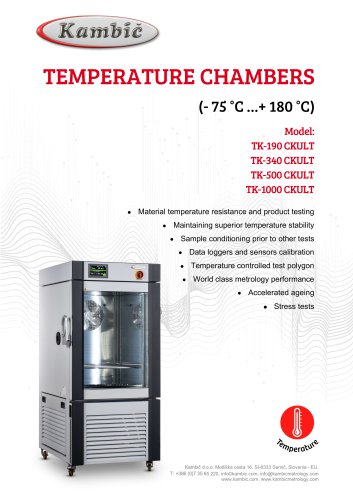

  6. TEMPERATURE CHAMBERS (- 75 °C …+ 180 °C)
    TEMPERATURE CHAMBERS (- 75 °C …+ 180 °C)

    9  Pages

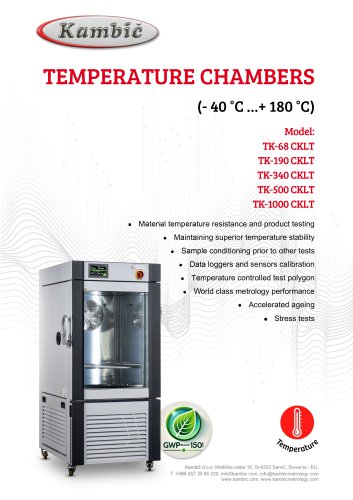

  7. TEMPERATURE CHAMBERS (- 40 °C …+ 180 °C)
    TEMPERATURE CHAMBERS (- 40 °C …+ 180 °C)

    10  Pages

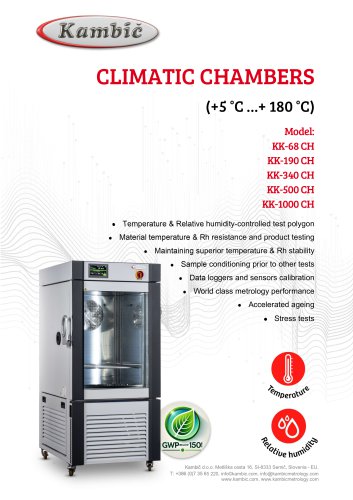

  8. CLIMATIC CHAMBERS (+5 °C …+ 180 °C)
    CLIMATIC CHAMBERS (+5 °C …+ 180 °C)

    10  Pages

  9. Kambic Metrology equipment - general catalog
    Kambic Metrology equipment - general catalog

    36  Pages

  10. Ultra low temperature (- 75 °C …+ 180 °C)
    Ultra low temperature (- 75 °C …+ 180 °C)

    9  Pages

  11. KK-8000 CHLT
    KK-8000 CHLT

    3  Pages

  12. Low temperature (- 40 °C …+ 180 °C)
    Low temperature (- 40 °C …+ 180 °C)

    10  Pages

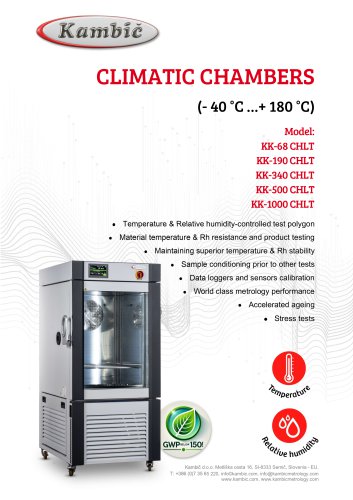

  13. CLIMATIC CHAMBER (- 40 °C …+ 180 °C)
    CLIMATIC CHAMBER (- 40 °C …+ 180 °C)

    10  Pages

  14. Standard (+ 5 °C …+ 180 °C)
    Standard (+ 5 °C …+ 180 °C)

    10  Pages

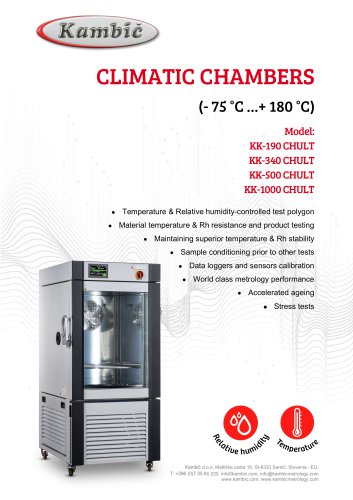

  15. CLIMATIC CHAMBER (- 75 °C …+ 180 °C)
    CLIMATIC CHAMBER (- 75 °C …+ 180 °C)

    9  Pages

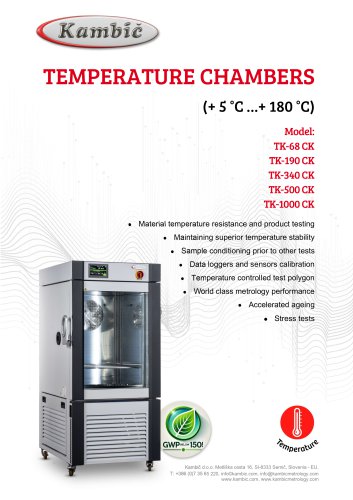

  16. TEMPERATURE CHAMBER (+ 5 °C …+ 180 °C)
