MICRO CALIBRATION BATHS
MICRO CALIBRATION BATHS
Kambič d.o.o. offers portable calibration baths designed for metrology performance. These devices utilize a conventional compressor-based refrigeration system to ensure uniformity and stability in the millikelvin (mK) range. The baths are designed for easy transportation and can calibrate sensors directly in fluid, featuring a unique vertical flow design for optimal heat transfer.
Models:
- OBM: Temperature range from +35°C to +220°C.
- OBM-LT: Temperature range from -35°C to +130°C.
Device Description:
The calibration baths are constructed with stainless steel AISI 304 for all interior and wetted parts, and powder-coated aluminum for the exterior. They include a 7-inch capacitive touch screen controller with Ethernet and USB communication ports, offering a user-friendly interface and advanced settings options.
Accessories:
Accessories include a cooling air exhaust, tank drain valve, stirring assembly, adjustable multiple probe fixture, and a transportation case. The working chamber has a capacity of approximately 2 liters with dimensions of 80 x 80 mm and an immersion depth of 290 mm.
Technical Data:
- Dimensions: External dimensions are 225 x 685 x 330 mm; internal dimensions are 80 x 290 x 80 mm.
- Volume: Approximately 4 liters.
- Temperature Display Resolution: 0.001°C.
- Temperature Set Resolution: 0.01°C.
- Temperature Stability: Varies by temperature, e.g., ±0.002°C at +50°C.
- Temperature Uniformity: ±0.01°C at +100°C for OBM and ±0.01°C at 0°C for OBM-LT.
- Heating and Cooling Rates: Heating rate is approximately 20 minutes from +20°C to +100°C. Cooling rate for OBM-LT is approximately 60 minutes from +20°C to -35°C.
- Power Supply: 230 V 50/60 Hz (±10%).
- Wattage: 300 W for OBM and 650 W for OBM-LT.
- Weight: Approximately 19 kg for OBM and 23 kg for OBM-LT.
Ordering Information:
Part numbers are provided for each model and accessory, including evaluation reports and silicone oil fluids for different temperature ranges.
Catalog excerpts

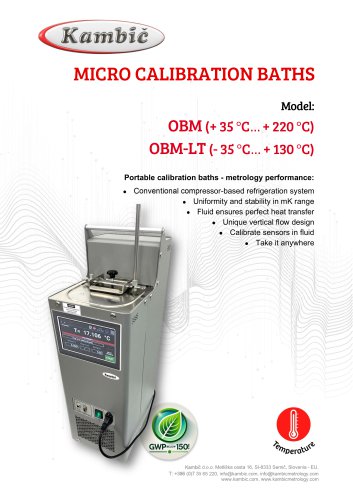

MICRO CALIBRATION BATHS Model: OBM (+ 35 °C… + 220 °C) OBM-LT (- 35 °C… + 130 °C) Portable calibration baths - metrology performance: Conventional compressor-based refrigeration system Uniformity and stability in mK range Fluid ensures perfect heat transfer Unique vertical flow design Calibrate sensors in fluid Take it anywhere Kambič d.o.o. Metliška cesta 16, SI-8333 Semič, Slovenia - EU, T: +386 (0)7 35 65 220, [email protected], [email protected] www.kambic.com, www
Open the catalog to page 1
working chamber transportation cap 7'' capacitive touch screen controller with user friendly interface, advance settings options Ethernet and USB communication ports All interior and wetted parts in stainless steel AISI 304 Ethernet & USB communication port Rubber switch All exterior in powder coated Aluminum Power cord connection Kambic d.o.o. Metliska cesta 16, SI-8333 Semic, Slovenia - EU, T: +386 (0)7 35 65 220, [email protected], [email protected] www.kambic.com,www.kambicmetrology.com
Open the catalog to page 2
Stirring assembly ~ 2 L working chamber, 80 x 80 mm with immersion depth 290 mm. Tank drain valve Adjustable multiple probe fixture Vertical fixture and clip on holder Transportation case Kambič d.o.o. Metliška cesta 16, SI-8333 Semič, Slovenia - EU, T: +386 (0)7 35 65 220, [email protected], [email protected] www.kambic.com, www.kambicmetrology.com
Open the catalog to page 3
Touch display with advanced controller functions: Operation status icons Actual measured fluid temperature in bath Network status icon Home button Menu button Status information Edit program Controller with a 7-inch capacitive touch screen Program setup information Stop temperature control OB-Tool software for PC (free – included with every unit): Virtual control panel - Complete remote control of the unit Function keys for viewing manipulation of the graph Real time data drawn to graph Full process history overview Kambič d.o.o. Metliška cesta 16, SI-8333 Semič, Slovenia - EU, T: +386 (0)7 35...
Open the catalog to page 4
OBM-LT External dimensions (WxHxD) in mm Internal dimensions (WxHxD) in mm Volume (L) Temperature range (°C) Temperature display resolution (°C) Temperature set resolution (°C) Heating rate Cooling rate Temperature Control Noise level [dBA] Power supply Wattage [W] Interface Weight [kg] *All performance data with fluid KDC 200.50 *All performance in controlled environment (Tambient = 22 °C ± 3 °C)! *Accessories might affect performance! Ordering information and accessories: ~ 4 Compressor Cooling System Kambic d.o.o. Metliska cesta 16, SI-8333 Semic, Slovenia - EU, T: +386 (0)7 35 65 220, [email protected],...
Open the catalog to page 5
Kambič d.o.o. Metliška cesta 16, SI-8333 Semič, Slovenia - EU, T: +386 (0)7 35 65 220, [email protected], [email protected] www.kambic.com, www.kambicmetrology.com
Open the catalog to page 6All Kambic d.o.o. catalogs and technical brochures
KK-500 CHLTUF4 Pages

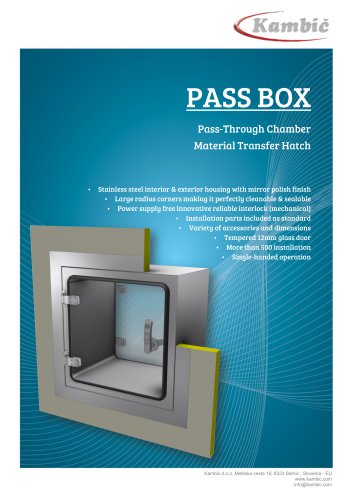

PASS BOX3 Pages

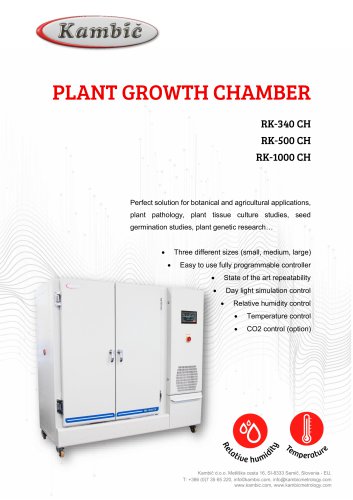

PLANT GROWTH CHAMBER7 Pages

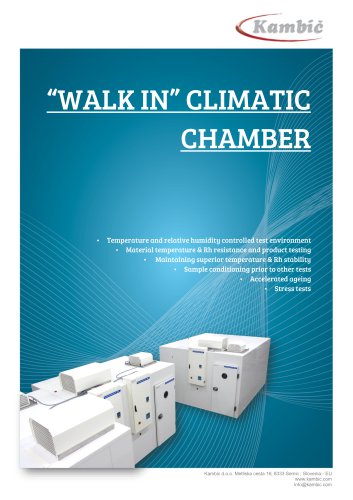

Walk-in Climatic Chambers5 Pages
