KK-500 CHLTUF

KK-500 CHLTUF
1 / 4 PagesView full catalog

KK-500 CHLTUF

Product catalog summary
Overview: The document is a case study from March 2018 by Kambič d.o.o., Slovenia, detailing the specifications and features of the 'Ultra-Fast' Climatic Chamber, model KK-500 CHLTUF.
Key Features:
  • Ultra-fast cool down rate of 12.5°C/min as per EN 60068-3-5 standards.
  • High heat compensation capacity of 5 kW at -30°C.
  • Air-cooled single-stage refrigeration system.
  • Overhanging chamber design with access points for heavy-duty table integration.
Device Specifications:
  • Digital PID temperature and Rh control with mixed flow Rh control.
  • Extended Rh range down to 10°C/10% Rh.
  • Forced convection with fan and all stainless steel interior.
  • Exterior made of galvanized and powder-coated steel RAL-7035.
  • Optional heated observation window with LED illumination.
Technical Data:
  • External dimensions: 1870 mm x 2225 mm x 1957 mm.
  • Internal dimensions: 870 mm x 800 mm x 870 mm, with a volume of ~600 L.
  • Temperature range: -40°C to +180°C; with Rh control: +5°C to +95°C.
  • Relative humidity range: 10% to 95% Rh.
  • Temperature stability and uniformity as per EN 60068-3-5 standards.
  • Cool-down rate: ~12.5°C/min; Heat-up rate: ~8°C/min.
  • Power supply: 3x400 V / 50 Hz / 31 A, with a wattage of 32000 W.
  • Weight: ~2000 kg including heavy-duty table.
Design and Construction:
  • All-round edges interior design for safety and efficiency.
  • Extensive heat insulation shield on all chamber sides and doors.
  • Interface: RS 232 for connectivity.
Conclusion: The KK-500 CHLTUF climatic chamber is designed for ultra-fast cooling and precise environmental control, making it suitable for rigorous testing and research applications.
See more

Catalog excerpts

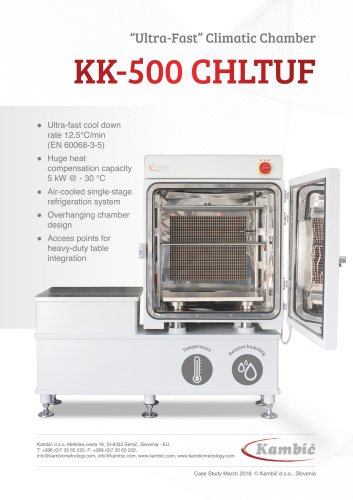

KK-500 CHLTUF-1

“Ultra-Fast” Climatic Chamber KK-500 CHLTUF ●● Ultra-fast cool down rate 12.5°C/min (EN 60068-3-5) ●● Huge heat compensation capacity 5 kW @ - 30 °C ●● Air-cooled single-stage refrigeration system ●● Overhanging chamber design ●● Access points for heavy-duty table integration Kambič d.o.o. Metliška cesta 16, SI-8333 Semič, Slovenia - EU, T: +386 (0)7 35 65 220, F: +386 (0)7 35 65 232, [email protected], [email protected], www.kambic.com, www.kambicmetrology.com Case Study March 2018.

 Open the catalog to page 1
KK-500 CHLTUF-2

“Ultra-Fast” Climatic Chamber Model: KK-500 CHLTUF Device Specifications: • Digital PID temperature control • Digital PID Rh control • Mixed flow Rh control • Extended Rh range even down to 10 °C / 10% Rh • Forced convection with fan • All round edges interior design • All stainless steel interior • All exterior in galvanized and powder coated steel RAL-7035 • Extensive heat insulation shield on all chamber sides and doors • Optional heated observation window with chamber LED illumination Kambič d.o.o. Metliška cesta 16, SI-8333 Semič, Slovenia - EU, T: +386 (0)7 35 65 220, F: +386 (0)7 35 65...

 Open the catalog to page 2
KK-500 CHLTUF-3

Ultra-Fast” Climatic Chamber Model: KK-500 CHLTUF KK-500 CHLTUF External dimensions (WxDxH) Internal dimensions (WxDxH) Volume 1870 mm x 2225 mm x 1957 mm (including heavy duty table) 870 mm x 800 mm x 870 mm ~ 600 L Temperature range Temperature range with Rh control Relative humidity range Temperature set and display resolution RH set and display resolution Cool-down rate (EN 60068-3-5) Heat-up rate (EN 60068-3-5) Heat compensation Temperature control Temperature probe Relative humidity probe Air circulation PIP PT-100 capacitive forced with fans Cooling _Heating Humidity Door Power supply...

 Open the catalog to page 3
KK-500 CHLTUF-4

“Ultra-Fast” Climatic Chamber Model: KK-500 CHLTUF Dopustni odstopki za netolerirane mere 6 ±0.1 Merilo: Material: KK-500 CHLT F   KK-500 CHLT F Številka risbe: Gregor Hutar D:\Moji dokumenti\Inventor\[818] KK-500 CHLT F z mizo\Gabariti - brez mize.idw    Gregor Hutar KK-500 CHLT F Številka risbe: D:\Moji dokumenti\Inventor\[818] KK-500 CHLT F z mizo\Gabariti.idw

 Open the catalog to page 4
