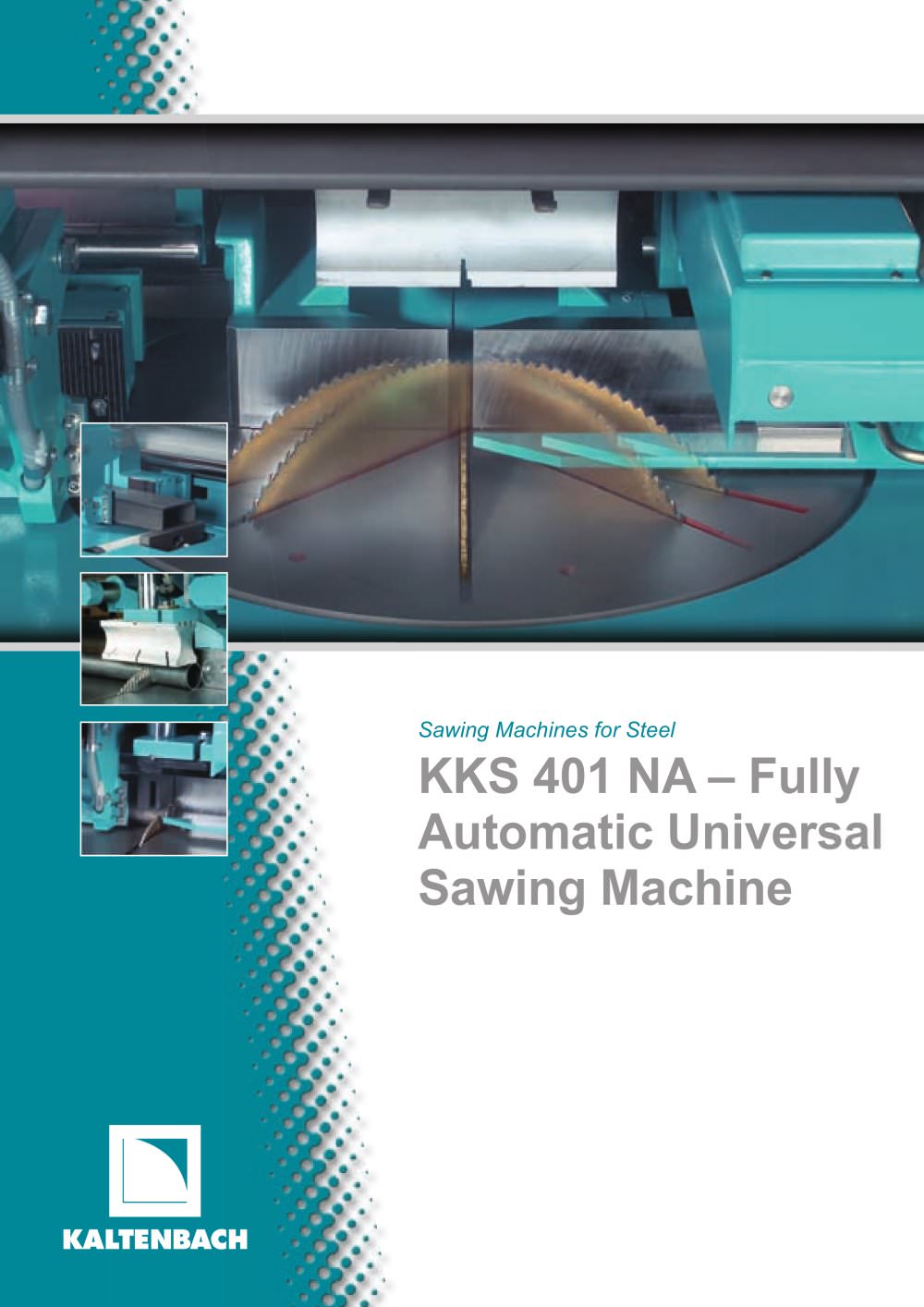

Sawing Machines for Steel KKS 401 NA – Fully Automatic Universal Sawing Machine

KKS 401 NA – Fully automatic universal sawing machine The Upstroking KKS401 a Stroke of Genius! CNC-controlled turntable made of highly wear-resistant nodular graphite iron. The KKS401 combines power, efficiency and reliability with exceptional ease of use. A choice of three different magazine options makes this machine a veritable allrounder. The KKS 401 NA is ideally suited for processing flat, angle or solid materials as well as tubes and special profiles. Features . Optimal chip flow due to the KALTENBACH principle of the vertical saw with upstroking blade technology . High cut quality due...

Excellent accessibility for sawblade change. Exchangeable material stop for 90° cuts and short end piece lengths Infinitely variable pressure stroke limitation OMNIPREST (patent) for cuts of thin-walled tubes and sections Precise positioning of material feed gripper via ball screw spindle The automatic feed carriage on the KKS401 can be combined with either a flat, an inclined or a bundle loader.

Alternative layouts for material infeed: Material infeed from front left Material infeed from rear left KKS 401 NA – Fully automatic universal sawing machine Material Infeed Material infeed at the fully automatic sawing machine KKS 401 NA is realised either by a flat magazine, an inclined or a bundle magazine. A powered roller conveyor transports the bar towards the saw where it is processed according to the programme. Cut-off pieces are automatically distributed to preset positions, trimcuts and end pieces are sorted out. KKS 401 NA – Fully automatic universal sawing machine

Material infeed from front right Material to be sawn Bar in process, cut-offs Trimcuts / Remnants Material infeed from rear right

« « « « « « « All KKS 401 NA operating and programming steps are effected at the touchscreen monitor of the PROFICUT graphic user surface (Windows). Network connection (Win 98/2000/NT) is possible. Unlimited storage capacity Automatic calculation of cutting speed and sawblade feed via material groups or DIN No. (steel code) Adjustment of part input according to available dimensioning Selection of preset material forms Graphic display of material to be cut Machine operation Bar optimisation Selection of processing type: piece-oriented quantity-oriented bar-oriented Graphic display of cuts and...

« « Machine PC (Windows) with graphic Touch Screen user interface. PROFICUT software for importing CAD data or data from the PROFICUT offi ce licence and for direct computer data entry Data entry: œ Unlimited number of sawing orders œ Multitasking mode œ Entry of part dimensions on the graphically shown part Display: œ Machine operating keys œ Graphical display of cross-section œ Graphical display of workpiece shapes œ Advance calculation and graphical display of bar assignment œ Process visualisation Import/Export module: œ Extension of program capacity by storing the sawing programs as CSV...

Flat magazine FM for preliminary storage of round and square material as well as profiles (including special profles). Inclined magazine LM for preliminary storage of round and square material. Bundle magazine VM for preliminary storage of round and square material. KKS 401 NA – Fully automatic universal sawing machine Optional Material Feed Facilities

Cut-off gripper with distribution unit The gripper removes the cut-offs from the sawing area and places them on the crossfeed distribution unit. KKS 401 NA – Fully automatic universal sawing machine Optional Systems for Material Output The cut-off gripper jaw is height adjustable, for secure handling of different material shapes Longer cut-offs are pushed off via motorised crossfeed output roller conveyors Longer cut-offs are pushed off via motorised crossfeed output roller conveyors

KKS 401 NA – Fully automatic universal sawing machine Accessoires Multiple front cuts with automatic wedge removal device Chip conveyor with chip container for continuous chip removal Coolant atomiser system for optimum lubrication of sawblade Individual drive alternatives for Segmented sawblade for various sawing tasks universal use . Sawblade PERFORMANCE with 3 mm blade thickness, especially for tube mitre cuts . TIN-coated sawblade for long blade endurance . Sawblade POWER with 2,2 mm blade thickness, especially for straight cuts . . .

¡ Standard › Option Accessories KKS 401 NA OMNIPREST pressure stroke limitation ¡ Cut-off gripper with ABG distributing unit Coolant atomiser system Cooling water unit ¡ CNC cutting angle presetting ¡ Marking system Graphic user surface PROFICUT ¡ Trimcut stop ¡ Chip conveyor / Chip container ABQ cut-off cross distribution unit Material infeed magazines Handling and measuring systems Technical Data KKS 401 NA Sawblade Ø mm 450 Drive capacity kW 4,0 bzw. 5,5 Cutting speed m/min 7 - 43 bzw. 15 - 75 Sawblade feed - infinitely variable - Rapid return stroke mm/min 0 - 1.000 3.500 Materialnachschub...

Robotic Coping Machines Band- and Circular- Sawing Machines Drilling Machines Measuring Systems Transport Systems Contour Marking Punching/Shearing Machines Plate Processing Centers In addition to an standard extensive programm KALTENBACH offers special solutions for metal working. Ask for our brochure as well as any additional information you might require. Kaltenbach GmbH + Co. KG Postfach 17 40 D-79507 Lörrach Blasiring 4 D-79539 Lörrach Tel.: +49 (0) 7621 / 175-0 Fax: +49 (0) 7621 / 175-477 [email protected] www.kaltenbach.com KALTENBACH Metall Working Systems: The Full Range.
