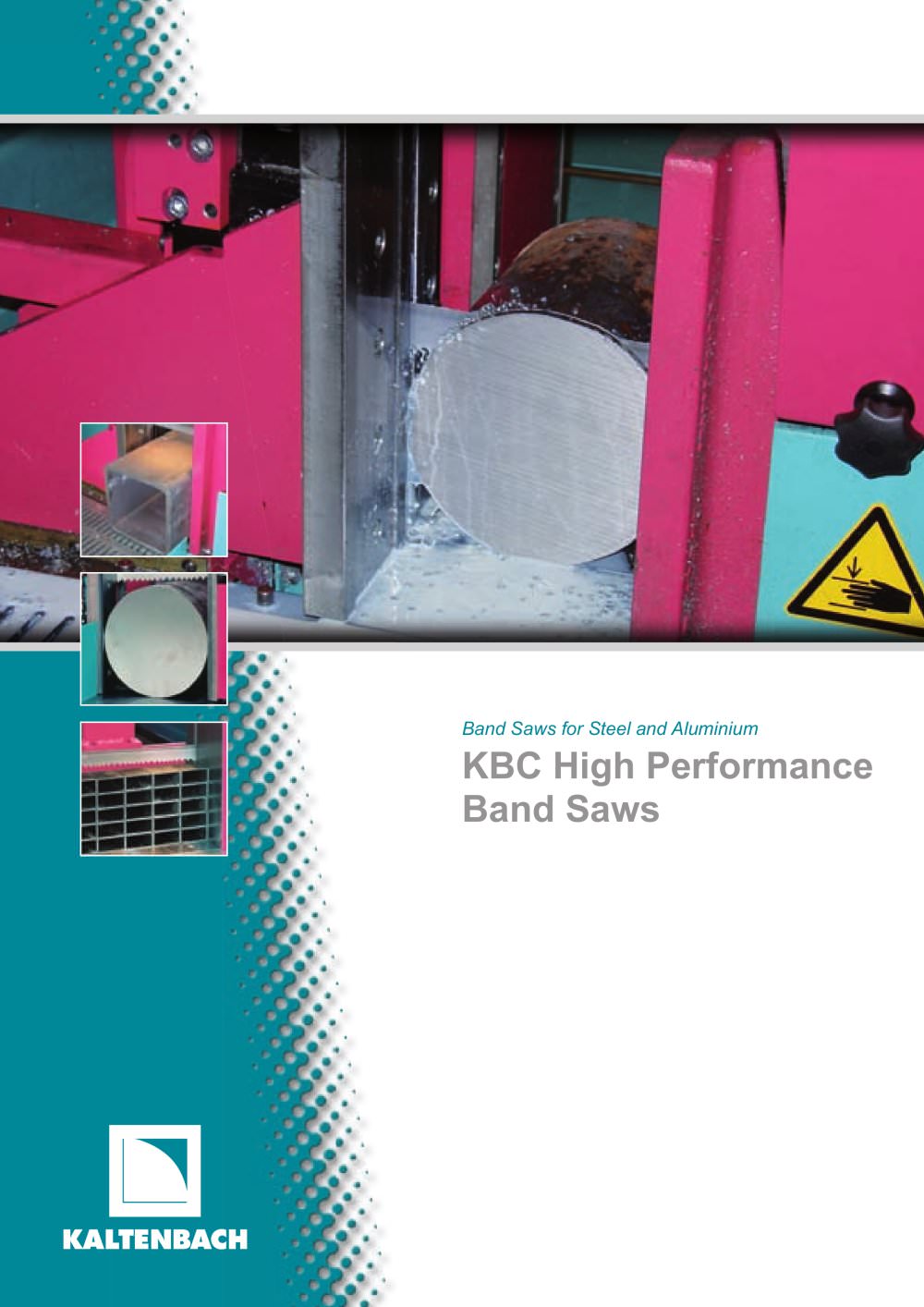

Band Saws for Steel and Aluminium KBC High Performance Band Saws

Safe and precise sawing of single bars up to max. 410 mm as well as layers and bundles Safe material clamping by hydraulic double clamps Vertical clamping unit for processing layers and bundles The high performance KBC band saws are perfectly designed for precise straight cuts on solid materials and sections, in layers and in bundles. The heavy-duty compact construction and easy-to-operate machine controls characterise this machine type. The more interesting point is the potential saving rate regarding cycle times, material and fi nancial aspects due to the minimal rest piece length of only 70...

Machine body Heavy duty torsion-resistant complete-steel version. High cutting performance and precision by inclination of the saw band. Complete housing to assure optimum chip fl ow and clean machine surroundings. Good accessibility for saw blade change and maintenance. Figure: KBC 410 NA

Material feed gripper . Precise positioning by servomotor and ball screw spindle . Multiple stroke system . Automatic material end recognition . Rear gripper with short stroke clamping cylinder for „contactfree“ return movement . Roller conveyor with 6 rollers (KBC 280 NA and KBC 350 NA) resp. 7 rollers (KBC 410 NA) integrated in material feed carriage with intermediate plates for the safe transport of short bars Hydraulic power pack . Dimensioned for fast movements . Large oil tank capacity . Easily accessible for maintenance operations Integrated operation panel with NC control . Easy-to-operate,...

Saw band guides . With tungsten carbide plates . Combined with guide rollers . Automatic adjustment of the movable guidance in accordance with material width . Guide arm running in backlashfree linear guide . Band back guide with pendular working tungsten carbide plates Hydraulic horizontal clamp as double clamping vice . Universal use for single bars, layers and bundles . No presetting due to safe clamping with long stroke cylinder and clamping strips . High cutting quality . virtually zero burr Chip conveyor . For continuous chip removal . Mounted at the left or right side of the machine ....

Vertical clamp . for the safe processing of layers and bundles . for the saw (on input side) and for the material infeed gripper Compact High Performance Band Saws KBC Optional Equipment for Your Security Coolant atomiser system Optimal cooling and lubrication of saw band. Machine lamp for well-illuminated working area. T9 Roller Conveyor Roller conveyor in heavy-duty construction in single segment to made up of a solid welded assembly with maintenance-free, ball bearing transport rollers of solid material. Cutting course monitoring system Control of saw band deflection regarding blunting

¡ Standard Option Technical data KBC 280 NA KBC 350 NA KBC 410 NA Saw band mm 5.100 x 34 x 1,1 5.100 x 34 x 1,1 5.920 x 41 x 1,3 Drive capacity kW 3,0 3,0 4,0 Cutting speeds (infi nitely variable) m/min 15 - 90 15 - 90 15 - 120 Cut-off lengths - single stroke - multiple stroke mm 6 - 610 9.999 6 - 610 9.999 6 - 610 9.999 Bar end length - in manual mode - in automatic mode mm 10 70 10 70 10 70 Dimensions - Length - Width - Height mm 1.520 2.450 1.850 1.520 2.450 1.850 1.620 3.310 2.070 Weight kg 2.800 2.900 3.300 Working height mm 720 720 720 mm 280 350 410 mm 400 x 280 400 x 350 410 x 410 Equipment...
