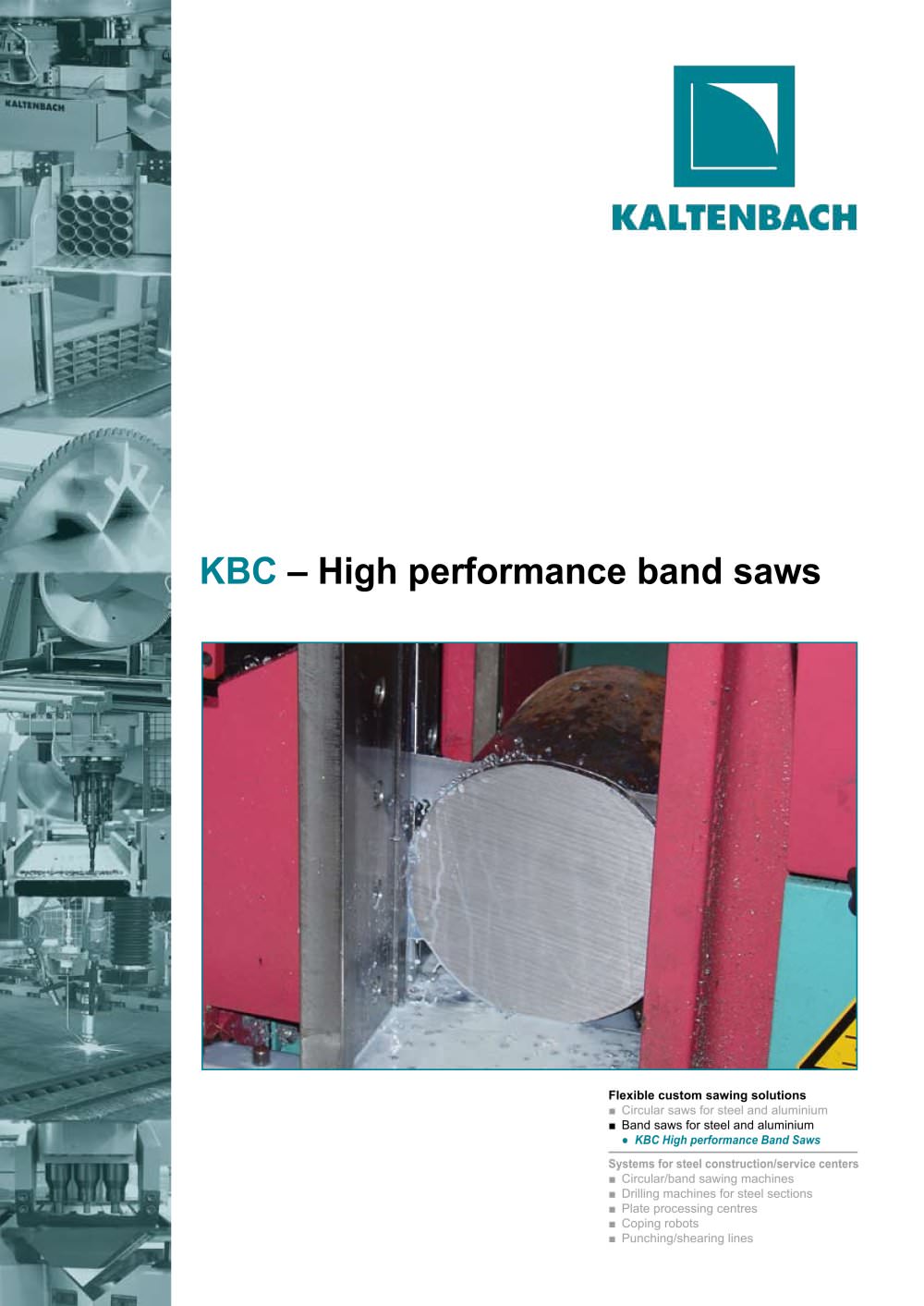

Flexible custom sawing solutions ֢֠ Circular saws for steel and aluminium ■ Band saws for steel and aluminium ● KBC High performance Band Saws Systems for steel construction/service centers ■ Circular/band sawing machines ■ Drilling machines for steel sections ■ Plate processing centres ■ Coping robots ■ Punching/shearing lines >

The heavy-duty compact construc-tion and easy-to-operate machine controls characterise this machine type.The more interesting point is the po-tential savings rate regarding cycle times, material and financial as- pects due to the minimal rest piece length of only 70 mm in automatic operation.High cutting quality and exact cut-off lengths minimise the material al- lowance and the following finishing processes. The high performance KBC band-sawing are perfectly designed for precise straight cuts on solid materials and sections, in layers and in bundles. 3 sizes for high flexibility The KBC band...

KALTENBACH FULLY AUTOMATIC BANDSAWING MACHINES KBC | 2 3 KBC 280 NAKBC 410 NA KB KB C C C 28 28 28 N NA NA Complete housing C ompl e to assure optimum chip flow and clean machine surroundings. Good accessibility for saw blade change and maintenance. to to a a ssu r cl ea a n n m ac a ce e ss ss i b Machine body a an d ma ma i Heavy duty torsion-resistant com-plete-steel version. High cutting performance and preci-sion by inclination of the saw band. M ac ac hi hi n He He a av y d pl pl ete-st e H i g h cu t sion b y >

■ Precise positioning by servo- motor and ball screw spindle ■ Multiple stroke system ■ Automatic material end recognition ■ Rear gripper with short stroke clamping cylinder for contact- freeē return mouvement ■ Roller conveyor with 6 rollers (KBC 280 NA and KBC 350 NA) resp. 7 rollers (KBC 410 NA) integrated in material feed carri- age with intermediate plates for the safe transport of short bars Integrated operation panel with NC control Hydraulic power pack Material feed gripper ■ Easy-to-operate, fast-to-program ■ Programming of 20 programmes, each up to 99 sets ■ Fully automatic motorised...

STANDARD EQUIPMENT | 4 5 Saw band guides ֢֠ With tungsten carbide plates ■ Automatic adjustment of the movable guidance in accordance with material width ■ Guide arm running in backlash-free linear guide ■ Band back guide with pendular working tungsten carbide plates Hydraulic horizontal clamp as double clamping vice Chip conveyor ■ Universal use for single bars, layers and bundles ■ For continuous ship removal ■ No presetting due to safe clamping with long stroke cylinder and clamping strips ■ Mounted at the left or right side of the machine ■ Electrically driven ■ High cutting quality ■ Drop...

◄ Cutting course monitoring system ■ Control of saw band deflection regarding blunting Machine lamp ►◄ Coolant atomiser system ■ Optimal cooling and lubrica-tion of saw band Tiltable chip wagon ►◄ Vertical clamps ■ for the safe processing of layers and bundles ■ for the saw (on input side) and for the material infeed gripper (endpiece length 30 mm) Vertical guiding roller ► ■ movable for bundle preparation Without picture for sawing of thin-walled profiles Laser light barrier Clamping pressure reduction >

TECHNICAL DATA + ACCESSORIES | 6 7 > Technical dataKBC 280 NAKBC 350 NAKBC 410 NA Saw bandmm5,100 x 34 x 1.15,100 x 34 x 1.15,920 x 41 x 1.3Drive capacitykW3.03.04.0Cutting speeds (infinitely variable)m/min15 - 9015 - 9015 - 120Cut-off lengths single stroke multiple strokemm6 ֖ 610 9,9996 610 9,9996 ֖ 610 9,999Bar end length in manual mode in automatic mode - - /vertical clampmm107013010701301070140Dimensions (l x w x h) mm1,520 x 2,450 x 1,8501,520 x 2,450 x 1,8501,620 x 3,310 x 2,070Weightkg2,8002,9003,300Working heightmm720720720 Working rangeKBC 280 NAKBC 350 NAKBC 410 NA mm280350410mm 400...

THE KALTENBACH RANGE Semi-/fully automatic circular sawing machines for metal and non-ferrous materialsSemi-/fully automatic bandsawing machines for solid material, profiles and structural sections Structural drilling machines Circular saw for structural sectionsCoping robots Punching/Shearing linesPlate processing centres Kaltenbach 2008 ɢ֠ Kaltenbach reserves the right to alter specifications without further notice ■ Printed in Germany 01/2008 Kaltenbach GmbH + Co. KG Postfach 17 40 ■ D-79507 LrrachTel.: +49 (0) 7621 / 175-0 Fax: +49 (0) 7621 / 175-477 [email protected] >
