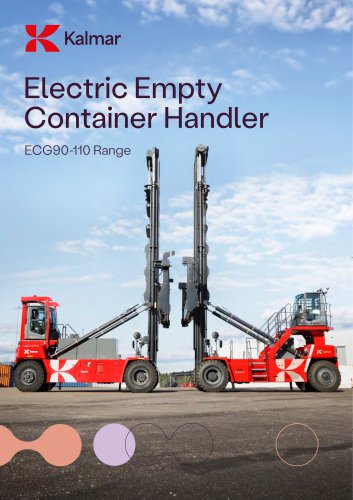

Electric Empty Container Handler ECG90-110 Range

To complement our industry leading range of traditionally powered empty container handlers you can now choose from an extensive range of electrically powered solutions that use the same technology platform as our tried and tested electric reachstacker and electric heavy forklift ranges. The market’s largest range You get more choice of machines, with a range of single stackers in 9 and 10 tonne capacities and lifting heights from 5 to 8 high (ES5-ES8). Double stackers are available in 10 and 11 tonne capacities, with stacking heights from 5+1 to 8+1-high. Plus, a greater choice of battery sizes...

Charged to go Eco-efficient by nature By combining a highly efficient electrically powered motor, with direct drive hydraulics you get a driveline combination that will deliver on power and productivity while producing zero carbon emissions at source. The complete system has been designed to minimise energy losses. With improved battery lifetime, performance and monitoring, energy losses have been minimised extending the time between charges. Regenerative power from the braking system returns power to the batteries, further enhancing the overall efficiency of the system. Operational hours per...

Optimised battery performance All of Kalmar’s Electric Empty Container Handlers come fitted with a Thermal Management System which keeps your battery operating at an optimal temperature over a broad range of external temperatures. Thermal Management System -30˚C Battery Core Temperature By linking the Thermal Management System to the Climate Control System, the energy used to heat or cool the operator’s cabin is reduced. Not only keeping Your drivers are comfortable, but improving overall efficiency of the machine. External Temperature There are different charging options for you to choose from,...

Power Cabinets Local Grid Power cabinets manage the required electricity flow from the grid to your charging points. Power cabinets are modular and the number required is dependent on the number of charging points required. Kalmar’s electrically powered empty container handler is part of our complete range of eco-efficient solutions, which include terminal tractors, forklifts and reachstackers. Site Power Grid Battery and Charging Monitoring Real-time status on battery capacity and health along with charging usage and timing allows for optimised operational planning and usage. MyKalmar INSIGHT...

Even more choice across the entire range More options More efficient Now more safety features and options to customise your machine than ever before. From reverse warning systems to a range of different battery options and spreaders. To maximise your energy usage every Kalmar Electric Empty Container Handler is fitted with highly efficient hydraulic pumps, transmission, motor and inverter which, when combined, will extend your operating time between charges, improving battery lifetime and helping to optimise your return on investment. While Eco Drive modes, which allow for a choice of power levels...

More choice of spreaders A choice of spreaders A choice of spreader and lift beam levelling The first thing you need to do is know what sort of containers you will be handling, then you can decide what sort of lifting head / spreader version you will need on your single or double spreader. For single stacker toplift spreaders you can choose from lifting heads with either a standard twistlock position (8' wide) for ISO containers or a wide twistlock position (8'6") and / or wide body containers (WBC / 8'6" wide). All machines, mast designs and spreaders come with two different solutions for spreader...

Every member of our empty container handler range comes fitted with our EGO cabin, the ultimate operating environment for your driver. With a more ergonomic design, smarter functions and an intuitive workspace than ever before, you can expect to get more from your operators. With A-posts being replaced with slim B-posts you can expect greater visibility in all directions: forward, backward, to the side and upwards. Our new dual wiper system cleans a bigger area of the front windscreen than before so your forward view will stay extra clean and clear. More comfortable With a choice of comfortable...

The features listed here come fitted as standard on all Kalmar machines. You can enhance your employees’ safety further by fitting your machine with our additional safety options listed on the following pages. 2-point seat belt. Ensures that your driver is safe and secure while operating our equipment, all Kalmar machines are equipped with an adjustable 2-point seat belt system. Display. Cabins are fitted with an easy to read display which keeps your drivers fully aware of the machine’s on-going performance and any maintenance actions that need to be taken. 3-point Contact System. Makes sure...

Even more options Kalmar has a range of options that make operating your equipment even safer Fire Suppression System. To protect your operator and machine from fire you can fit a Fire Suppression System* to your machine. The system utilises multiple spray nozzles that release a high pressure water mist where the fire has been detected from a re-chargeable water tank. This can be activated manually or automatically through an in-cabin temperature sensor. Alcolock. To ensure that your driver is at their best when operating your equipment you can install an Alcolock system. This system makes sure...

Service models: Essential Care A maintenance solution to keep your equipment in an optimal condition. Keep moving with Kalmar Services To keep your business moving Kalmar Services offers a range of services that can help you keep your equipment moving optimally. Care that keeps your business moving. With Kalmar Care you get a flexible service that's built around your business. Including, the experience and knowledge of Kalmar's dedicated staff, coupled with transparency and increased predictability of costs. Kalmar Care is available in three different service models: our two customisable contracts...
