CV-6 Vertical Machining Center

Product catalog summary
Specifications Overview:
  • Axis Travel: X-axis: 600 mm, Y-axis: 400 mm, Z-axis: 400 mm
  • Rapid Travel Rate: 48 m/min for all axes
  • Cutting Speed Rate: 10 m/min
  • Motor Power: X, Y: 1.5 kW each; Z: 3.5 kW
  • Spindle to Table Distance: 200-600 mm
  • Table Height from Ground: 865 mm
  • Guide Way: Linear
Table Specifications:
  • Size: 700 x 400 mm
  • Slots: 3 T-slots, 14 mm width, 125 mm pitch
  • Max Loading Capacity: 200 kg
Main Spindle Details:
  • Speed: 10,000 rpm (Belt head), 15,000 rpm (Direct-driven)
  • Power: 3.7 kW continuous, 5.5 kW for 30 min
  • Torque: Max 23.5 N-m
  • Bearing: 50 mm diameter
  • Taper: BT30
Tool Magazine:
  • Capacity: 20 tools (ARM type)
  • Max Tool Diameter: 65 mm, 130 mm without adjacent tools
  • Max Tool Length: 200 mm
  • Max Tool Weight: 3 kg
  • Tool to Tool Time: 1.2 seconds
  • Chip to Chip Time: 2.5 seconds
Controller Options:
  • Standard: Mitsubishi M70
  • Optional: Fanuc 0i
External Dimensions and Weight:
  • Dimensions: 1750 x 1990 x 2148 mm
  • Net Weight: 2800 kg
Accuracy:
  • Positioning: Less than 0.006 mm
  • Repeatability: Less than 0.004 mm
Note: Specifications are based on AC 220V, 3-phase, 60Hz. Specifications may change without notice.
See more

Catalog excerpts

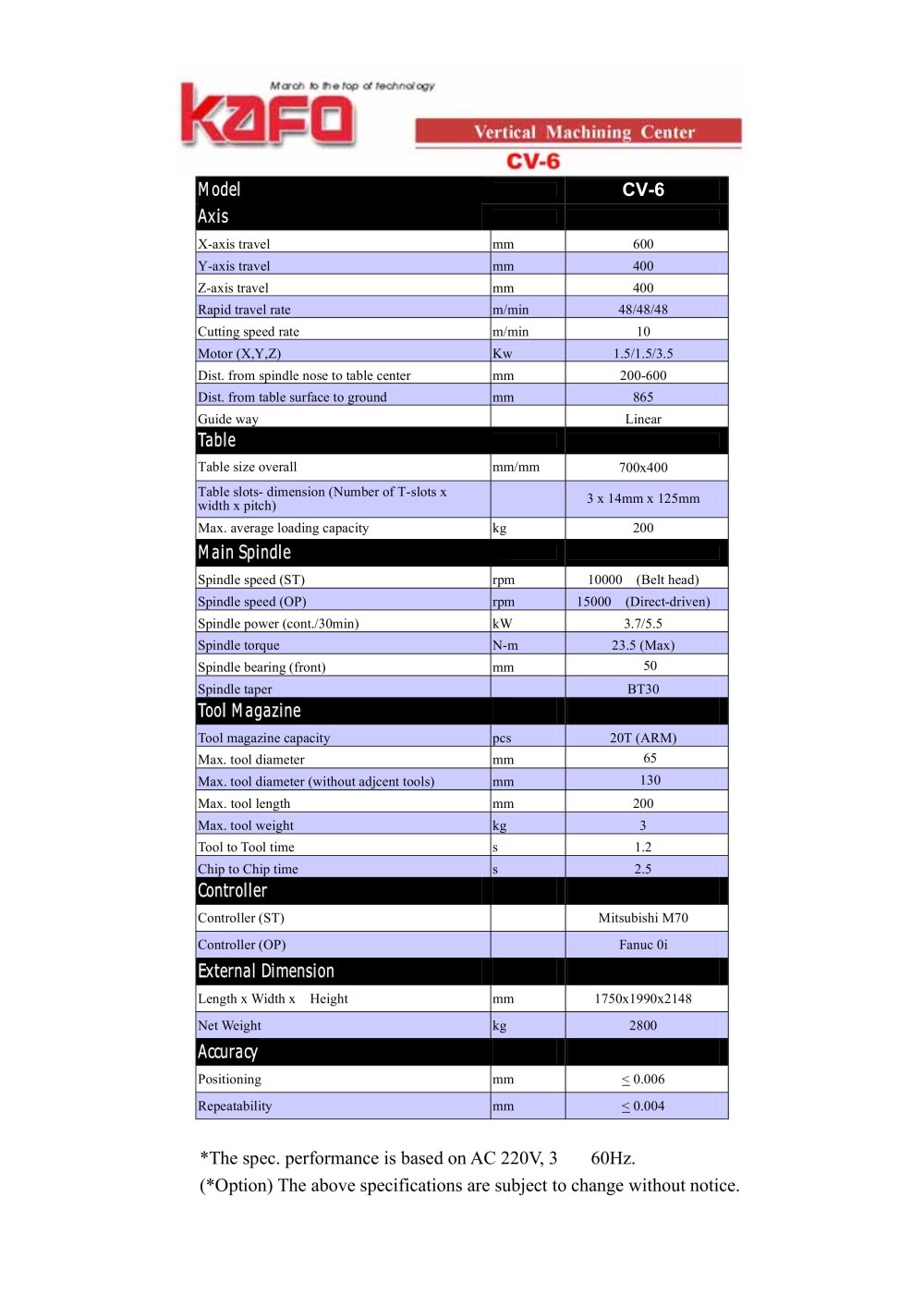

CV-6 Vertical Machining Center -1
