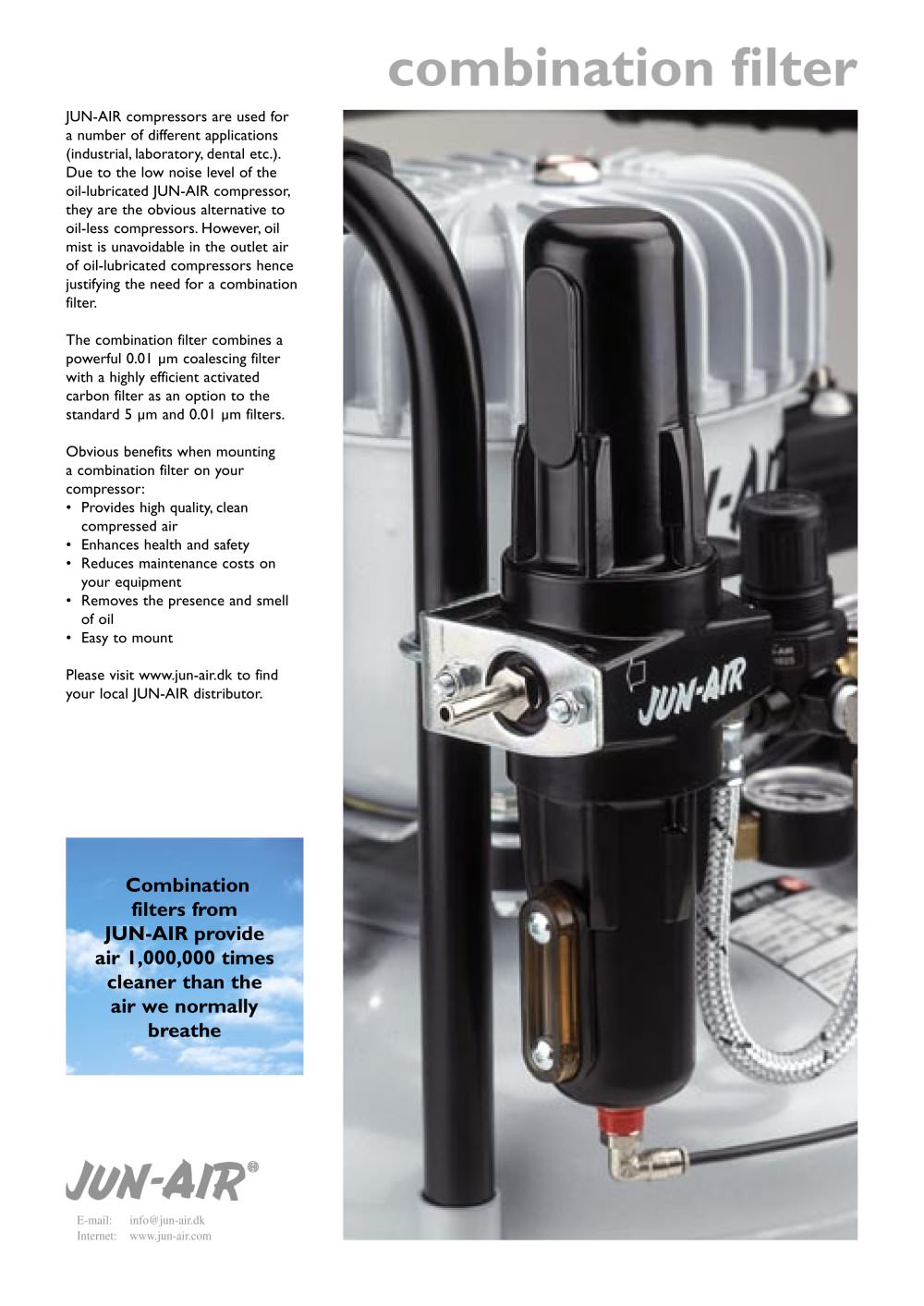

Combination filters

Product catalog summary

Overview: JUN-AIR compressors are designed for various applications such as industrial, laboratory, and dental uses. They are preferred for their low noise levels compared to oil-less compressors. However, oil mist in the outlet air necessitates the use of a combination filter.

Combination Filter Features:

Includes a 0.01 µm coalescing filter and an optional activated carbon filter.
Benefits include high-quality clean air, enhanced health and safety, reduced maintenance costs, and removal of oil presence and smell.
Easy to mount and provides air 1,000,000 times cleaner than normal atmospheric air.

Contaminants in Compressed Air Systems:

Atmospheric air used in systems is often contaminated with dirt, water vapor, and bacteria.
Additional contaminants include acidic oil, wear particles, and corrosion particles.
These contaminants can cause costly air leaks, increased maintenance costs, and polluted air exposure.

Filtration Process:

Air enters the filter and passes through the 0.01 µm filter, where solid particles and liquids coalesce and are discharged via an automatic drain.
The activated carbon filter removes gaseous contaminants like oil vapor and odors.
After two-stage filtration, the air is ready for use.

Specifications:

Dimensions: 266 mm x 76 mm x 65 mm
Port sizes: 1/4" (ISO 1179)
Maximum inlet pressure: 16 barg
Operating temperature: 2°C to 30°C
Filter element: 0.01 µm
Max. remaining oil vapor content: 0.003 ppm
Maximum flow: 360 l/min with 7 bar inlet pressure
Material: Diecasted aluminum with Aloxrom treatment and epoxy paint finish
Automatic drain and available with a wall mounting bracket

Maintenance:

Filter housing guaranteed for 10 years under normal conditions.
Replacement parts include activated carbon filter element (1000 hours), 0.01 µm filter element (2000 hours), and auto drain (4000 hours).
Failure to replace elements results in reduced air quality and increased costs.
