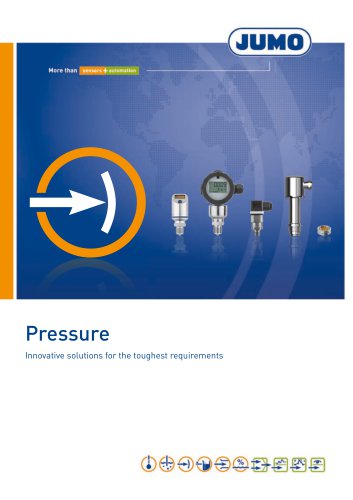

Pressure Innovative solutions for the toughest requirements

Phone: +49 661 6003-0 Email: [email protected] Dear Reader, Sensor technology is one of our core areas of expertise. Why is this diversity so important to us? Because we do not This is particularly so for pressure-sensor technology. After only want to be among the best in Germany but also in all all, we produce both the pressure sensors and the pressure other markets throughout the world. As a result, we make electronic components ourselves. The high quality of our sure that all our products meet the current standards, di- products is the result of more than 40 years of knowledge and experience...

More than sensors + automation JUMO sensor and measuring system production 6 JUMO CEROS series 8 JUMO MIDAS series 10 JUMO dTRANS p30 series 14 JUMO TAROS series 16 JUMO DELOS series 18 JUMO dTRANS p20 series 20 JUMO differential pressure transmitters 26 JUMO CANtrans series 28 JUMO pressure sensors with IO-Link 30 JUMO PEKA and diaphragm seals 32

Pressure measurement Pressure measurement is one of the most important tasks in almost all industrial sectors. High-quality pressure measuring devices ensure reliable and safe measuring results. JUMO supplies precision solutions for the process industries, hygienic solutions for the food and pharmaceutical industry, universal solutions for mechanical and plant engineering, large quantities for the OEM market, and modules for its competitors. As a result, JUMO can also provide the right solution for your specific application.

Pressure Pressure measurement Sensor and measuring system production The industries Plastics and packaging Sterilizers and medical technology Renewable energy Mechanical and plant engineering Shipbuilding and maritime applications Industry Water and wastewater engineering Compressors Food and pharmaceutical industry Chemical industry Paper manufacturing Railway technology Process industry Commercial vehicles Refrigeration engineering Building technology Power plants The right solution for every task: our wide range of different In addition to standard devices, JUMO's product range also devices...

JUMO sensor and measuring system production Our internally-developed, patented pressure sensors and measuring systems are characterized by the highest quality. Benefit from the large variety of producible sensor technologies and our high degree of flexibility. Our many years of experience and modern production lines enable us to implement your solution.

Pressure Pressure measurement Sensor and measuring system production JUMO sensor and measuring system production Working in a cleanroom for pressure sensors Production: Silicon pressure sensors Production: Ceramic pressure sensors Quality through attention to detail to special customer requests as well as to meet the requi- Our products set the benchmark for precision. This quality rements of the respective application. results from the extensive experience of our highly-qualified staff as well as close cooperation with our customers in development and production. We are familiar with complex...

JUMO CEROS series The JUMO CEROS S01/S02/C02 M digital pressure cells are used for measuring the pressure of liquid and gaseous media. Unlike ordinary pressure measuring cells, this is an active component that provides a temperature-compensated and calibrated output signal – which can be digital or analog. The measuring element with integrated signal processing ensures stable, precise linearity and accuracy values even under adverse conditions. The digital pressure measuring cells allow the production of pressure transmitters and level probes to be greatly optimized, as time-consuming and cost-intensive...

Pressure measurement Sensor and measuring system production ■ Digital measuring cells with piezoresistive silicon sensor or thick-film ceramic sensor for absolute and relative pressure measurement ■ Temperature-compensated and calibrated digital or analog output signal ■ Digital output signal includes pressure and temperature values ■ Easy zero point correction possible (e.g. after installation or welding of the measuring cell) ■ Direct mounting on circuit board possible without additional connector ■ Adjustable sensor monitoring (signal limitation, attenuation, limit value) ■ Traceability of...

JUMO MIDAS series The compact pressure transmitters of the JUMO MIDAS series are characterized by measurement that is reliable and that has long-term stability – at an excellent price-performance ratio. We ensure high quality due to a fully-automated production and complete final inspection. Different measuring ranges, process connections, and electrical connections result in a versatile portfolio with solutions for every measuring task.

Pressure measurement Sensor and measuring system production Products OEM pressure transmitter series JUMO MIDAS Q. Product name Facility management Industry Air conditioning and refrigeration technology Co-generation (combined heat and power) Medical technology Wind power Measuring range Measuring system Medium temperature Accuracy (linearity) Process connection Approvals 0.1 to 0.6 bar relative 0.25 to 1.6 bar relative 0.01 to 0.6 bar relative 0 to 25 bar absolute Thick film on ceramic Silicon sensor with stainless steel separating membrane bodies (piezoresistive) All industry-related screw...

OEM pressure transmitter series JUMO MIDAS OEM pressure transmitters Product name Type Wind power ATEX, explosion protection Measuring range Measuring system Medium temperature Accuracy (linearity) Process connection Approvals JUMO MIDAS S07 MA JUMO MIDAS S19 R JUMO MIDAS H20 HP JUMO MIDAS S21 Ex 1 to 100 bar relative; 2.5 to 60 bar relative; 1 to 25 bar absolute 2.5 to 40 bar absolute Silicon sensor with stainless steel separating membrane All industry-related screw connections DNV Tested for railway applications according to DIN EN 50155 and DIN EN 50121 Thin film sensor Silicon sensor with...

Pressure measurement Sensor and measuring system production Differential pressure Product name Facility management Air conditioning and refrigeration technology • Co-generation (combined heat and power) • Water treatment Technical data Measuring range Measuring system Thick film on ceramic bodies (piezoresistive) Piezoresistive silicon sensor Thick film on ceramic bodies (piezoresistive) Medium temperature Accuracy (linearity) Process connection Push-in fittings for pipe or tube Rp 1/8 internal thread, push-in fitting for pipe or tube All industry-related screw connections Tested for railway...
