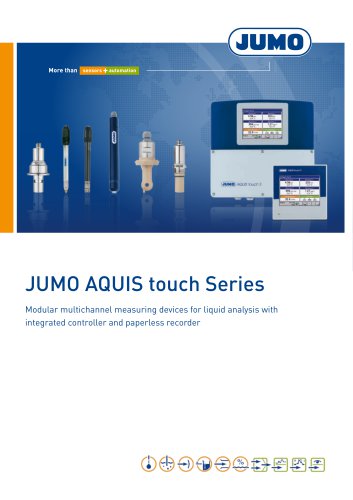

JUMO AQUIS touch Series Modular multichannel measuring devices for liquid analysis with integrated controller and paperless recorder

Phone: +49 661 6003-0 Email: [email protected] Dear Reader, In addition to the measurands temperature and pressure, Measurands frequently affect each other directly. This can be measuring the most important electrochemical parameters taken into consideration more easily by integrated functions is one of JUMO's core skills. Whether for pH values or redox such as user-configurable math and logic formulas. potential, electrolytic conductivity or dissolved oxygen – JUMO provides a wide range of sensors and devices covering the pri- In addition, an integrated paperless recorder enables the mary...

JUMO AQUIS touch series Mechanical design Basic electrical equipment Analysis modules Timer, math, and logic functions Setup program

JUMO AQUIS touch series The JUMO AQUIS touch S and P multichannel devices provide a central platform for displaying and further processing a wide variety of measurands in the field of liquid analysis. The devices have a modular design, feature numerous interfaces, and can therefore be adapted entirely according to the individual requirements of each operation. In addition to measured value recording, up to four independent control loops can be implemented. Important process values can also be saved in a tamper-proof manner using an integrated paperless recorder. Thanks to user-configurable screen...

■ Measuring, displaying, controlling, recording - all in one single device ■ JUMO AQUIS touch S is available in a surface-mounted case while JUMO AQUIS touch P is sold as a built-in panel device (96 x 96 mm) ■ Up to four analysis inputs can be connected ■ Up to six JUMO digiLine sensors can be digitally connected and as many as 25 sensors can be connected using corresponding input modules and interfaces. ■ Simple operation via touchscreen ■ User-configurable screen masks ■ Individually adjustable process screen for plant visualization ■ Up to nine analog outputs ■ Up to 17 switching outputs that...

Operation JUMO AQUIS touch devices are operated using a central TFT color graphic display with touch function, which simultaneously displays all measured values and parameters. The resistive operating principle of the screen makes operation possible even while wearing gloves. An additional protective film eliminates touchscreen glare and provides added protection against environmental influences as well as mechanical damage. Measured value display and process screen An operating and status line is displayed on the lower part of (frequently the temperature) can be displayed for each chan- the...

Control display and recording function In addition to the measured values and customizable process screen, the activated controllers can be displayed in single screens or in groups of four. Both the actual value and setpoint value are displayed in each case. If the required user rights are activated, the setpoint can be changed for the individual image display during controlled operation - or it can be switched to manual mode using the manual default output value. For additional information see the "Control" chapter on page 16. The integrated recording function represents the measured values...

Mechanical design If you are looking for a reliable multichannel measurement device that also offers precision controlling and recording functions as well as the utmost flexibility for adapting to the required application, JUMO AQUIS touch devices are the ideal solution for you. The modular setup concept allows customization to the device so that individual requirements are met. At the same time, the user can also rely on our comprehensive range of analysis sensors. The JUMO AQUIS touch S is housed in an ABS plastic case, The number of cable fittings is determined so that the user which features...

nical design JUMO AQUIS touch Series Basic electrical equipment Analysis modules Interfaces Recording/evaluation Timer, math, and logic functions JUMO AQUIS touch S Input and output modules JUMO AQUIS touch P

Series Operation Mechanical design Basic electrical equipment The modules for the basic electrical equipment of JUMO AQUIS touch devices are on a power supply board and a basic board which each device has. Optional additional modules can be fitted in the available slots at the factory or by the customer – in addition to the standard basic equipment. Replacing modules that are specified by default with other modules is also possible. This is where the modular concept shows all of its strengths: the devices can be individually adapted to a wide range of the respective measuring and controlling...

3asic electrical equipment Analysis modules Interfaces Control Recording/evaluation Timer, math, and logic functions Setup/applications plifier required for the glassless ISFET pH electrodes. If the basic equipment is not sufficient, additional module slots are available. They can be fitted with additional input cards (analog or binary inputs) or output cards (analog outputs or switching outputs as a semiconductor switch/relay) to meet your individual needs. The following table provides an overview on the basic equipment available on the power supply unit board and basic board. The possible maximum...

Analysis modules The JUMO AQUIS touch devices feature separate reserved slots, which house special measuring modules for connecting analog analysis sensors directly. JUMO provides three different analysis modules as starting points, which can be fitted with any combination of options. The JUMO AQUIS touch P houses up to two modules and the JUMO AQUIS touch S houses a maximum of four. A sensor for measuring the pH value, redox potential, conductivity, or ammonia concentration can be connected for each analysis module. If the temperature must be compensated for acquiring a measurand, the user can...

■ For connecting all JUMO sensors of data sheets 202941 to 202943 (third-party sensors upon request) ■ Activation of up to four measuring ranges (CIP function) ■ Concentration curves: NaOH, HNO3, H2SO4, HCl (others upon request)
