Linear Actuators Catalogs
19Pages

{{requestButtons}}

Catalog excerpts

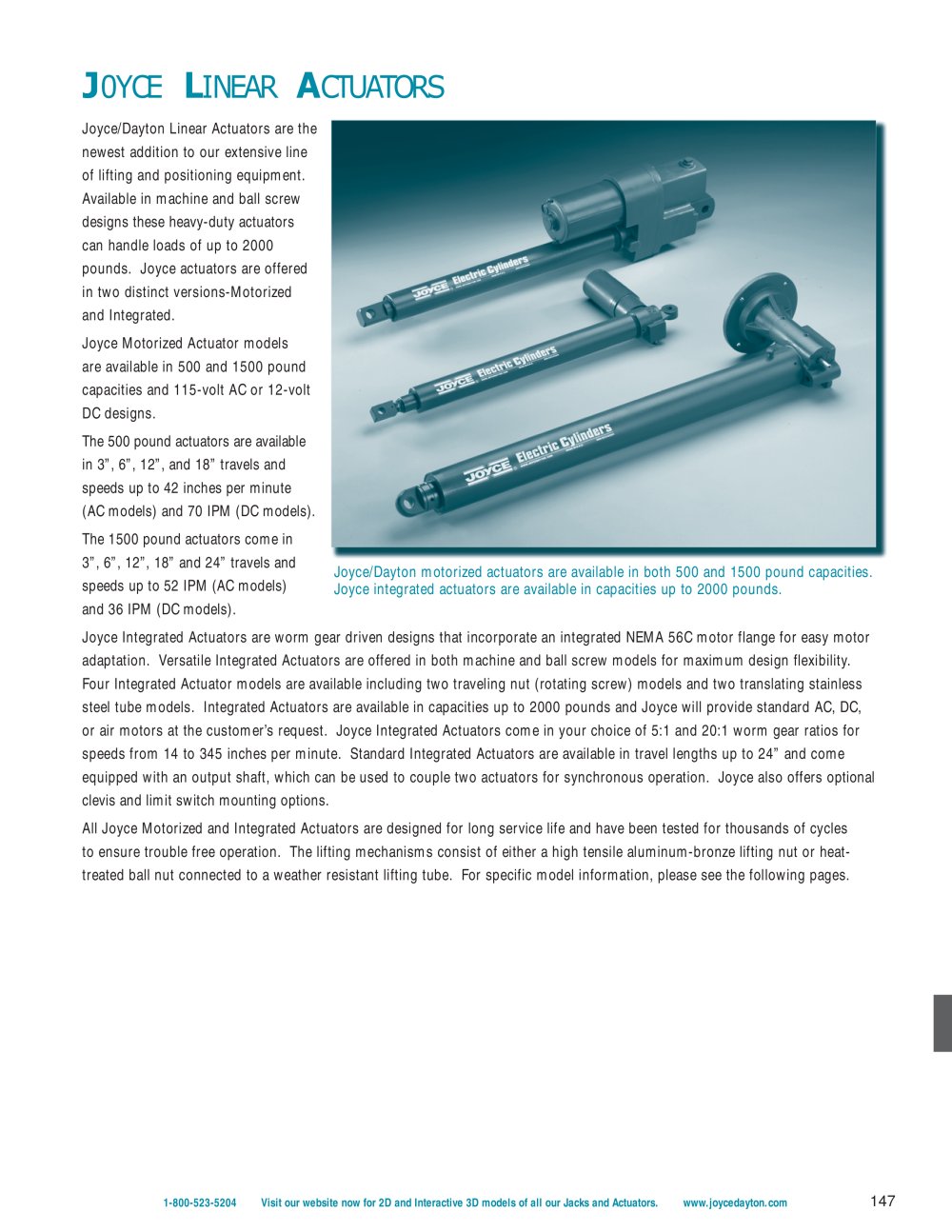

Linear Actuators Catalogs - 1

1-800-523-5204 Visit our website now for 2D and Interactive 3D models of all our Jacks and Actuators. www.joycedayton.com 147 Joyce/Dayton Linear Actuators are the newest addition to our extensive line of lifting and positioning equipment. Available in machine and ball screw designs these heavy-duty actuators can handle loads of up to 2000 pounds. Joyce actuators are offered in two distinct versions-Motorized and Integrated. Joyce Motorized Actuator models are available in 500 and 1500 pound capacities and 115-volt AC or 12-volt DC designs. The 500 pound actuators are available in 3”, 6”, 12”, and 18” travels and speeds up to 42 inches per minute (AC models) and 70 IPM (DC models). The 1500 pound actuators come in 3”, 6”, 12”, 18” and 24” travels and speeds up to 52 IPM (AC models) and 36 IPM (DC models). Joyce Integrated Actuators are worm gear driven designs that incorporate an integrated NEMA 56C motor flange for easy motor adaptation. Versatile Integrated Actuators are offered in both machine and ball screw models for maximum design flexibility. Four Integrated Actuator models are available including two traveling nut (rotating screw) models and two translating stainless steel tube models. Integrated Actuators are available in capacities up to 2000 pounds and Joyce will provide standard AC, DC, or air motors at the customer’s request. Joyce Integrated Actuators come in your choice of 5:1 and 20:1 worm gear ratios for speeds from 14 to 345 inches per minute. Standard Integrated Actuators are available in travel lengths up to 24” and come equipped with an output shaft, which can be used to couple two actuators for synchronous operation. Joyce also offers optional clevis and limit switch mounting options. All Joyce Motorized and Integrated Actuators are designed for long service life and have been tested for thousands of cycles to ensure trouble free operation. The lifting mechanisms consist of either a high tensile aluminum-bronze lifting nut or heattreated ball nut connected to a weather resistant lifting tube. For specific model information, please see the following pages. J 0YCE L INEAR AC T U AT O R S Joyce/Dayton motorized actuators are available in both 500 and 1500 pound capacities. Joyce integrated actuators are available in capacities up to 2000 pounds.

Open the catalog to page 1
Linear Actuators Catalogs - 2

148 1-800-523-5204 Visit our website now for 2D and Interactive 3D models of all our Jacks and Actuators. www.joycedayton.com J 0YCE L INEAR AC T U AT O R S 500 POUND AC & DC MODELS Specifications • Double Clevis Mounting • Standard Travels of 3", 6", 12", & 18" • Double Lead Machine Screw • Cast Aluminum Housing • Stainless Steel Lifting Tube • Spring Type Brake • Temperature Range of -20° to + 104°F ambient • Limit Switch Available • AC Models are 115 Volt • DC Models are 12 Volt • Load Limiting Friction Slip Clutch Available • Limit Switch w/10 Turn Potentiometer (AC Only) • Lifting Tube...

Open the catalog to page 2
Linear Actuators Catalogs - 3

1-800-523-5204 Visit our website now for 2D and Interactive 3D models of all our Jacks and Actuators. www.joycedayton.com 149 J 0YCE L INEAR AC T U AT O R S LA052L 500 POUND DC WITH LIMIT SWITCH Note: Drawings are artist’s conception — not for certification; dimensions are subject to change without notice.

Open the catalog to page 3
Linear Actuators Catalogs - 4

150 1-800-523-5204 Visit our website now for 2D and Interactive 3D models of all our Jacks and Actuators. www.joycedayton.com J 0YCE L INEAR AC T U AT O R S LA052C 500 POUND DC WITH SLIP CLUTCH Note: Drawings are artist’s conception — not for certification; dimensions are subject to change without notice.

Open the catalog to page 4
Linear Actuators Catalogs - 5

1-800-523-5204 Visit our website now for 2D and Interactive 3D models of all our Jacks and Actuators. www.joycedayton.com 151 J 0YCE L INEAR AC T U AT O R S LA055L LA055P 500 POUND AC WITH LIMIT SWITCH Note: Drawings are artist’s conception — not for certification; dimensions are subject to change without notice.

Open the catalog to page 5
Linear Actuators Catalogs - 6

152 1-800-523-5204 Visit our website now for 2D and Interactive 3D models of all our Jacks and Actuators. www.joycedayton.com J 0YCE L INEAR AC T U AT O R S LA055C 500 POUND AC WITH SLIP CLUTCH Note: Drawings are artist’s conception — not for certification; dimensions are subject to change without notice.

Open the catalog to page 6
Linear Actuators Catalogs - 7

1-800-523-5204 Visit our website now for 2D and Interactive 3D models of all our Jacks and Actuators. www.joycedayton.com 153 J 0YCE L INEAR AC T U AT O R S 1500 POUND AC & DC MODELS Specifications • Double Clevis Mounting • Standard Travels of 3", 6", 12", 18" & 24" • Double Lead Machine Screw • Cast Aluminum Housing • Stainless Steel Lifting Tube • Spring Type Brake • Temperature Range of -20° to + 104°F ambient • Limit Switch Available • AC Models are 115 Volt • DC Models are 12 Volt • Load Limiting Slip Clutch Available (DC Only) • Limit Switch w/10 Turn Potentiometer (AC Only) •...

Open the catalog to page 7
Linear Actuators Catalogs - 8

154 1-800-523-5204 Visit our website now for 2D and Interactive 3D models of all our Jacks and Actuators. www.joycedayton.com J 0YCE L INEAR AC T U AT O R S LA152L 1500 POUND DC WITH LIMIT SWITCH Note: Drawings are artist’s conception — not for certification; dimensions are subject to change without notice.

Open the catalog to page 8
Linear Actuators Catalogs - 9

1-800-523-5204 Visit our website now for 2D and Interactive 3D models of all our Jacks and Actuators. www.joycedayton.com 155 J 0YCE L INEAR AC T U AT O R S LA152C 1500 POUND DC WITH SLIP CLUTCH Note: Drawings are artist’s conception — not for certification; dimensions are subject to change without notice.

Open the catalog to page 9
Linear Actuators Catalogs - 10

156 1-800-523-5204 Visit our website now for 2D and Interactive 3D models of all our Jacks and Actuators. www.joycedayton.com J 0YCE L INEAR AC T U AT O R S LA155L LA155P 1500 POUND AC WITH LIMIT SWITCH Note: Drawings are artist’s conception — not for certification; dimensions are subject to change without notice.

Open the catalog to page 10
