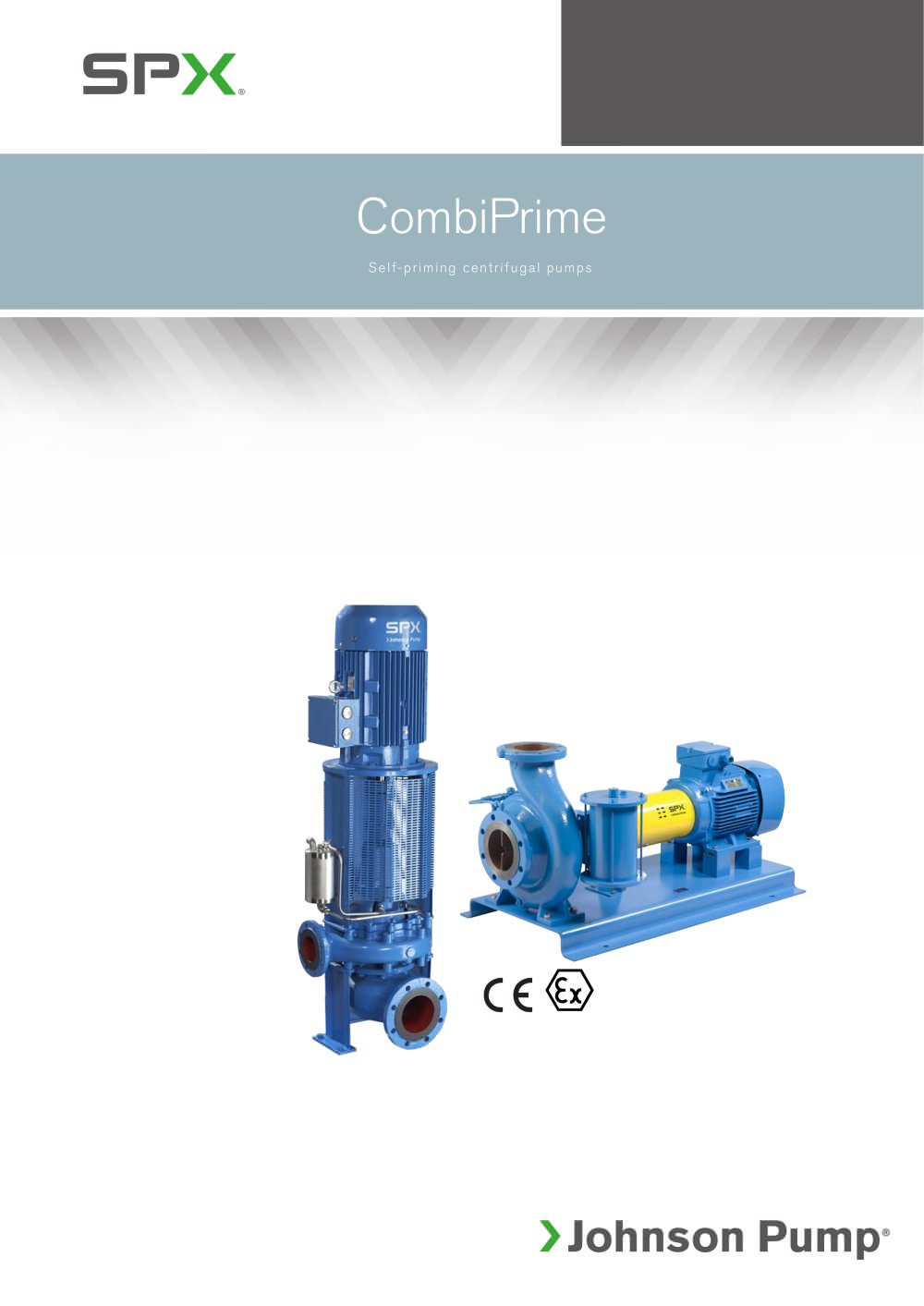

Self-priming centrifugal pumps

The SPX Johnson Pump Combi system is a modular programme of single stage centrifugal pumps with a high degree of CombiPrime Self-priming centrifugal pumps CombiPrime is a series of self-priming centrifugal pumps, suited for pumping interchangeability of parts between the clean or slightly polluted liquids, with low viscosity. The pumps are available in different pump constructions. horizontal as well as in vertical construction. The pump’s self-priming ability is performed by a built-in vacuum pump, based upon the liquid ring principle. The Combi pumps cover an extensive series The most important...

Typical product applications When reliable, direct duty is of ‘prime’ importance! Shipbuilding CombiPrime pumps can handle fresh water as well as sea water, both clean and slightly contaminated. Common applications aboard ships are fire-fighting and general duty • Always ready for direct use • Available in horizontal or vertical construction • Sea water resistant version available • High pump efficiency benefit that serves well in the • Suitable for a wide span of duties narrow spaced machine rooms. • Rigid construction General industrial duty • Back/Top Pull Out principle CombiPrime pumps can...

Features and benefits E XT E R N A L PA R T S • all external parts connected with the self-priming stage of the pump are made of stainless steel P U M P CA S I N G • hydraulic performance meet EN 733 (DIN 24255) • reliable operation in all circumstances I M PE LLE R • flange connections according to EN 1092-2 ND 10 (DIN 2532). • closed impeller • replaceable wear ring • back vanes for hydraulic balancing • smooth suction entry • large application area • better suction capabilities • longer duty life • low axial forces resulting in extended bearing life • better suction capabilities • reliable...

• grease lubricated bearing construction • roller bearing at pump end • two paired angular contact ball bearings at drive end • adjustable in axial direction for adjustment self-priming wheel • long bearing life time S HAFT S EALI NG • mechanical seals with bellows according EN 12756 (DIN 24960), on shaft sleeves • lip seals, running on shaft sleeves with hardened wear-resistant layers • standard EN(DIN) seal makes • shaft sealing option for liquids containing abrasive particles LANTE R N PI ECE • steel profile elements VA C U U M P U M P • operates according to liquid ring principle • externally...

Built-in vacuum pump The built-in vacuum pump makes it possible to pump a liquid/ air mixture or exclusively air during the suction phase. Vacuum and centrifugal pumps use the same drive mechanism, but they operate independently. This makes the CombiPrime extremely flexible, with regard to both application and installation. To maintain adequate operation of the vacuum pump a sufficient supply of service liquid to the vacuum pump is necessary. Excess service liquid is drained. There are 2 ways of doing this: • a service liquid tank, where liquid and air are being separated and vented and drained...

Self-priming centrifugal pumps Your local contact: Dr. A.F. Philipsweg 51, 9403 AD Assen P.O. Box 9, 9400 AA Assen, THE NETHERLANDS P: +31 (0)592 37 67 67 F: +31 (0)592 37 67 60 E: [email protected] SPX reserves the right to incorporate our latest design and material changes without notice or obligation. Design features, materials of construction and dimensional data, as described in this bulletin, are provided for your information only and should not be relied upon unless confirmed in writing. Please contact your local sales representative for product availability in your region. For more...
