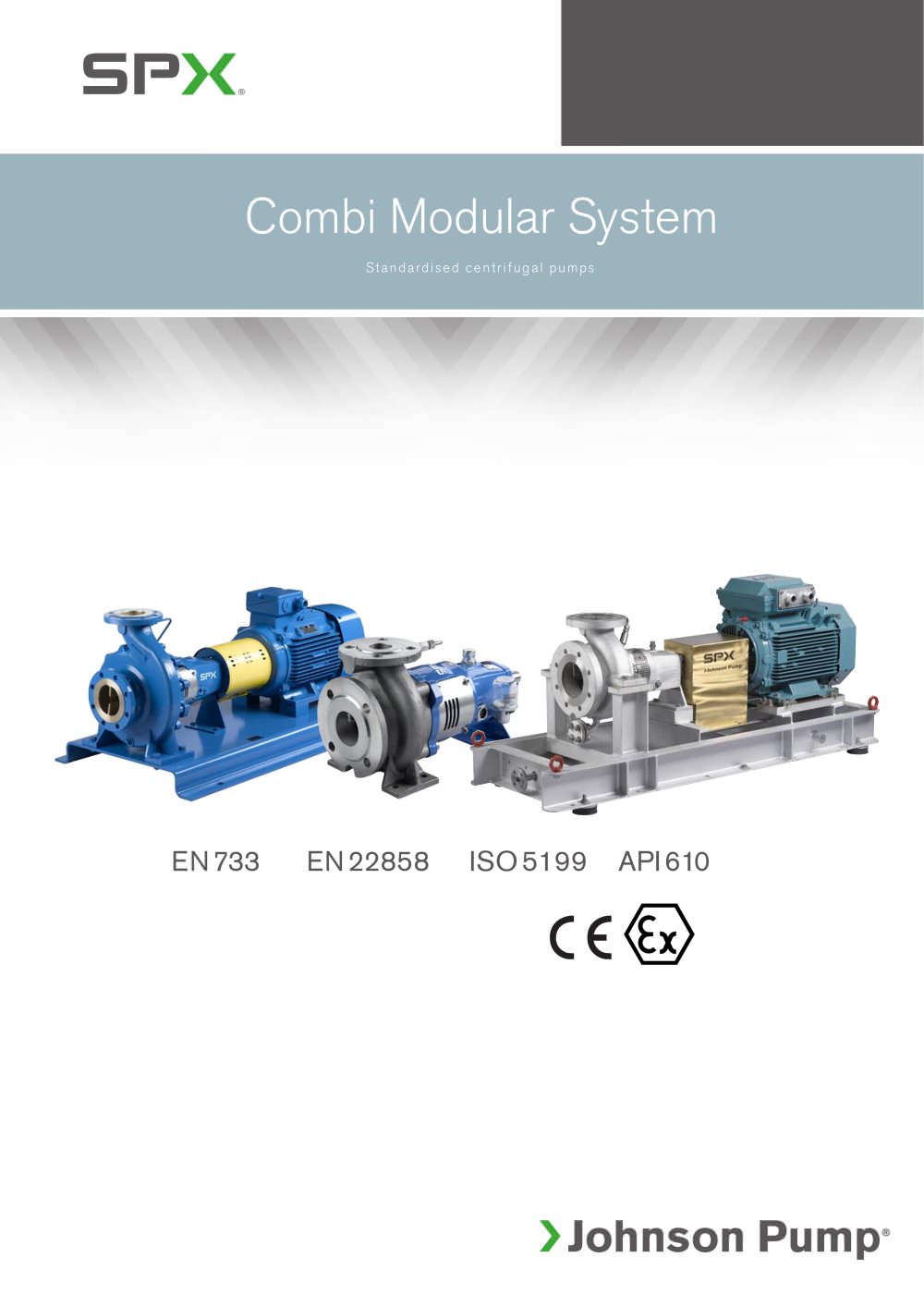

Combi Modular System Standardised centrifugal pumps

SPX Johnson Pump brand water, chemical and petrochemical standardised pumps represent a range of horizontal centrifugal pumps designed and manufactured in our plants in accordance with EN 733 (DIN 24255), ISO 5199 & EN 22858 (ISO 2858 / DIN 24256) or API 610. A characteristic of our standardised pumps is the large number of material, shaft seal and bearing system options available. This allows us to offer a pump nearly tailor-made for your application using standard components. Our modular design provides for maximum interchangeability of components between the variants and also with other...

Technical Data Max. capacity: Max. head: Max. system pressure: Max. temp.: Max. speed: Technical Data Max. capacity: Max. head: Max. system pressure: Operating temp. range: Max. viscosity: Max. speed: other materials upon request SPX Johnson Pump brand chemical standardised pump complies entirely to ISO 5199, which comprises important technical guidelines for “Chemical pumps” to ensure optimal reliability. The pump represents a range of horizontal centrifugal pumps, designed to EN 22858 (ISO 2858 / DIN 24256) for heavy duty applications as a process pump in the chemical industry. Flange...

Combi Modular System The Combi system is a modular programme of single stage d Hy between the different pump constructions. centrifugal pumps with a high degree of interchangeability of parts The Combi pumps cover an extensive series of centrifugal pumps which can be supplied as horizontal, vertical and submerged pumps. A number of standards were taken into account in the designing of this pump series; EN 733 (DIN 24255), EN 22858 (ISO 2858 / DIN 24256), ISO 5199 and API 610. COM PON E NT MOD U LE S The Combi system design can be subdivided into a number M1 of modules: • bearing unit B5...

Shaft sealing Stuffing box packings – standard type S2 Soft packing ring, shaft sleeve S3 Soft packing ring, shaft sleeve, lantern ring S4 Soft packing ring, shaft sleeve, cooling jacket The standardised Combi pumps offer a wide range of shaft sealing options in a variety of materials from stuffing box packings to mechanical seals to seal-less solutions, guaranteeing the optimum shaft sealing for your application. Thanks to the Combi modular system the builtin geometry is fixed for each shaft diameter. This means that all shaft seal variants can be built into the same space in the pump...

Configuration options In addition to the standardised horizontal end-suction centrifugal pumps the Combi family offers a number of configurations to suit nearly every application need. In-Line pump casing design Compact monobloc design • Space-saving • Stub shaft and lantern piece assembly • EC standard flanged motor • Built-in circulation pumps with dry motor in a monobloc design • The pumps can also be installed vertically on a foundation • pecially shaped suction bends S ensure low-noise operation and optimum NPSH • mpeller mounted directly I on extended motor shaft or mounted on stub...

Black on white with SPX Johnson Pump SPX supplies you with a full range of documentation for our centrifugal pumps; everything from material traceability of the components, through quality assurance at our production plants to testing inMaterial traceability EN 10204 certificates house of the final products. Naturally, our pumps are CE safety certified as well as ATEX explosion protection certified. SPX can also supply you with CAD dimensional drawings of our pumps to aid in your planning process. Date Drawn 01-10-2002 Check Aut. 11-05-2004 CAD DRAWING: NO CHANGES ALLOWED ON PAPER. DIN ISO...

Combi Modular System Standardised centrifugal pumps Your local contact: Dr. A.F. Philipsweg 51, 9403 AD Assen P.O. Box 9, 9400 AA Assen, THE NETHERLANDS P: +31 (0)592 37 67 67 F: +31 (0)592 37 67 60 E: johnson-pump.nl@spx.com SPX reserves the right to incorporate our latest design and material changes without notice or obligation. Design features, materials of construction and dimensional data, as described in this bulletin, are provided for your information only and should not be relied upon unless confirmed in writing. Please contact your local sales representative for product...
