LEDEX DC Solenoids Metric
228Pages

{{requestButtons}}

Catalog excerpts

LEDEX DC Solenoids Metric - 1

LEDEX JOHNSON S ELECTRIC " mnovating motion

Open the catalog to page 1
LEDEX DC Solenoids Metric - 2

The data used in this Product Overview may be used as a guideline only. Spcifie operational characteristics of our products may vary according to individual applications. It is strongly recommended that specific operating conditions are clarified with Johnson Electric before application. Johnson Electric Terms and Conditions of Sale apply. All data may be subject to change without notice.

Open the catalog to page 2
LEDEX DC Solenoids Metric - 3

Table of Contents Johnson Electric Group About Johnson Electric 2 About Ledex® Solenoids 4 Rotary Solenoid Overview 6 Linear Solenoid Overview 8 Value-Added Assemblies 12 Applications 14 Innovations in Solenoid Technology A Overview A2 MagShift® A3 PMA A4 CamBoltٙ A6 Rotary Solenoids Ultimag® B BTA® C Rotary D Linear Solenoids Soft Shift® E Tubular F Low Profile G Open Frame H Magnetic Latching I Battery Operation and Electronics Battery-Operated Solenoids J Electronic Drives and Coil Suppressors K Resource Information Technical Reference L Preferred Range Product Listing M1 Index M2 E...

Open the catalog to page 3
LEDEX DC Solenoids Metric - 4

The Johnson Electric Group is one of the world's largest providers of motion actuators for automotive and industrial applications Over the years, we have shipped billions of motors to more than thirty countries in over one hundred different motor applications. Johnson Electric has an annual production capacity of one billion motors. to meet all of our commitments and to support our customers' success. Product reliability and assurance of supply are our commitment. Johnson Electric delivers competitive advantage Johnson Electric delivers differentiation and innovation through its motion...

Open the catalog to page 4
LEDEX DC Solenoids Metric - 5

nuw w e are ORGANIZED Johnson Electric Holdings Limited is the parent company of the Johnson Electric Group and has been listed on the Stock Exchange of Hong Kong since 1984. The Group structure consists of a number of operating divisions and business units focused on their particular customer application or product segment Johnson Electric Group Wholly owned by Johnson Electric Holdings Limited (stock code: 179) Other Group Businesses Parlex Corporation Johnson Electric Trading Saia-Burgess Controls V-Motor Nanomotion Johnson Electric Capital China Autoparts, Inc The Group's motion...

Open the catalog to page 5
LEDEX DC Solenoids Metric - 6

Ledex® Solenoid Solutions Ledex® Solenoids are found in countless industrial applications from ATMs to zip code sorting machines. Let our experience work for you. Machine and process automation can range from the most basic on-off function to extremely complex sequencing. When the process involves linear or rotary motion, solenoids are among the best actuation devices in terms of size, cost, simplified installation, and ease of use. Below and on the facing page are some of the primary functions which are ideally suited for Ledex® solenoids, followed by several pages of actual application...

Open the catalog to page 6
LEDEX DC Solenoids Metric - 7

Pinch In medical equipment, tubes carrying body fluids must have accurately controlled flow regulation. In this example, a Soft Shift® solenoid is utilised for its variable positioning capability to smoothly pinch the tube to the operator's precise demand. Using a solenoid in this manner eliminates valves and other connecting apparatus which pose a threat for contamination or leakage. Solenoid snap-acting response and electric operation are beneficial for part rejection processes in which electronic interfacing with a photosensor or some other sensor is required. Lock/Latch Low cost,...

Open the catalog to page 7
LEDEX DC Solenoids Metric - 8

Rotary Solenoids Ultimag® Actuators Characteristics ■ Quiet, shock-free operation ■ Fast energizing time ■ High speed cycle rates ■ On/off or proportional mode operation Model 4EM 5EM 6EM Dimenfon^ 041 x 26 (mm) 049 x 31 059 x 41 Duty Cycle Continuous or intermittent Continuous or intermittent Continuous or intermittent Stroke ±22.5° ±22.5° ±22.5° Net Starting g 33 Torque (Nm) . 0.71 1.58 Speed (Hz) >78 >67 >12.8 Life 100 million cycles 100 million cycles 100 million cycles Power (W) 14.5-145 42-210 32-320 Supply (V) 3.2-115 6.6-168 9.2-313 Housing Completely enclosed design Completely...

Open the catalog to page 8
LEDEX DC Solenoids Metric - 9

Rotary Solenoids Ledex® Rotary Solenoids Characteristics Snap acting engagement Maximum versatility On/off operation Clockwise or counterclockwise Model 2E 3B 3E Dimensions (mm) 025 x 16 029 x 17 033 x 22 033 x 20 Duty Cycle Continuous or intermittent Continuous or intermittent Continuous or intermittent Continuous or intermittent Stroke Up to 45° Up to 45° Up to 67.5° Up to 67.5° Starting Torque (mNm) Up to 124 Up to 192 Up to 362 Up to 362 Holding Torque (mNm) Up to 32 Up to 56 Up to 102 Up to 102 Life 1 million cycles; 50 million cycles on extended life types 1 million cycles; 50 million...

Open the catalog to page 9
LEDEX DC Solenoids Metric - 10

Linear Solenoids Soft Shift® Solenoids Characteristics Quiet opration Slow, smooth motion Snap action On/off or velocity controlled Model 2EPM 4EPM 6EPM Dimensions (mm) 029 x 25 033 x 31 040 x 37 048 x 49 057 x 56 Duty Cycle Continuous or intermittent Continuous or intermittent Continuous or intermittent Continuous or intermittent Continuous or intermittent Stroke (mm) Up to 4.1 Up to 0.6.4 Up to 0.7.6 Up to 10.2 Up to 10.7 Force (N) Up to 17 Up to 19 Up to 33 Up to 56 Up to 131 Life 10 million cycles 10 million cycles 10 million cycles 10 million cycles 10 million cycles Power (W) 7-70...

Open the catalog to page 10
LEDEX DC Solenoids Metric - 11

Linear Solenoids Low Profile Solenoids Characteristics Push/pull engagement High force Short stroke applications On/off operation Model 0ECM 1ECM Օ 2EFM/2ECM 3EFM/3ECM Dimensions (mm) 019 x 12.7 025.5 x 13.5 028.6 x 14.7 033.3 x 17.5 Duty Cycle Continuous or intermittent Continuous or intermittent Continuous or intermittent Continuous or intermittent Stroke (mm) Up to 3.8 Up to 6 2EF: Up to 1.8 2EC: Up to 6.1 3EF: Up to 1.8 3EC: Up to 7.6 Force (N) Up to 9 Up to 14 2EF: Up to 60 2EC: Up to 17 3EF: Up to 89 3EC: Up to 24 Life 1 to 5 million cycles 1 to 5 million cycles 1 to 5 million cycles...

Open the catalog to page 11
LEDEX DC Solenoids Metric - 12

Linear Solenoids Box Frame Solenoids Characteristics ■ Pull-in opration (push types available) ■ Higher efficiency ■ On/off operation ■ Continuous or intermittent duty Model B4HDM B14M «/B14M-L a B16M «/B16M-L*a B17M 镕/B17M-L» a Dimensions H x W x L (mm) 41.4 x 36.8 x 55.4 30.0 x 23.9 x 47.2 25.9 x 20.1 x 36.8 12.2 x 9.8 x 25.1 15.0 x 13.0 x 24.1 Duty Cycle Continuous or intermittent Continuous or intermittent Continuous or intermittent Continuous or intermittent Continuous or intermittent Stroke (mm) Up to 25 Up to 25 Up to 15 Up to 4 Up to 4.5 Force (N) Up to 102 Up to 31 Up to 24 Up to 4...

Open the catalog to page 12

All Johnson Electric catalogs and technical brochures

  1. SMART METERING

    14 Pages

  2. Saia Motors

    157 Pages

  3. Secure Flex

    1 Pages

  4. Diverter Valve

    13 Pages

  5. vd751(0)-101

    2 Pages

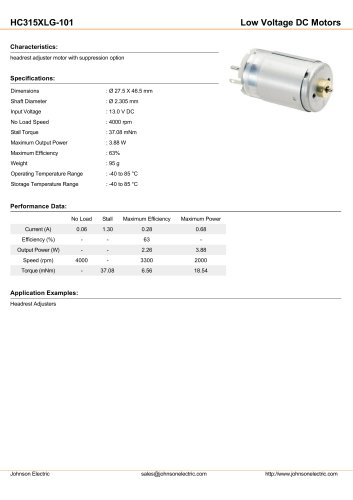

  6. hc315xlg-101

    2 Pages

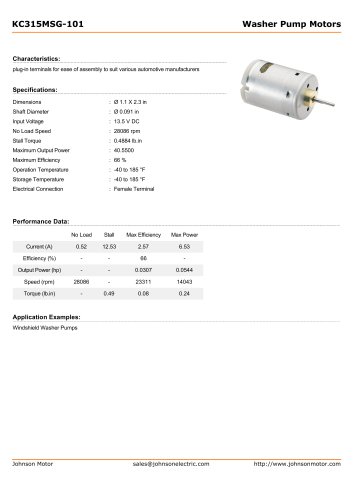

  7. kc315msg-101

    2 Pages

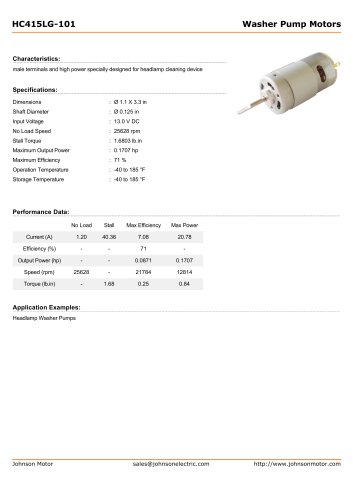

  8. HC415LG-101

    2 Pages

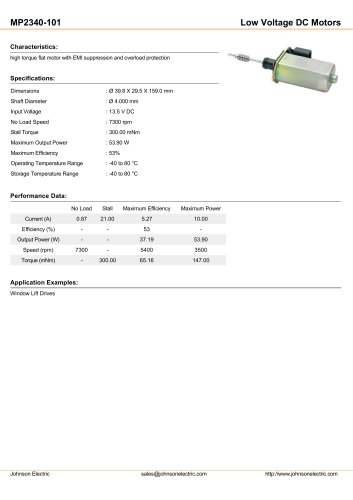

  9. mp2340-101

    2 Pages

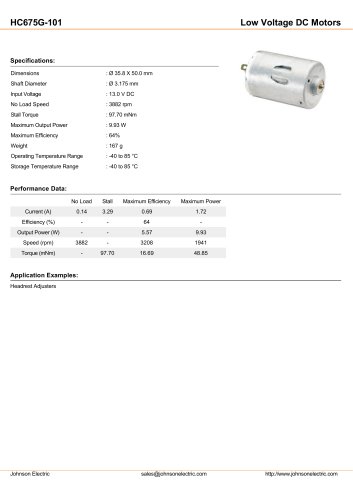

  10. hc675g-101

    2 Pages

  11. hc658ulg-101

    2 Pages

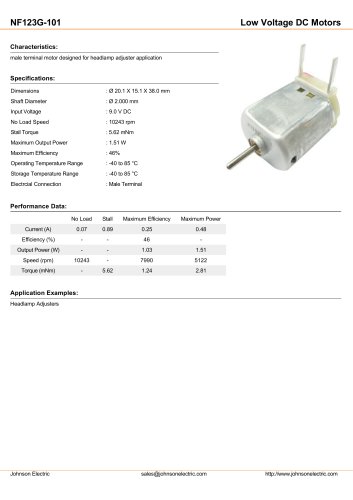

  12. NF123g-101

    2 Pages

  13. mo25wj-101

    2 Pages

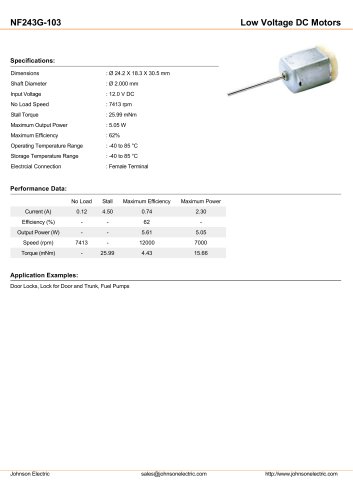

  14. nf243g-103

    2 Pages

  15. hF658ulg-105

    2 Pages

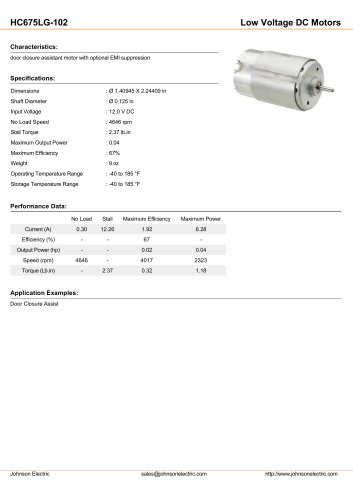

  16. hc675lg-102
