EDM
6Pages

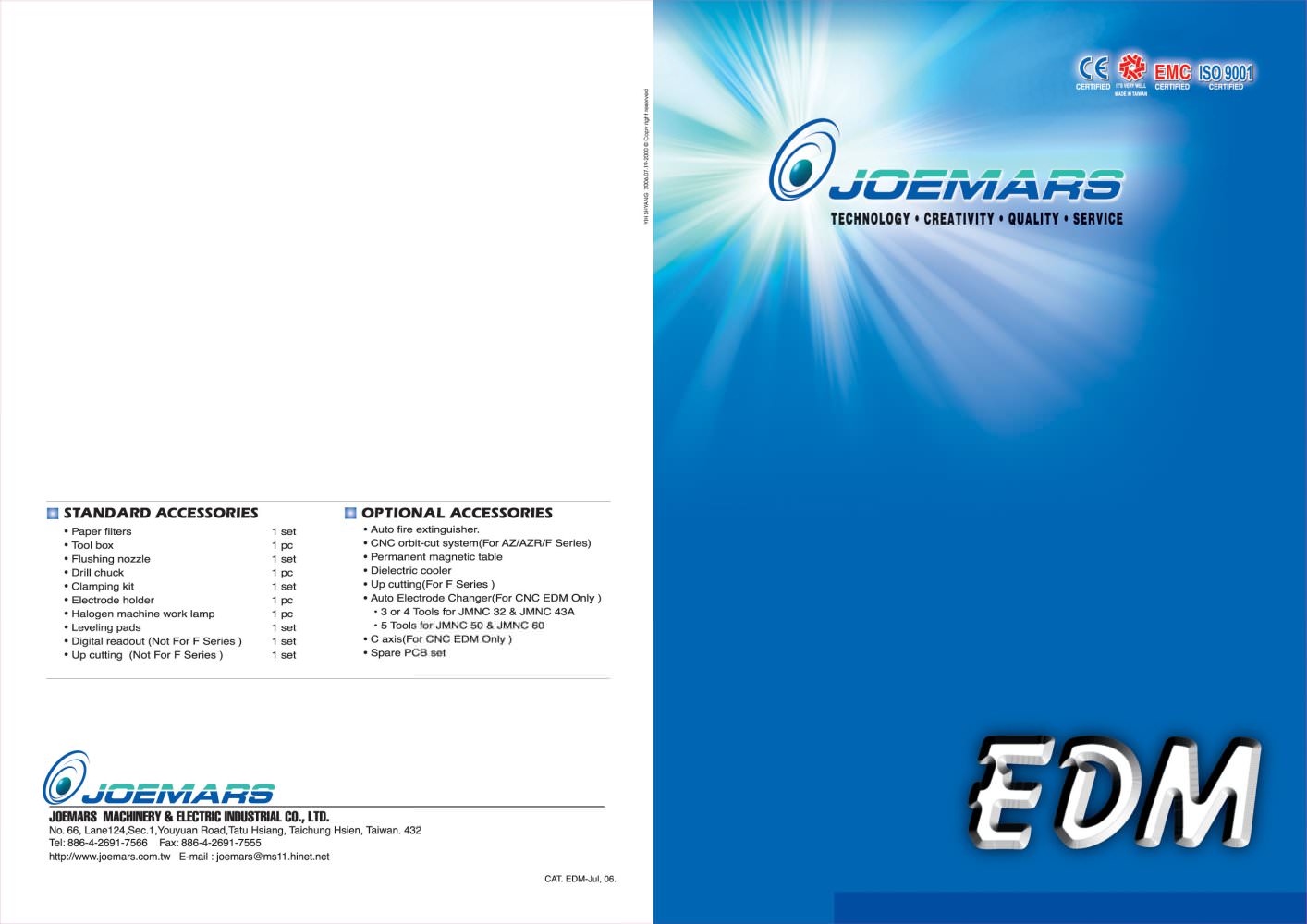

• Halogen machine work lamp 1 pc • Digital readout (Not For F Series ) 1 set • Auto fire extinguisher. • CNC orbit-cut system(For AZ/AZR/F Series) • Permanent magnetic table • Dielectric cooler • Auto Electrode Changer(For CNC EDM Only ) • 3 or 4 Tools for JMNC 32 & JMNC 43A • 5 Tools for JMNC 50 & JMNC 60 JOEMARS MACHINERY & ELECTRIC INDUSTRIAL CO., LTD. No. 66, Lane124,Sec.1,Youyuan Road.Tatu Hsiang, Taichung Hsien, Taiwan. 432 http://www.joemars.com.tw E-mail : joemars@ms11 .hinet.net

■AZR/AZDR SERIES • STATE-of-the-ART ZNC FUZZY EDM. [AZR/AZDR SERIES ■ STATE-of-the-ART ZNC FUZZY EDM. The Main Features Of JOEMARS Fuzzy Logic Control System The JOEMARS New Fuzzy Logic Control System concept: gnition time time time Fuzzy control JOEMARS New Fuzzy Logic Control Sensor (hat exceeds a skilled operator Optimizes machining conditions (Off time, sparking gap, Servo sens., Flushing hight, Working time) FOR AUTO MACHINING FROM ROUGH TO FINE FINISHING. Total of 50 programs, each program can do a single step, 5 steps or a maximum of 10 steps machining (option) and each step includes...

UNIT FEATURES 1. Adopt Heidenhain TNC416 CNC EDM CONTROLLER. 2. Most advanced "L.W.F" circuits to decrease the electrode wear, especially at the sharp corners. 3. Special "TRACKING MODE" off time control circuits to prevent 4. X,Y,Z 3 axes moves simultaneously to machining high precise, sophisticated molds. 5. Dialogue programming and easy to operate. 6. Using "MOSFET" sparking circuit to enhance performance and get the big areas of mirror finish easily. 7. The whole CNC power supply unit is designed with module boxes to keep simple maintenance & service. 8. Dual voltage ( high / low...

■HD/P SERIES-3 AXES FULL CNC EDM. COVERING THE ENTIRE SPECTRUM OF CNC EDM TECHNOLOGY Z-axis Vertical machining (Z-) Orbiting machining Lateral machining Orbiting machining Taper machining Orbiting machining Orbiting machining Helical machining Repetitive machining Finding center (inside) Orbiting machining Orbiting machining C-axis index machining (option) C-axis Helical-gear machining (option, & HD series only) Orbiting machining Finding center (outside) 2 axes lateral machining Orbiting machining Contour machining Orbiting machining A-axis index machining For fully automated machining.

►Advanced & simplfied operation modes ► Clear & concise & well organized display • Built-in 256 sets of machining data for different materials machining from rough to fine surface finishing. ADVANCED, RELIABLE YOUR BEST PARTNER!! ► Built-in running & orbiting modes for quick & easy programs editting. □ THE MAIN FEATURES Of THE CNC POWER SUPPLY •486 PC Based industrial grade computer to enchance processing time & highest • Built-in 8 sets of most optimized machining datas (Cu-St, Cu-AI, Gr-St, Gr-AI, St-St, Cu-WC, CuW-Wc & others) for machining different materials from rough to fine surface...

MACHINE UNIT SPECIFICATIONS (ZNC) Work table size Ram platen to work table Max.electrode weight Max.workpiece weight Work tank (WxDxH) Weight of machine unit Outside dimensions (WxDxH) ZNC DIELECTRIC TANK UNIT CNC SERIES MACHINE UNIT (JMNC SERIES) CNC SERIES MACHINE DIELECTRIC TANK Filter method Outside Dimensions (WxDxH) * PS: JMNC850 / JMNC1270 / JMNC2010 work lank door is designed with hydraulic control. * GENARATOR il more than 125 AMP. will be separated into 2 cabinets. * All specifications and design subject to change without notices. * CE models are available upon request.
