HST-9100 Optical Emission Spectrometers
HST-9100 Optical Emission Spectrometers
The HST-9100 Optical Emission Spectrometer is designed for comprehensive solutions in the metals industry. It utilizes full-digital technology, replacing traditional photomultiplier tube technology, and features a vacuum optical chamber, advanced CCD detectors, and a high-speed data readout system. This ensures high performance, low detection limits, and stable, repeatable results, suitable for laboratory standards. It is widely used in metallurgy, casting, and machinery processing for quality control.
- Optical System: Focal length of 400mm, wavelength range of 130nm-800nm, high-resolution CCD multi-detectors, and automatic vacuum control within 6-20 pa.
- Spark Source: Digital arc and spark source with a frequency of 100-1000Hz, discharge current of 1-400A, and ignition voltage over 15000V.
- Processor: High-speed data synchronization for acquisition and processing.
- Spark Stand: Features tungsten electrode technology, thermal deformation self-compensation, and minimal argon consumption.
- Measurable Elements: Includes Fe, Al, Cu, Ni, Ti, Co, Zn, Sn, Mg, Pb, among others.
- Physical and Environmental: Dimensions are 800mm x 700mm x 470mm, weight approximately 100kg, storage temperature 0C-45C, operating temperature 10C-35C (recommended 23±2C).
- Power and Argon Requirements: Power supply of AC220V/50Hz, power consumption of 700W during excitation and 100W on standby, argon quality of 99.999% with a pressure over 4Mpa, and consumption of 5L/min during spark mode.
- Interface: Ethernet data transmission based on DM9000A.
Catalog excerpts

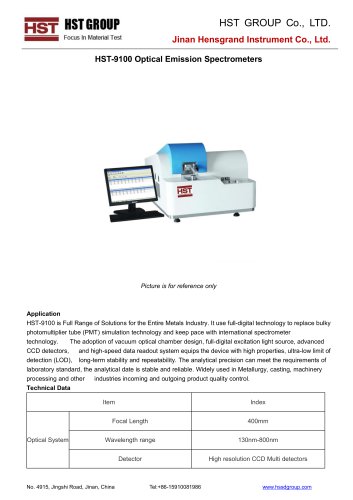

HST GROUP Co., LTD. Jinan Hensgrand Instrument Co., Ltd.HST-9100 Optical Emission Spectrometers Application HST-9100 is Full Range of Solutions for the Entire Metals Industry. It use full-digital technology to replace bulky photomultiplier tube (PMT) simulation technology and keep pace with international spectrometer technology. The adoption of vacuum optical chamber design, full-digital excitation light source, advanced CCD detectors, and high-speed data readout system equips the device with high properties, ultra-low limit of detection (LOD), long-term stability and repeatability. The analytical precision can meet the requirements of laboratory standard, the analytical date is stable and reliable. Widely used in Metallurgy, casting, machinery processing and other industries incoming and outgoing product quality control. No. 4915, Jingshi Road, Jinan, China
Open the catalog to page 1
HST GROUP Co., LTD. Jinan Hensgrand Instrument Co., Ltd. No. 4915, Jingshi Road, Jinan, China
Open the catalog to page 2
HST GROUP Co., LTD. Jinan Hensgrand Instrument Co., Ltd. NO. 4915, West Jingshi Road, Jinan 250012, PR CHINA. Tel/Whatsapp: +86-159 1008 1986 www.hssdgroup.com - e-mail: [email protected]
