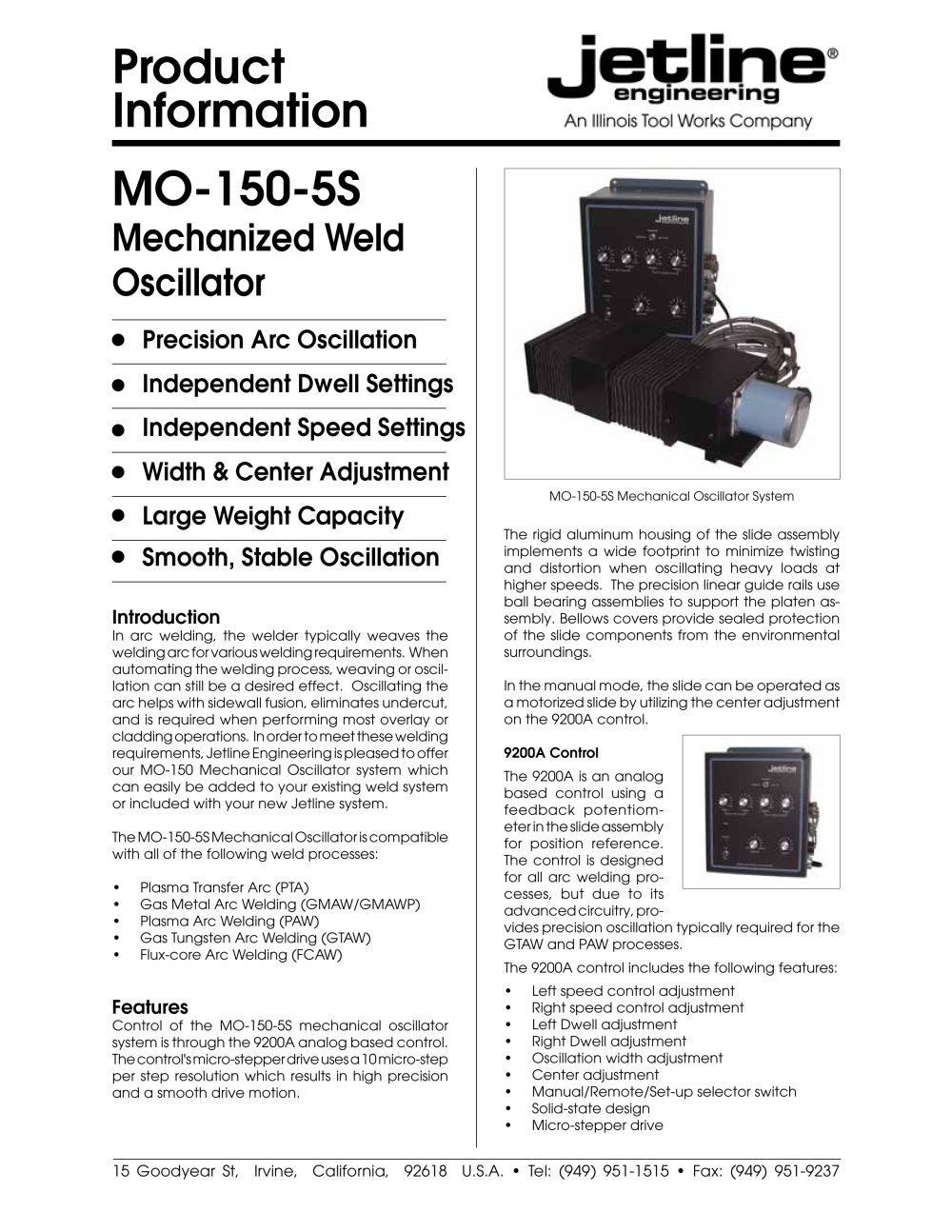

9200A Control > MO-150-5S Mechanical Oscillator System The 9200A is an analog based control using a feedback potentiom- eter in the slide assembly for position reference. The control is designed for all arc welding pro- cesses, but due to its advanced circuitry, pro- vides precision oscillation typically required for the GTAW and PAW processes.The 9200A control includes the following features: Left speed control adjustmentՕ Right speed control adjustment Left Dwell adjustment Օ Right Dwell adjustment Oscillation width adjustment Օ Center adjustment Manual/Remote/Set-up selector switch Օ Solid-state design Micro-stepper drive The rigid aluminum housing of the slide assembly implements a wide footprint to minimize twisting and distortion when oscillating heavy loads at higher speeds. The precision linear guide rails use ball bearing assemblies to support the platen as- sembly. Bellows covers provide sealed protection of the slide components from the environmental surroundings.In the manual mode, the slide can be operated as a motorized slide by utilizing the center adjustment on the 9200A control. > In arc welding, the welder typically weaves the welding arc for various welding requirements. When automating the welding process, weaving or oscil- lation can still be a desired effect. Oscillating the arc helps with sidewall fusion, eliminates undercut, and is required when performing most overlay or cladding operations. In order to meet these welding requirements, Jetline Engineering is pleased to offer our MO-150 Mechanical Oscillator system which can easily be added to your existing weld system or included with your new Jetline system.The MO-150-5S Mechanical Oscillator is compatible with all of the following weld processes:Օ Plasma Transfer Arc (PTA) Gas Metal Arc Welding (GMAW/GMAWP) Օ Plasma Arc Welding (PAW) Gas Tungsten Arc Welding (GTAW) Օ Flux-core Arc Welding (FCAW) > Control of the MO-150-5S mechanical oscillator system is through the 9200A analog based control. The control's micro-stepper drive uses a 10 micro-step per step resolution which results in high precision and a smooth drive motion. >
Open the catalog to page 1Weight Capacity: 150 lb (68 kg) out 2" (50 mm) Mechanical Stroke: 4.875" (123 mm) maximum Electrical Stroke: 4.625" (117.5 mm) maximum Shipping weight: 26 lb (11.8 kg) Dimensions: 4.75"H x 20.13 "W x 7"D 120 mm x 511 mm x 179 mm Slide 9200A Control Optional features: Remote interface control board & connectorՕ Remote control pendant Step oscillation Օ Extension interconnection cables Or special length 9256A interconnection cables9200A Control Remote Functions:Start/Stop: Contact ClosureStart/Stop (optional): +24 to 0 VDC Stop (optional): +24 to 0 VDC Center: 10K -3 wire Width: 10K -3...
