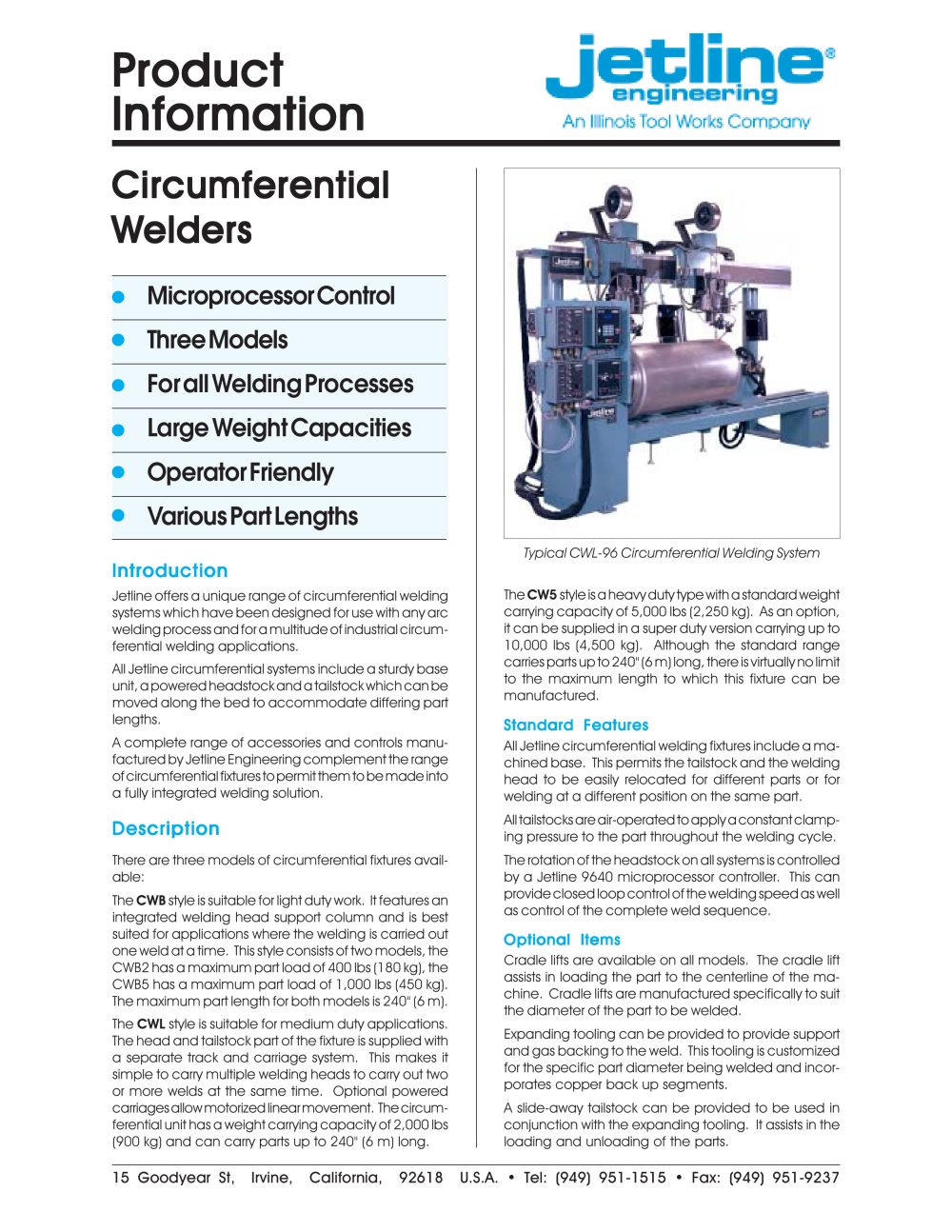

Jetline provides circumferential welding systems compatible with various arc welding processes for industrial applications. These systems include a base unit, powered headstock, and adjustable tailstock, along with accessories and controls for a comprehensive solution.

Models and Specifications

CWB Style (Light Duty): For single weld applications, available in CWB2 (400 lbs capacity) and CWB5 (1,000 lbs capacity), supporting parts up to 240" (6 m).
CWL Style (Medium Duty): Supports multiple welding heads, with a 2,000 lbs capacity and part lengths up to 240" (6 m).
CW5 Style (Heavy Duty): Standard 5,000 lbs capacity, extendable to 10,000 lbs, with virtually unlimited part length.

Standard Features
All models include a machined base for easy relocation, air-operated tailstocks for consistent clamping, and a Jetline 9640 microprocessor controller for precise welding control.

Optional Items
Available options include cradle lifts, expanding tooling, and slide-away tailstocks for easier handling.

Applications

Food Processing Equipment: CWB5 systems weld copper and stainless steel vessels using GTAW (TIG) welding.
Road Transportation: CWL-96 systems manufacture aluminum gas tanks using GMAW (MIG) welding with seamtrackers.
General Purpose: CWL-120 systems weld stainless steel and nickel alloy tubes with mechanized weld oscillators.
Pressure Vessels: CW5-96 systems support multiple carriages for GMAW (MIG) or submerged arc welding.
Chemical Storage Vessels: CW5-48 systems weld stainless steel containers for caustic chemicals.

Overview
The document details a welding system for aerospace applications, specifically for elliptical flight refueling tanks using GTAW (TIG) welding with automatic clamping and hydraulic locks.

System Specifications
The system includes three CW5 fixtures on a common base with a track, each carrying a weld head with multi-axis slides, automatic arc length control, and cold wire feed facilities.

Optional Items and Accessories

Arc Length Control: Model 401 microprocessor-controlled system with touch retract and menu-driven software.
Cold and Hot Wire Feeders: Supports wire sizes from 0.020 to 3/32".
9500 System Controller: Controls up to four welding parameters with storage for 25 weld programs.
Flexible Cable Carrier: Tracks for supply hoses and cables.
Mounting Brackets: Brackets with cross slides for torch adjustment.
Welding Gear: Compatible with GTA, Plasma, GMA, and submerged arc welding.
Seamtrackers: For longitudinal or circumferential tracking.

Contact Information
Jetline is located at 15 Goodyear St., Irvine, California 92618 USA. Contact via phone at (949) 951-1515, fax at (949) 951-9237, or email at [email protected]. More information is available on their website www.jetline.com.

Catalog excerpts

9500 System Controller The 9500 System Controller is a micro-processor-based system capable of si- multaneously controlling four welding parameters. The unit has closed loop control capabilities, this provides pa- rameter accuracy levels better than Cold and Hot Wire Feeders A full range of wire feeders, both for coldand hot wire feeding, are available. Wire sizes from 0.020 to 3/32" (0.5 to 2.4 mm) can be accommodated. Models include both two and four drive roll va- rieties. > Flexible Cable Carrier Any track can be fitted with a flexiblecable carrier to carry all the supply hoses and cables....
