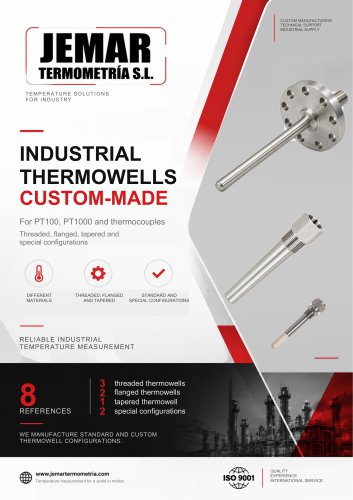

CUSTOM MANUFACTURING TECHNICAL SUPPORT INDUSTRIAL SUPPLY TEMPERATURE SOLUTIONS FOR INDUSTRY INDUSTRIAL THERMOWELLS CUSTOM-MADE For PT100, PT1000 and thermocouples Threaded, flanged, tapered and special configurations DIFFERENT MATERIALS THREADED, FLANGED AND TAPERED STANDARD AND SPECIAL CONFIGURATIONS RELIABLE INDUSTRIAL TEMPERATURE MEASUREMENT threaded thermowells flanged thermowells tapered thermowell special configurations WE MANUFACTURE STANDARD AND CUSTOM THERMOWELL CONFIGURATIONS. Temperature measurement for a world in motion QUALITY EXPERIENCE INTERNATIONAL SERVICE

IN-HOUSE MANUFACTURING JEMAR TERMOMETR^A, S.L. manufactures industrial thermowells for the installation and protection of PT100, PT1000, thermocouples and other temperature sensors. We produce standard and special configurations, adapting each thermowell to the actual requirements of the installation: material, dimensions, length, geometry, process connection and instrument connection. The products shown in this catalogue represent real, commonly manufactured configurations, but they do not limit our manufacturing capability. We can evaluate other solutions based on application specifications,...

PROTECTION ■ INSTALLATION ■ MAINTENANCE Main functions • Protect the temperature sensor • Adapt the sensor to the measuring point • Provide the process connection • Provide mechanical protection • Facilitate certain maintenance operations • Allow different mounting configurations A thermowell provides a protective barrier between the temperature sensor and the process medium. It allows PT100, PT1000, thermocouples and other sensors to be installed while reducing their direct exposure to the fluid and to certain mechanical loads within the installation. A thermowell can also facilitate maintenance...

TERMOMETRIA S.L. MEASURING POINT DEFINITION Correct selection requires knowledge of both the temperature sensor characteristics and the process conditions where it will be installed. SENSOR PROCESS PT100 • PT1000 • Thermocouple • Other sensor Define: • element type • chemical conditions • mechanical loads CONSTRUCTION CONNECTIONS Define: • outside diameter • insertion length Thread • Flange • Welded • Special Instrument: Thread • Retaining screw • Compression fitting • Special GEOMETRIES STRAIGHT ■ TAPERED ■ STEPPED ■ SPECIAL Overall length must not be confused with insertion or immersion length....

Ø12 × 10 mm threaded thermowells AISI 316 thermowell Ø12 × 10 × 200 mm Ref. TMZ12L200R1/2 Industrial thermowell manufactured from AISI 316 stainless steel for the installation and protection of temperature sensors. Its Ø12 mm outside diameter and Ø10 mm bore allow different compatible sensor configurations to be installed. Material Outside diameter male/female fitting PT100, PT1000, thermocouples and compatible sensors Longer configuration for measuring points requiring greater insertion into the equipment or process. Material Outside diameter male/female fitting Need a different length or connection?...

RETAINING SCREW ■ COMPRESSION FITTING Compact AISI 316 configuration with a threaded process connection and sensor retention by means of a screw. Outside diameter Length Process connection Instrument retention Application retaining screw Configuration designed to accommodate and secure 06 mm temperature sensors using an integrated compression fitting. The ferrule system allows the sensor position to be adjusted before final tightening. Integrated compression fitting Retention element ferrule Particularly suitable for compatible 06 mm PT100 sensors and thermocouples.

TAPERED DESIGN AISI 316 tapered thermowell Ø10 × 150 mm Ref. TMZC12L200R1/2 Industrial thermowell manufactured from AISI 316 stainless steel with a tapered geometry for the installation and protection of temperature sensors. Material PT100, RTD and thermocouples compatible with the dimensions Stem geometry Geometry is one of the parameters that must be considered when selecting a thermowell from a mechanical standpoint. Common configurations include: STRAIGHT · TAPERED · STEPPED The choice depends on the actual conditions at the measuring point and must not be based solely on sensor dimensions....

FLANGED CONNECTION Thermowell configuration for industrial installations requiring a flanged process connection. It combines an AISI 304L stainless steel flange with an AISI 316 protective sheath. Type industrial flanged thermowell Flange standard Nominal diameter Flange material Sheath material Sheath diameter Sheath length Sensor connection PT100, thermocouples and compatible sensors Custom manufacturing JEMAR can manufacture flanged thermowells with other dimensions, materials and connections according to process requirements.

AISI 304 thermowell with DN40 flange Ø21.3 × 600 mm Ref. TMZC12BL600 Industrial thermowell for measuring points requiring a flanged connection and an extended protection length. Its closed immersion end keeps the sensor separated from direct contact with the process medium. Material Outside diameter PT100, PT1000, thermocouples and compatible sensors Applications Tanks · Process piping · Machinery · Thermal installations · Process equipment Compatibility of the material, flange and dimensions must be checked against the actual operating condition

METAL + CERAMIC CONFIGURATION Special configuration combining an AISI 316 stainless steel section with ceramic protection at the immersion end. This construction is intended for thermal applications where the sensor protection must be adapted to specific operating Metal section AISI 316 Metal section length 50 mm Ceramic section length 100 mm • Industrial furnaces • Thermal processes • Heat treatment equipment • Ceramics industry • Thermocouple installations • Industrial temperature control systems The maximum operating temperature depends on the specific ceramic material, construction and process...
