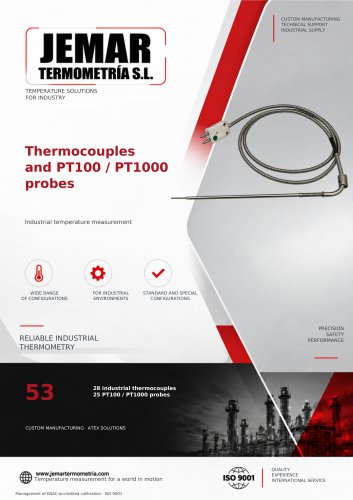

CUSTOM MANUFACTURING TECHNICAL SUPPORT INDUSTRIAL SUPPLY TEMPERATURE SOLUTIONS FOR INDUSTRY Thermocouples and PT100 / PT1000 probes Industrial temperature measurement WIDE RANGE OF CONFIGURATIONS STANDARD AND SPECIAL CONFIGURATIONS RELIABLE INDUSTRIAL THERMOMETRY PRECISION SAFETY PERFORMANCE CUSTOM MANUFACTURING · ATEX SOLUTIONS Temperature measurement for a world in motion Management of ENAC-accredited calibration · ISO 9001 QUALITY EXPERIENCE INTERNATIONAL SERVICE

INDUSTRIAL THERMOCOUPLES INDUSTRIAL THERMOCOUPLES Industrial sensors for temperature measurement, process control and custom manufacturing. Custom manufacturing · ATEX solutions · Management of ENAC-accredited calibration · ISO 9001

INDUSTRIAL THERMOCOUPLES Type K pyrometer lance at 90° Type K pyrometer lance with 90° geometry, designed for immersion temperature measurement in demanding industrial processes. It incorporates a silicon carbide protection tube Ø50 × 460 mm and a robust construction especially suited to furnaces, foundry applications and temperature control in molten metals. Type K pyrometer lance with silicon carbide protection Type K pyrometer lance with a 90° angled construction, fitted with a silicon carbide protective tube Ø50 × 460 mm. Its configuration is intended for demanding thermal processes, especially...

INDUSTRIAL THERMOCOUPLES Dual Type K thermocouple with 5 m cable Dual Type K thermocouple with ungrounded elements and a Ø6 mm probe. It incorporates a 220 mm measuring zone, 5,000 mm silicone cable with braided protection, strain-relief spring and two miniature Type K connectors. Suitable for installations requiring two independent temperature signals from the same measuring point. Type K Inconel 600 thermocouple at 90° - model 604B Type K thermocouple manufactured in Inconel 600 and formed at 90°. It has a Ø3 × 310 mm probe with a reduced sensing tip of Ø1.5 × 35 mm, approximately 1,300 mm...

INDUSTRIAL THERMOCOUPLES Type K Inconel 600 thermocouple at 90° - model 606B Type K thermocouple in Inconel 600 with a 90° construction, Ø3 × 110 mm probe and reduced sensing tip Ø1.5 × 35 mm. It incorporates approximately 1,600 mm of cable with metallic protection and a ceramic connector, configured for measurements in industrial thermal installations. Type K Inconel 600 thermocouple at 90° - model 607A Type K thermocouple in Inconel 600, formed at 90°, with a Ø3 × 230 mm probe and reduced sensing tip Ø1.5 × 35 mm. Equipped with approximately 1,450 mm of cable protected by metallic braid and...

INDUSTRIAL THERMOCOUPLES Type K Inconel 600 thermocouple Ø4.5 × 10,000 mm Long-length Type K thermocouple manufactured with Inconel 600 protection, Ø4.5 mm and 10,000 mm long. Intended for industrial installations requiring an extended, robust probe resistant to demanding thermal environments. It incorporates a connection for integration with Type K measuring instrumentation. Industrial Type K thermocouple L1000 Industrial Type K thermocouple with a Ø3 mm element and an approximate length of 1,000 mm. It incorporates an internal ceramic protection and an AISI 446 refractory outer tube Ø26.7 mm,...

INDUSTRIAL THERMOCOUPLES Compact Type J thermocouple with an approximately 05 x 70 mm probe and ceramic connector. The assembly incorporates a metal fixing plate, providing a simple and robust solution for equipment, test benches, machinery and other temperature measurement applications. Type K thermocouple with flexible construction and an approximate length of 4,500 mm. Its format allows the measuring point to be installed away from the instrument and adapted to routes where a rigid probe is impractical. Suitable for control, maintenance and temporary measurements in industrial installations....

INDUSTRIAL THERMOCOUPLES Type K contact thermocouple with stainless steel wheels Type K thermocouple for dynamic surface temperature measurement, fitted with four stainless steel wheels mounted on bearings. It incorporates an approximately 1 m coiled cable and a miniature Type K connector. Designed to measure temperature on moving surfaces such as rollers, belts, sheets and other continuous processes. Type K thermocouple with 4-20 mA transmitter Industrial Type K thermocouple with a Ø2.5 mm element and an approximate length of 1,100 mm. It incorporates AISI 316 stainless steel protection, 1/2″...

INDUSTRIAL THERMOCOUPLES Type K DRTH001 thermocouple with C610 ceramic protection Type K thermocouple, DRTH001 configuration, with class 1 wire Ø2.5 mm. It incorporates an AISI 316 sleeve Ø13.5 × 198 mm, C610 ceramic protection Ø10.5 × 198 mm and a sliding fitting with 1/2″ G connection. Configuration intended for industrial applications requiring ceramic protection and adjustable fixing. Type K Inconel 600 thermocouple Ø3 × 1,650 mm Single Type K thermocouple, ungrounded, with Inconel 600 protection Ø3 mm and a length of 1,650 mm. It includes compensation cable and a metallic fixing element...

INDUSTRIAL THERMOCOUPLES Dual Type K Inconel 600 thermocouple Ø3 × 2,500 mm Dual Type K thermocouple with Inconel 600 protection Ø3 × 2,500 mm. It incorporates a Ø6 × 50 mm sleeve and approximately 500 mm of PTFE/PTFE cable. Its dual element provides two independent signals for control, redundancy or comparison at the same process measuring point. Type K Inconel 600 thermocouple Ø6 × 115 mm with transmitter Type K thermocouple with Inconel 600 protection Ø6 × 115 mm, DIN-B head and 1/2″ G process connection. It integrates a transmitter with 4-20 mA output configured for a range of 0 to 1,000...

INDUSTRIAL THERMOCOUPLES Type K thermocouple approximately 1,200 mm long, fitted with a standard IEC connector and cable retention system. Designed for quick connection to compatible Type K instrumentation and for industrial applications requiring an elongated, easily replaceable probe. Type K sensor for contact temperature measurement on moving surfaces. It incorporates four stainless steel wheels with bearings, an approximately 1 m coiled cable and a miniature Type K connector. Suitable for thermal inspection of rollers, belts, sheets and other moving components. Custom manufacturing • ATEX...
