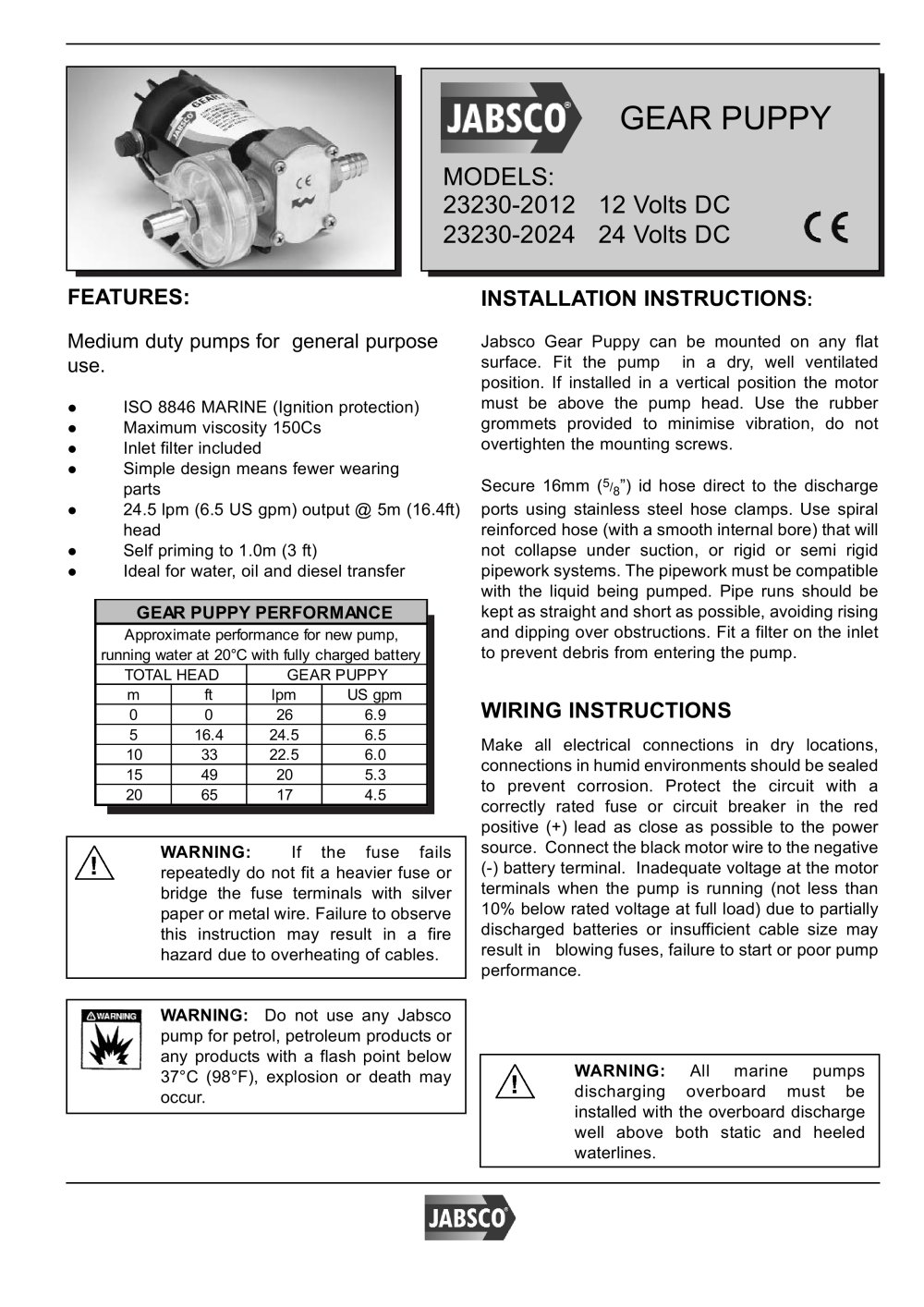

GEAR PUPPY MODELS: 23230-2012 12 Volts DC 23230-2024 24 Volts DC FEATURES: INSTALLATION INSTRUCTIONS: Medium duty pumps for general purpose use. Jabsco Gear Puppy can be mounted on any flat surface. Fit the pump in a dry, well ventilated position. If installed in a vertical position the motor must be above the pump head. Use the rubber grommets provided to minimise vibration, do not overtighten the mounting screws. ISO 8846 MARINE (Ignition protection) Maximum viscosity 150Cs Inlet filter included Simple design means fewer wearing parts 24.5 lpm (6.5 US gpm) output @ 5m (16.4ft) head Self priming to 1.0m (3 ft) Ideal for water, oil and diesel transfer GEAR PUPPY PERFORMANCE Approximate performance for new pump, running water at 20°C with fully charged battery TOTAL HEAD GEAR PUPPY m ft lpm US gpm 0 0 26 6.9 5 16.4 24.5 6.5 10 33 22.5 6.0 15 49 20 5.3 20 65 17 4.5 WARNING: If the fuse fails repeatedly do not fit a heavier fuse or bridge the fuse terminals with silver paper or metal wire. Failure to observe this instruction may result in a fire hazard due to overheating of cables. WARNING: Do not use any Jabsco pump for petrol, petroleum products or any products with a flash point below 37°C (98°F), explosion or death may occur. Secure 16mm (5/8”) id hose direct to the discharge ports using stainless steel hose clamps. Use spiral reinforced hose (with a smooth internal bore) that will not collapse under suction, or rigid or semi rigid pipework systems. The pipework must be compatible with the liquid being pumped. Pipe runs should be kept as straight and short as possible, avoiding rising and dipping over obstructions. Fit a filter on the inlet to prevent debris from entering the pump. WIRING INSTRUCTIONS Make all electrical connections in dry locations, connections in humid environments should be sealed to prevent corrosion. Protect the circuit with a correctly rated fuse or circuit breaker in the red positive (+) lead as close as possible to the power source. Connect the black motor wire to the negative (-) battery terminal. Inadequate voltage at the motor terminals when the pump is running (not less than 10% below rated voltage at full load) due to partially discharged batteries or insufficient cable size may result in blowing fuses, failure to start or poor pump performance. WARNING: All marine pumps discharging overboard must be installed with the overboard discharge well above both static and heeled waterlines.

Electrical Wiring Information PART NUMBERS MAXIMUM FUSE SIZE MINIMUM WIRE SIZE MAXIMUM LENGTH BETWEEN (+) & (-) BATTERY TERMINALS * For longer installations, fit thicker cables DIMENSIONAL DRAWING WEIGHT: Gear Puppy - 2.2kg (4.8lb) All dimensions are in mm USA UK CANADA JAPAN GERMANY Warranty: All products of the company are sold and all services of the company are offered subject to the company’s warranty and terms and conditions of sale, copies of which will be furnished upon request. ©Copyright 2003 ITT Industries Discover Jabsco at www.jabsco.com
