DRUM PUMP MOTORS MODEL 16450 SERIES D100 SIZE - 1

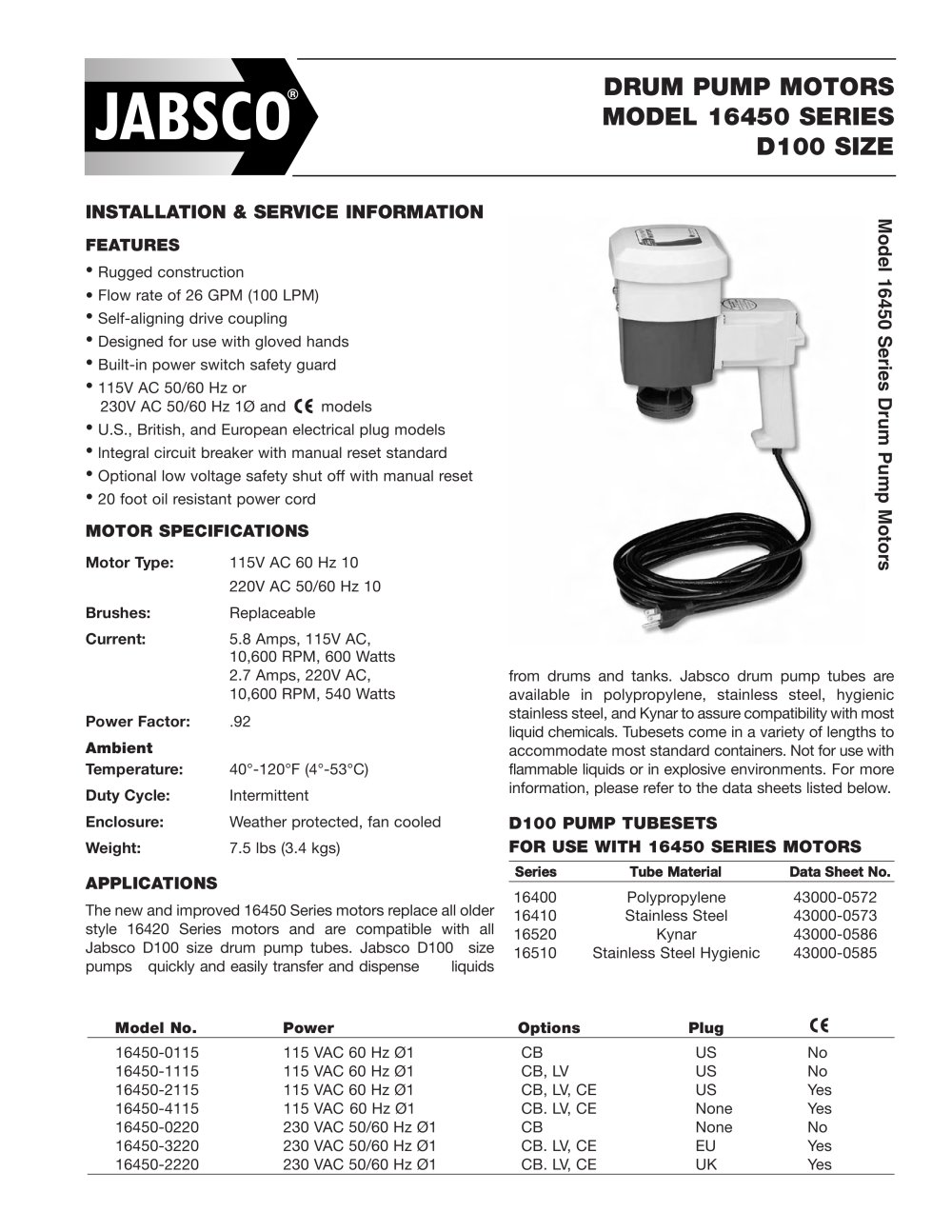

DRUM PUMP MOTORS INSTALLATION & SERVICE INFORMATION • Rugged construction • Self-aligning drive coupling • Designed for use with gloved hands • Built-in power switch safety guard • U.S., British, and European electrical plug models • Integral circuit breaker with manual reset standard • Optional low voltage safety shut off with manual reset • 20 foot oil resistant power cord MOTOR SPECIFICATIONS Brushes: Replaceable Weather protected, fan cooled Power Factor: Duty Cycle: The new and improved 16450 Series motors replace all older style 16420 Series motors and are compatible with all Jabsco D100 size drum pump tubes. Jabsco D100 size pumps quickly and easily transfer and dispense liquids from drums and tanks. Jabsco drum pump tubes are available in polypropylene, stainless steel, hygienic stainless steel, and Kynarto assure compatibility with most liquid chemicals. Tubesets come in a variety of lengths to accommodate most standard containers. Not for use with flammable liquids or in explosive environments. For more information, please refer to the data sheets listed below. FOR USE WITH 16450 SERIES MOTORS Tube Material 16510 Stainless Steel Hygienic 43000-0585 Model No._Power_Options_Plug_C€^

Open the catalog to page 1

DRUM PUMP MOTORS MODEL 16450 SERIES D100 SIZE - 2

SAFETY PRACTICES Protective clothing, gloves and safety glasses should be worn when operating the Jabsco drum pump. All Explosion hazard. Do not pump gasoline or other flammable liquids. resulting in injury or death. Hazardous Voltage. Prior to any disassembly or assembly of the Jabsco Drum Pump Motor, make certain that all electrical power to the motor is disconnected and prevented from accidentally being connected. Failure to do so can cause Explosion hazard. Do not pump gasoline or other flammable liquids. resulting in injury or death. standard safety practices must be followed. Jabsco...

Open the catalog to page 2

DRUM PUMP MOTORS MODEL 16450 SERIES D100 SIZE - 3

EXPLODED VIEW D100 SIZE MOTOR PARTS LIST Power cord plug not shown. * Motor brushes not shown. Jabsco drum pump motors are protected from prolonged overload conditions by an internal manual reset circuit breaker. If the motor stops due to an overload condition, turn the ON/OFF switch to OFF and allow the motor to cool. Reset the circuit breaker by manually turning the power switch to OFF. Resume normal operation by turning the power switch ON. Spare Parts Use only Jabsco brand service parts. Consult this data sheet for repair kit part numbers. Remove all power prior to service. Clean and...

Open the catalog to page 3

DRUM PUMP MOTORS MODEL 16450 SERIES D100 SIZE - 4

0 20 40 60 80 100 % REDUCTION IN FLOW D100 PUMP PERFORMANCE CURVES 10 16 8 FLOW 12 6 8 4 AMPS 4 2 0 20 40 60 80 50 10 40 8 FLOW 30 6 AMPS 20 4 10 2 0 0 0 12 AMPS 20 60 TOTAL HEAD IN FEET OF WATER 12 AMPS TOTAL HEAD IN METERS OF HEAD 24 100 0 0 FLOW IN LITERS PER MINUTE 5 10 15 20 25 FLOW IN GALLONS PER MINUTE VISCOSITY REDUCTION CURVE 800 D100 LIMIT VISCOSITY cPi 700 600 500 400 300 200 100 0 0 20 40 60 80 100 % REDUCTION IN FLOW 60 10 16 8 FLOW 12 6 8 4 AMPS 4 Storage Bracket Adjustable Nozzle 16470-0000 USA 0 23500-0000B Europe 20 0 40 2 18753-0070 USA 0 23510-0010 Europe 60 80 100 12 50...
