AMAZON MANUAL BILGE PUMPS

AMAZON MANUAL BILGE PUMPS
8Pages

Catalog excerpts

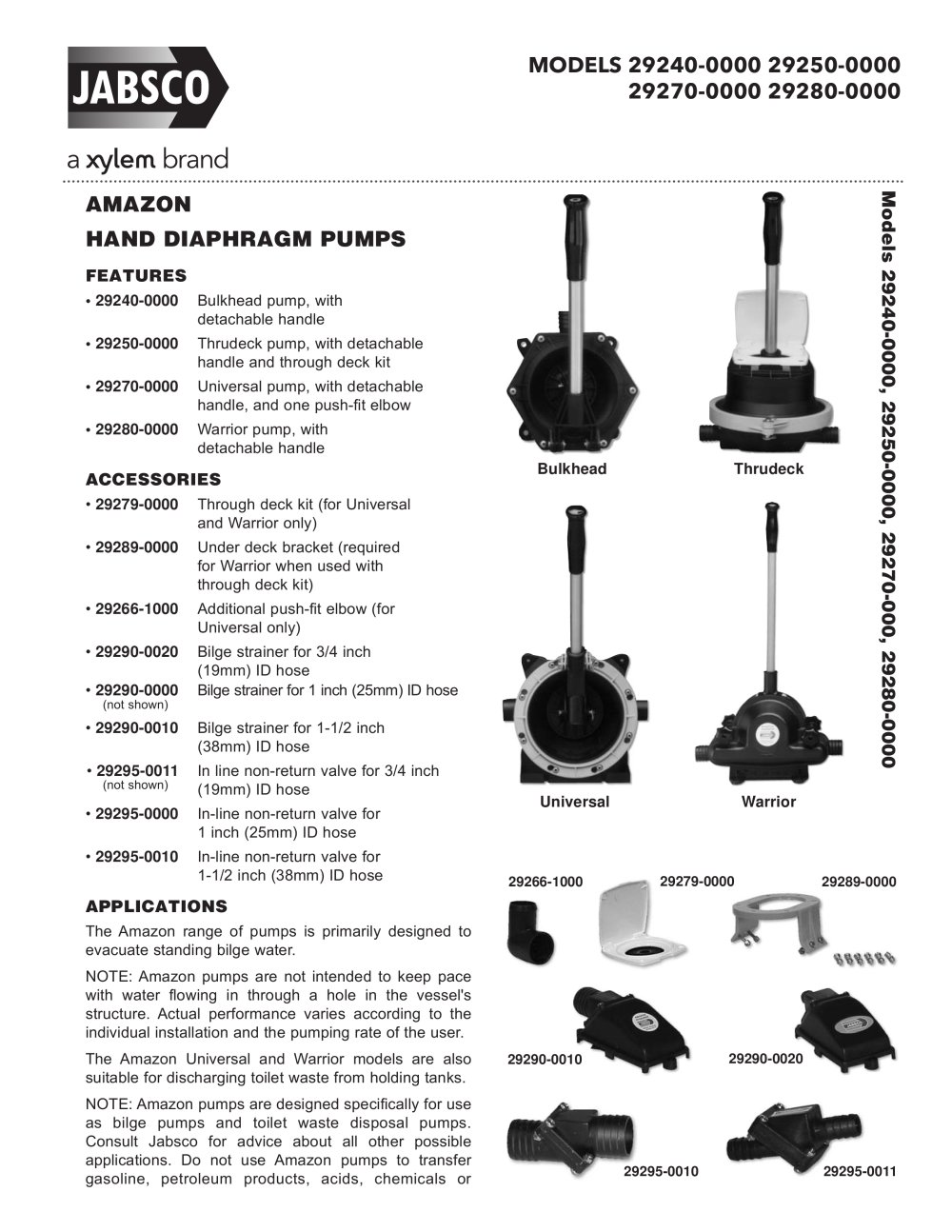

HAND DIAPHRAGM PUMPS FEATURES • 29240-0000 Bulkhead pump, with detachable handle Thrudeck pump, with detachable handle and through deck kit Universal pump, with detachable handle, and one push-fit elbow Warrior pump, with detachable handle Additional push-fit elbow (for Universal only) Under deck bracket (required for Warrior when used with through deck kit) Through deck kit (for Universal and Warrior only) Bilge strainer for 3/4 inch (19mm) ID hose Bilge strainer for 1 inch (25mm) ID hose Bilge strainer for 1-1/2 inch (38mm) ID hose In line non-return valve for 3/4 inch (19mm) ID hose In-line non-return valve for 1 inch (25mm) ID hose In-line non-return valve for 1-1/2 inch (38mm) ID hose The Amazon range of pumps is primarily designed to evacuate standing bilge water. NOTE: Amazon pumps are not intended to keep pace with water flowing in through a hole in the vessel's structure. Actual performance varies according to the individual installation and the pumping rate of the user. The Amazon Universal and Warrior models are also suitable for discharging toilet waste from holding tanks. NOTE: Amazon pumps are designed specifically for use as bilge pumps and toilet waste disposal pumps. Consult Jabsco for advice about all other possible applications. Do not use Amazon pumps to transfer gasoline, petroleum products, acids, chemicals or

Open the catalog to page 1

INSTALLATION INSTRUCTIONS INTRODUCTION An Amazon pump will become an integral part of your bilge pumping system. Correct installation of the whole system is essential if you want the pump to perform properly, operate reliably and safely, and to give satisfactory length of life. LOCATION Your pump is delivered ready for installation, but all Amazon pumps can be adapted by the installer to suit different types of location. • Select a location that allows you to pump comfortably for long periods of time, preferably with the handle rocking vertically towards and away from you at waist height....

Open the catalog to page 2

EXPLODED VIEW 29240-0000 Bulkhead DIMENSIONS Inches (Millimeters)

Open the catalog to page 3

A. LIMITED WARRANTY: Jabsco warrants that at the time of shipment, the products manufactured by Jabsco and sold hereunder shall be in conformity with applicable written specifications and descriptions referred to or set forth herein, free from defects in material and workmanship, merchantable, and suitable for a particular purpose, provided such is implied by State law under the circumstances of this sale. 1. Jabsco agrees to repair or furnish a replacement for, but not to remove or install, any product or component thereof which, within one (1) year from date of purchase, shall upon test...

Open the catalog to page 7

AMAZON BULKHEAD AMAZON THRUDECK • Repositionable ports and body offer 96 assembly variations • Sustainable outputs up to 10 GPM (6.1 Strokes/gal) CONNECTIONS FOR 1 INCH ID HOSE • The ultimate compact through deck pump with 16 port variations relative to the body 29240-0000 Bulkhead pump, with detachable handle, Ship. Wt. 1-1/2 lb (0.7 kg) • Loosening just one screw lets you clear blockages or re-position the body anywhere through 360° AMAZON UNIVERSAL • Push-fit port (one included – optional additional elbow available) swivel through 360° to increase flexibility of installation • Unique...
