370 Size Hygienic Stainless Steel FIP Pump

370 Size Hygienic Stainless Steel FIP Pump
2Pages

Catalog excerpts

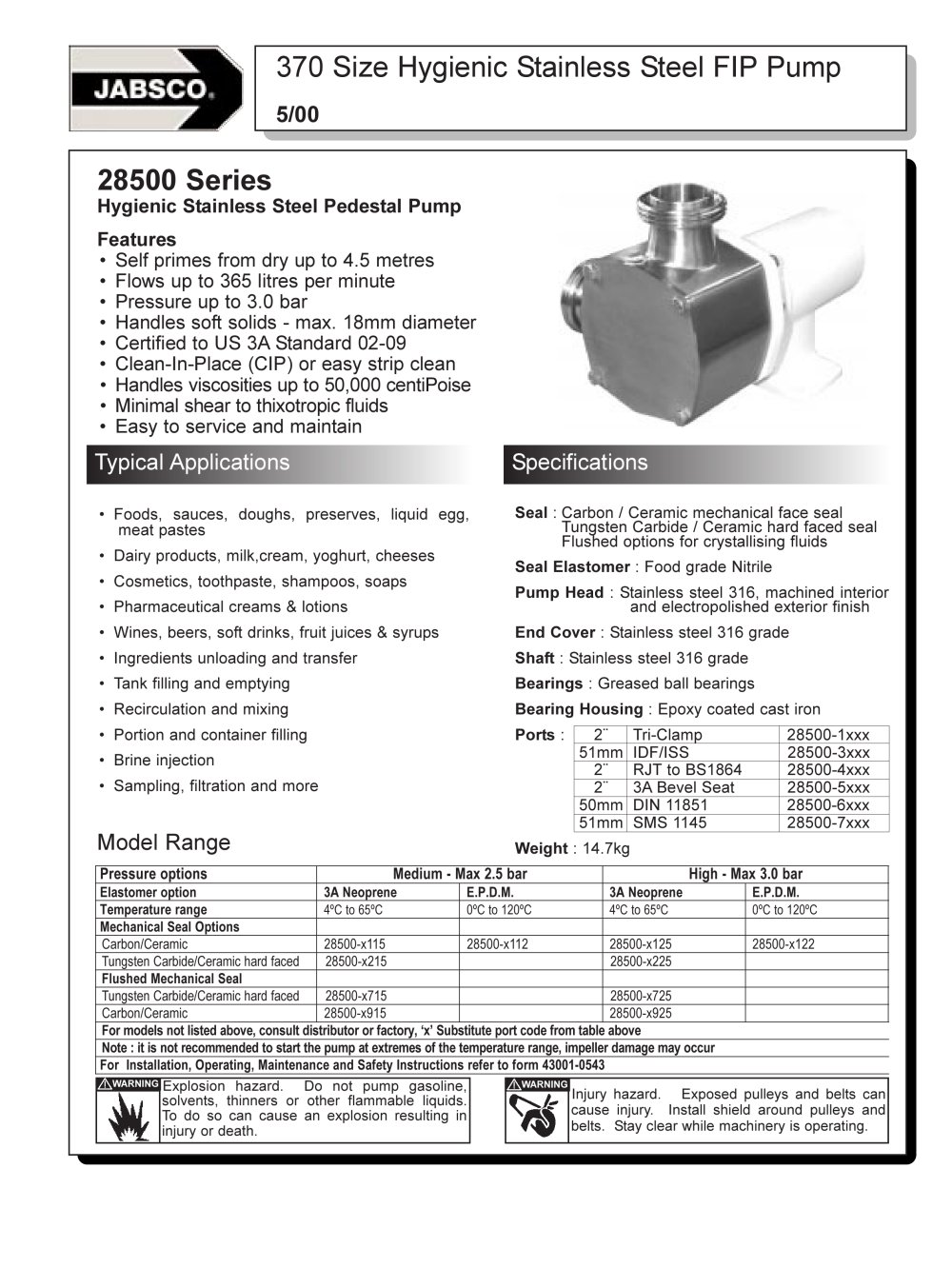

370 Size Hygienic Stainless Steel FIP Pump - 1

370 Size Hygienic Stainless Steel FIP Pump 5/00 Hygienic Stainless Steel Pedestal Pump Features Self primes from dry up to 4.5 metres Flows up to 365 litres per minute Pressure up to 3.0 bar Handles soft solids - max. 18mm diameter Certified to US 3A Standard 02-09 Clean-In-Place (CIP) or easy strip clean Handles viscosities up to 50,000 centiPoise Minimal shear to thixotropic fluids Easy to service and maintain Typical Applications Foods, sauces, doughs, preserves, liquid egg, meat pastes Seal : Carbon / Ceramic mechanical face seal Tungsten Carbide / Ceramic hard faced seal Flushed options for crystallising fluids Dairy products, milk,cream, yoghurt, cheeses Cosmetics, toothpaste, shampoos, soaps Seal Elastomer : Food grade Nitrile Pharmaceutical creams & lotions Pump Head : Stainless steel 316, machined interior and electropolished exterior finish Wines, beers, soft drinks, fruit juices & syrups End Cover : Stainless steel 316 grade Ingredients unloading and transfer Shaft : Stainless steel 316 grade Tank filling and emptying Bearings : Greased ball bearings Bearing Housing : Epoxy coated cast iron Portion and container filling Brine injection Sampling, filtration and more Model Range Pressure options Tri-Clamp IDF/ISS RJT to BS1864 3A Bevel Seat DIN 11851 SMS 1145 Elastomer option 3A Neoprene E.P.D.M. 3A Neoprene E.P.D.M. 4ºC to 65ºC 0ºC to 120ºC 4ºC to 65ºC 0ºC to 120ºC Temperature range Mechanical Seal Options Carbon/Ceramic 28500-x115 28500-x112 28500-x125 28500-x122 Tungsten Carbide/Ceramic hard faced 28500-x215 28500-x225 Flushed Mechanical Seal Tungsten Carbide/Ceramic hard faced 28500-x715 28500-x725 Carbon/Ceramic 28500-x915 28500-x925 For models not listed above, consult distributor or factory, x Substitute port code from table above Note : it is not recommended to start the pump at extremes of the temperature range, impeller damage may occur For Installation, Operating, Maintenance and Safety Instructions refer to form 43001-0543 WARNING Explosion hazard. WARNING Do not pump gasoline, Injury hazard. Exposed pulleys and belts can solvents, thinners or other flammable liquids. cause injury. Install shield around pulleys and To do so can cause an explosion resulting in belts. Stay clear while machinery is operating. injury or death.

Open the catalog to page 1

370 Size Hygienic Stainless Steel FIP Pump - 2

370 Size Hygienic Stainless Steel FIP Pump 5/00 Flushed Seal For performance data refer to the 370 size flexible impeller pump performance curves Spare Parts & Service Kits Description Qty Screw 4 Endcover 1 ORing * 2 Impeller* 1 Body 1 Wearplate 1 Seal Assembly * 1 Seal Spacer 1 Bearing Housing 1 Bearing 2 Retaining Ring 2 Lip seal (Bearing Housing) 2 Shaft 1 Key 1 Washer 4 Screw 4 O-Ring 1 Seal Housing 1 Tube 2 Seal 1 O-Ring 1 Seal Spacer 1 marked * Contained in service kit Pressure Rating Medium High 3 O-Ring Nitrile X4020-424A X4020-424A 4 Impeller 3A Neoprene 8963-0005B 8600-0005B...
