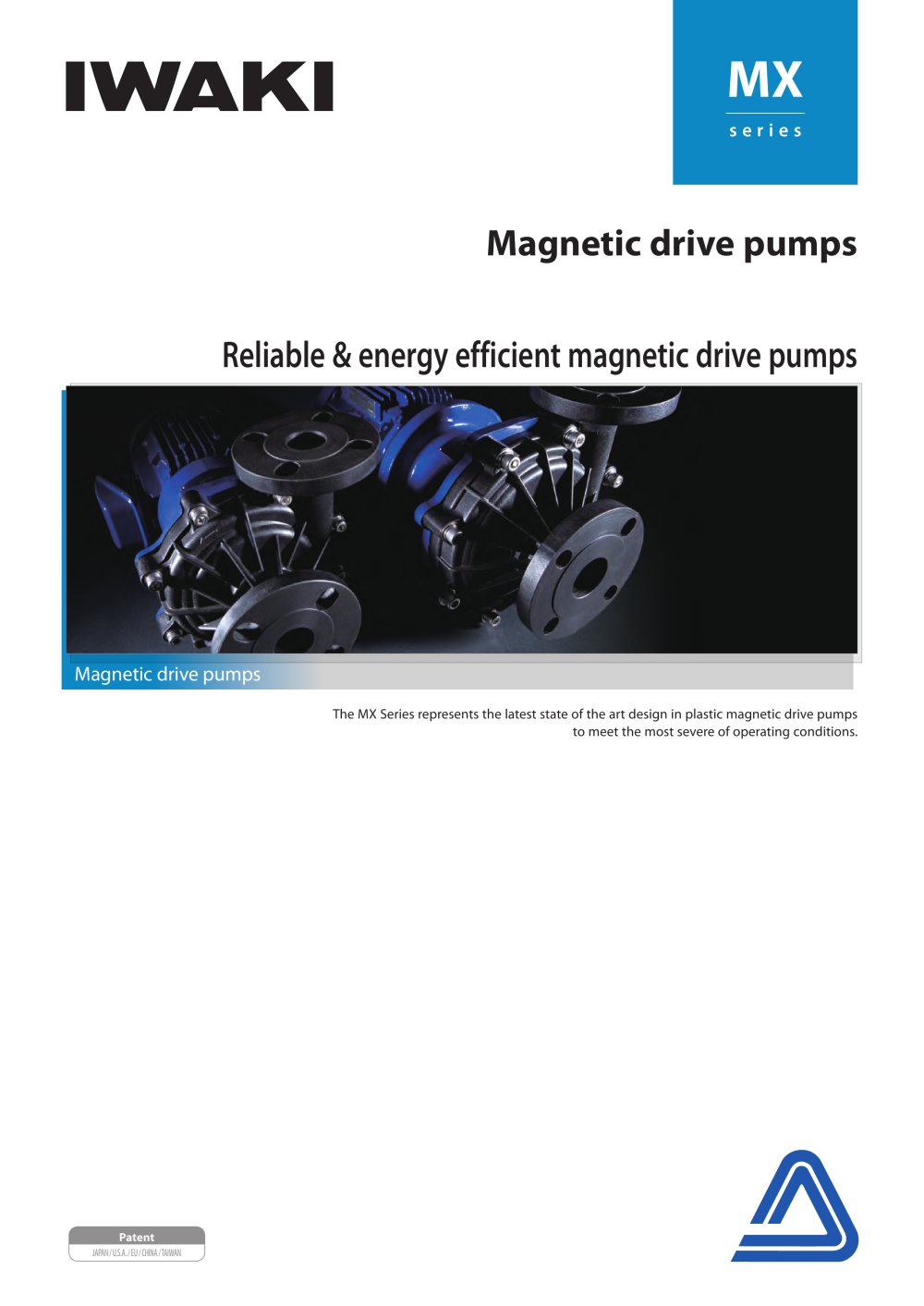

MX series

Product catalog summary

Overview: The MX Series represents advanced plastic magnetic drive pumps designed for challenging operating conditions. These pumps are known for their reliability and energy efficiency, with patents in Japan, the USA, EU, China, and Taiwan.

Key Features:

Self-Radiating Structure: This patented design includes heat-dispersion holes that enhance heat reduction and prevent thermal deformation.
Non-Contact Structure: Innovative magnet installation prevents continuous contact during dry running, reducing heat generation.
Volute Casing: The casing is divided into two sections to minimize internal leaks and improve efficiency.
Robust Structure: Reinforced stress-bearing portions and improved mechanical strength allow operation under abnormal conditions.

Materials and Construction: The pumps use materials like alumina ceramic, PTFE, and CFRPPS, with specific configurations for different models. The construction allows for easy maintenance and improved reliability under high temperatures.

Specifications:

Temperature Range: Liquid temperature from 0 to 80°C, ambient temperature from 0 to 40°C.
Specific Gravity Limit: Varies with discharge; contact for details.
Connection Options: Thread and tube connections available, with specific configurations for different models.

Performance Curves: Detailed performance curves are provided for various models, showing capacity, head, shaft power, and NPSHr across different frequencies (50Hz and 60Hz).

Optional Accessories: Includes union joints made of PVC and heat-resistant PVC, and a dry running protector (DR series) that detects decreased load current to prevent dry running.

Dimensions: Detailed dimensions are provided for different models, with specific notes on thread and tube connection types.

Safety and Legal Considerations: Users are advised to read the instruction manual carefully. Export licenses may be required due to international export control regulations.
