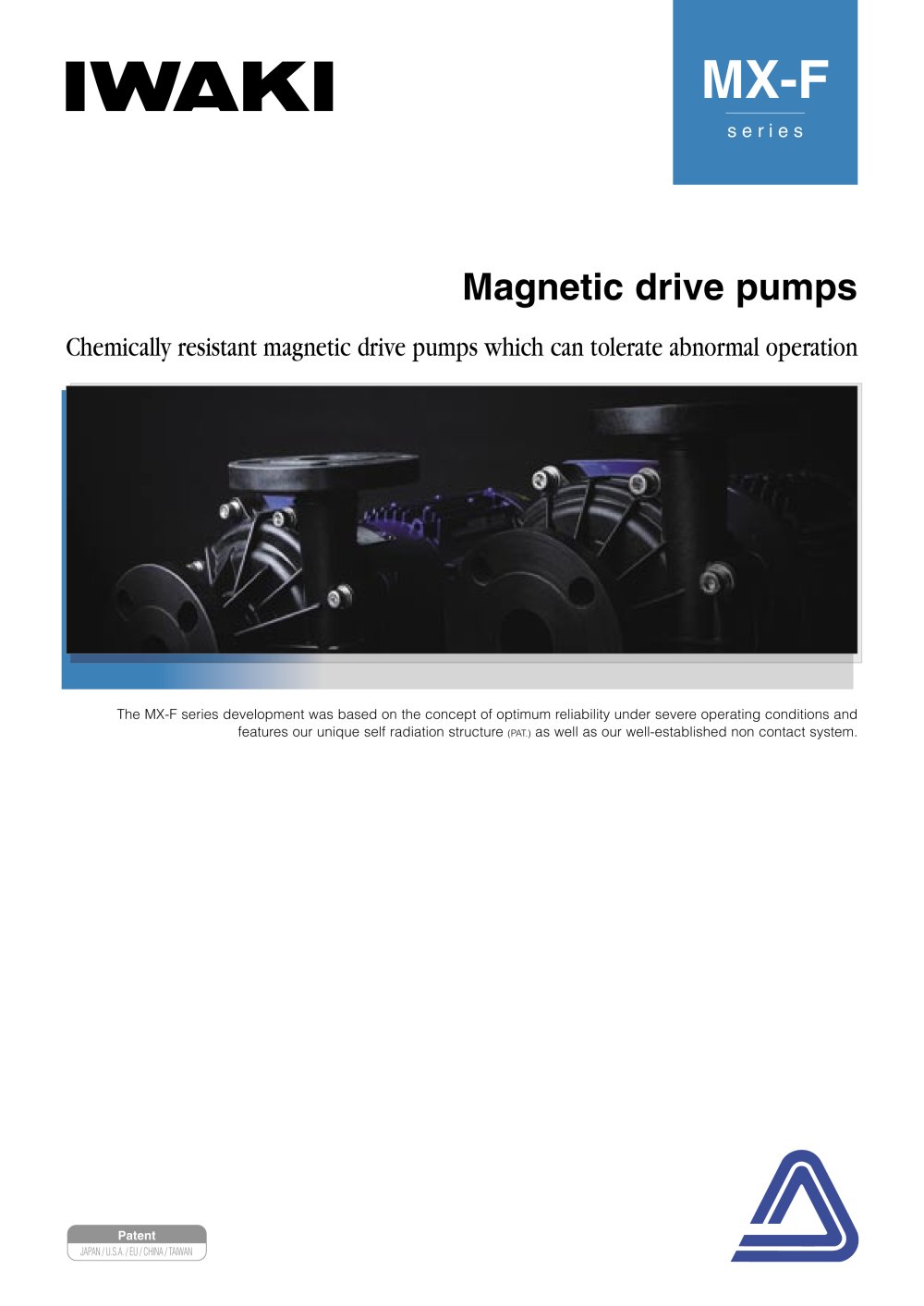

MX-F series

Product catalog summary

Overview: The MX-F series of magnetic drive pumps are designed for chemical resistance and can withstand abnormal operations. They are built for optimal reliability under severe conditions, featuring a unique self-radiation structure and a non-contact system.

Key Features:

Chemical Resistance: Utilizes high-grade materials like ETFE for durability in handling various chemicals.
Mechanical Strength: Improved design allows operation under abnormal conditions, reducing running and maintenance costs.
Volute Casing: Divided into two sections to enhance efficiency by minimizing internal leaks and guiding liquid efficiently.
Robust Structure: Reinforced stress-bearing portions and innovative bearing fixation improve pressure resistance and reliability at high temperatures.

Innovative Structures:

Self-Radiating Structure: Heat-dispersion holes in the impeller and magnet capsule circulate liquid to reduce heat and prevent thermal deformation.
Non-Contact Structure: Magnetic force controls the magnet capsule to prevent contact and reduce heat generation, ensuring lubrication even during dry running.

Model Specifics:

MX-F100: Excludes some features like the self-radiating and non-contact structures.
MX-F402/403: Includes an unplugging preventive lock pin for enhanced security.

Applications: Suitable for a wide range of manufacturing processes requiring reliable chemical handling.
