MDW series

Product catalog summary

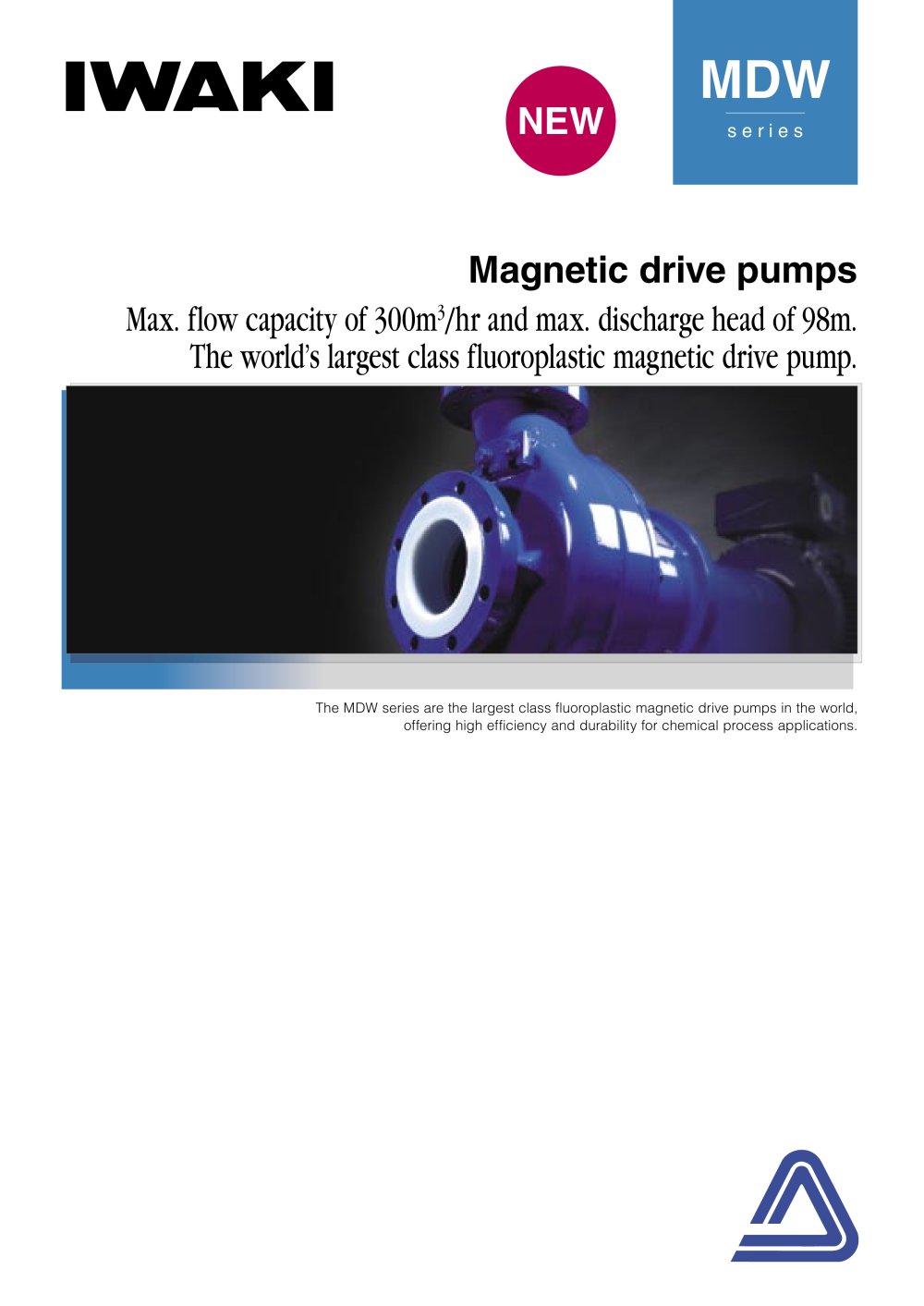

Overview: The MDW series represents the largest class of fluoroplastic magnetic drive pumps globally, designed for high efficiency and durability in chemical process applications. These pumps are capable of a maximum flow capacity of 300m3/hr and a maximum discharge head of 98m, making them suitable for a variety of industrial uses.

Applications: The MDW series is ideal for chemical transfer between supply tanks, chemical recirculation for filtration and heat exchange, scrubber liquid recirculation, and as replacements for conventional sealed pumps.

Key Features:

High Discharge Capacity: Capable of handling a wide range of liquid specific gravities with high efficiency.
Chemical Resistance: Constructed with fluoroplastic and fine ceramic wetted parts, offering resistance to nearly all industrial chemicals.
Robust Structure: Features high strength ductile cast iron external armor and a unique rear casing design for high casing pressure resistance.
Back Pullout System: Allows for easy maintenance and inspection without removing pipework, ensuring safe motor removal without chemical leakage.
ISO Compliance: Dimensionally compliant with ISO2858 and 3661 standards, interchangeable with conventional sealed centrifugal pumps.

Construction and Materials: The MDW series uses a combination of high-strength materials including ductile cast iron and special metal shafts to withstand high radial forces, ensuring continuous operation under harsh conditions.

Performance Curves: The document includes performance curves for the MDW series, illustrating the flow range and efficiency of the pumps under various conditions.

Additional Series: The document also briefly mentions other series such as MXM, MDE, and MDM, highlighting their specifications and unique features like dry running capability and temperature ranges.
