GM-V series

Product catalog summary

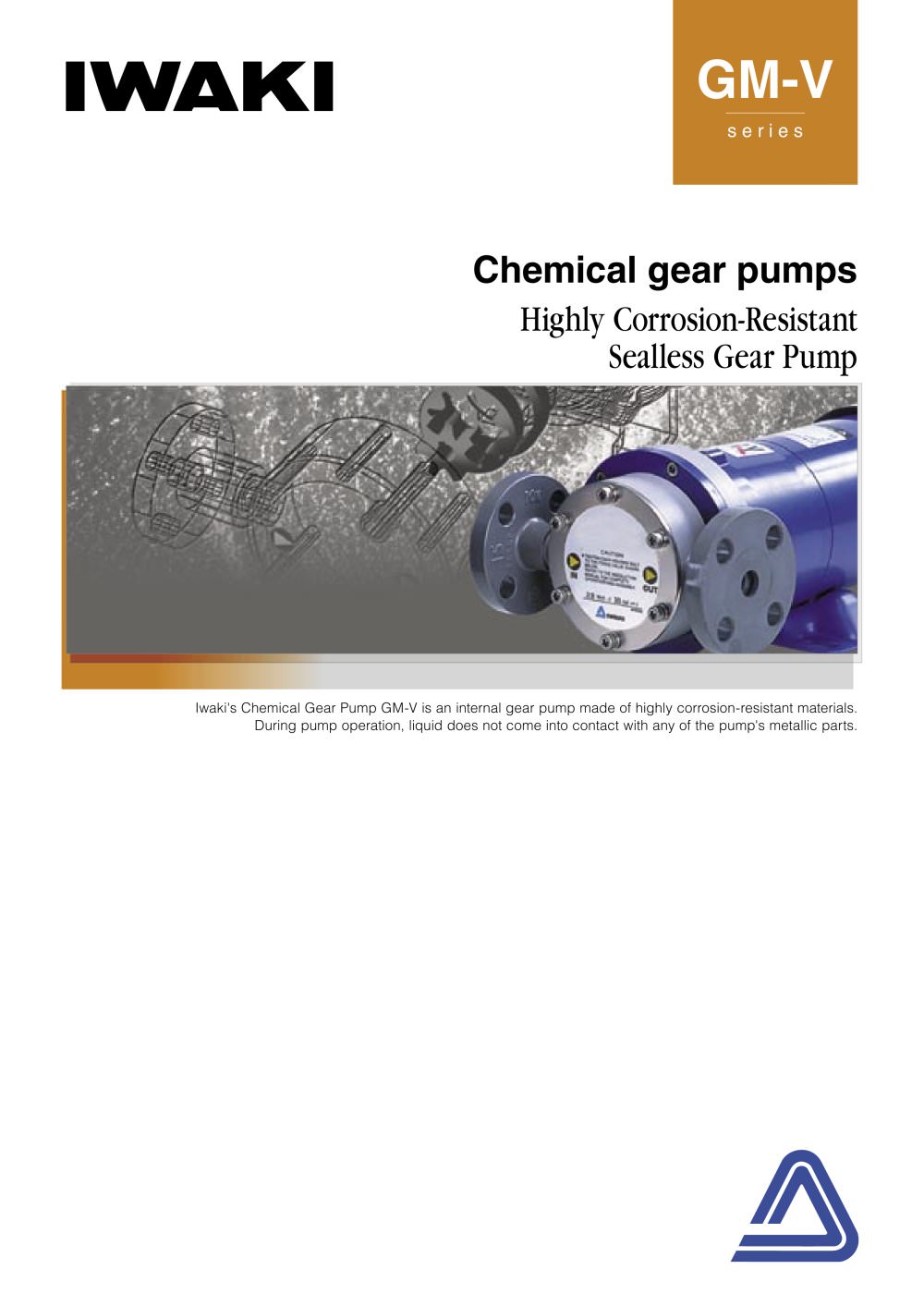

Overview: The Iwaki GM-V series is a line of internal gear pumps designed for handling corrosive chemical solutions. These pumps are constructed from highly corrosion-resistant materials, ensuring that no liquid comes into contact with metallic parts, thus preventing leaks and enhancing safety.

Key Features:

Corrosion Resistance: All components in contact with the liquid are made from PVC, silicon carbide, and fluorine resin, which are resistant to most acids and alkalis.
Sealless Design: The absence of seals eliminates the risk of leaks, making the pump highly reliable for handling corrosive chemicals.
Ceramic Gears: High-durability ceramic gears provide resistance to abrasion and ensure reliable high-speed operation.
Pulsation-Free Operation: The pump operates without pulsation, allowing precise discharge control proportional to the pump's RPM, which can be adjusted using an inverter.
Self-Priming Capability: The pump can self-prime up to 1 meter, depending on the liquid's properties and temperature.
Compact Design: The close-coupled design with the motor eliminates the need for intermediate coupling, making the pump lightweight and compact.

Applications:

Low flow rate and high-pressure applications with chemical solutions.
Pulsation-free metering and injection of chemical solutions such as paper-making dye and sodium hypochlorite.
Processes requiring easy control of flow rate and pressure without the need for pulsation dampeners.

Specifications:

Max discharge capacity: 35.2/42.5 L/min
Max discharge pressure: 1.0 MPa (GX type) / 0.7 MPa (GM type)
Main materials: SiC/SUS316
Liquid temperature range: 0 to 150°C (GX type) / 0 to 80°C (GM type)
Viscous liquid range: 0.5 to 10000 mPa•S (GX type)

Conclusion: The GM-V series pumps are ideal for chemical process applications requiring high corrosion resistance, precise control, and reliable operation without the risk of leaks. Their advanced design and materials make them suitable for a wide range of industrial processes.
