Woodworth High Speed Ball Chuck

Product catalog summary
Description:

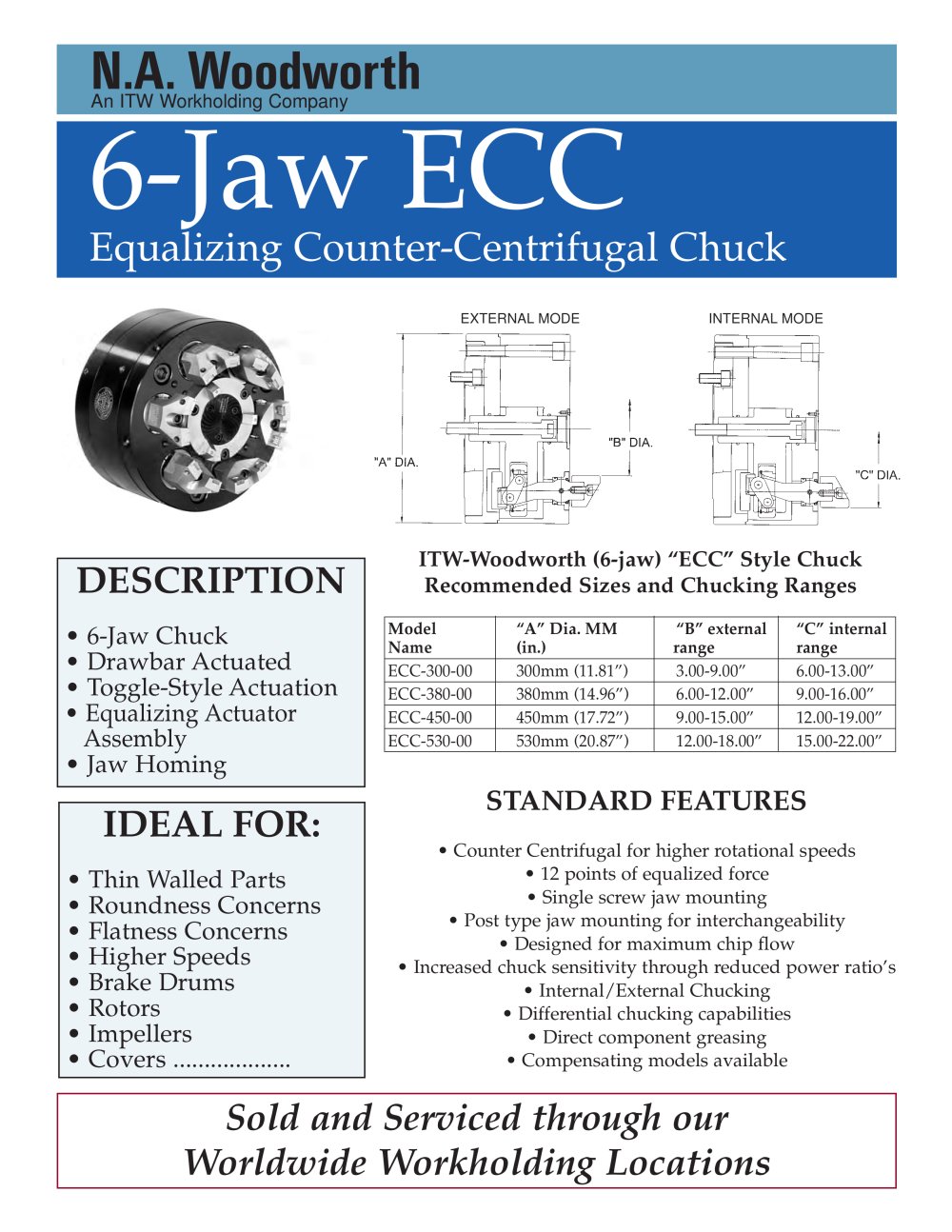

The document describes a 6-Jaw Chuck with drawbar actuation and toggle-style actuation, featuring an equalizing actuator assembly and jaw homing. It is ideal for thin-walled parts, roundness and flatness concerns, higher speeds, brake drums, rotors, impellers, and covers.
Standard Features:
  • Counter centrifugal design for higher rotational speeds.
  • 12 points of equalized force.
  • Single screw jaw mounting and post type jaw mounting for interchangeability.
  • Designed for maximum chip flow and increased chuck sensitivity through reduced power ratios.
  • Internal and external chucking, differential chucking capabilities, direct component greasing, and compensating models available.
Recommended Sizes and Chucking Ranges:
  • ECC-300-00: 300mm (11.81") diameter, external range 3.00-9.00", internal range 6.00-13.00".
  • ECC-380-00: 380mm (14.96") diameter, external range 6.00-12.00", internal range 9.00-16.00".
  • ECC-450-00: 450mm (17.72") diameter, external range 9.00-15.00", internal range 12.00-19.00".
  • ECC-530-00: 530mm (20.87") diameter, external range 12.00-18.00", internal range 15.00-22.00".
Contact Information:
Various worldwide locations are listed for sales and service, including addresses and contact details for N.A. Woodworth, Forkardt North America, Forkardt Schweiz, Buck Chuck, ITW Workholding - Shanghai, Forkardt Deutschland GmbH, and Forkardt France S.A.R.L.
