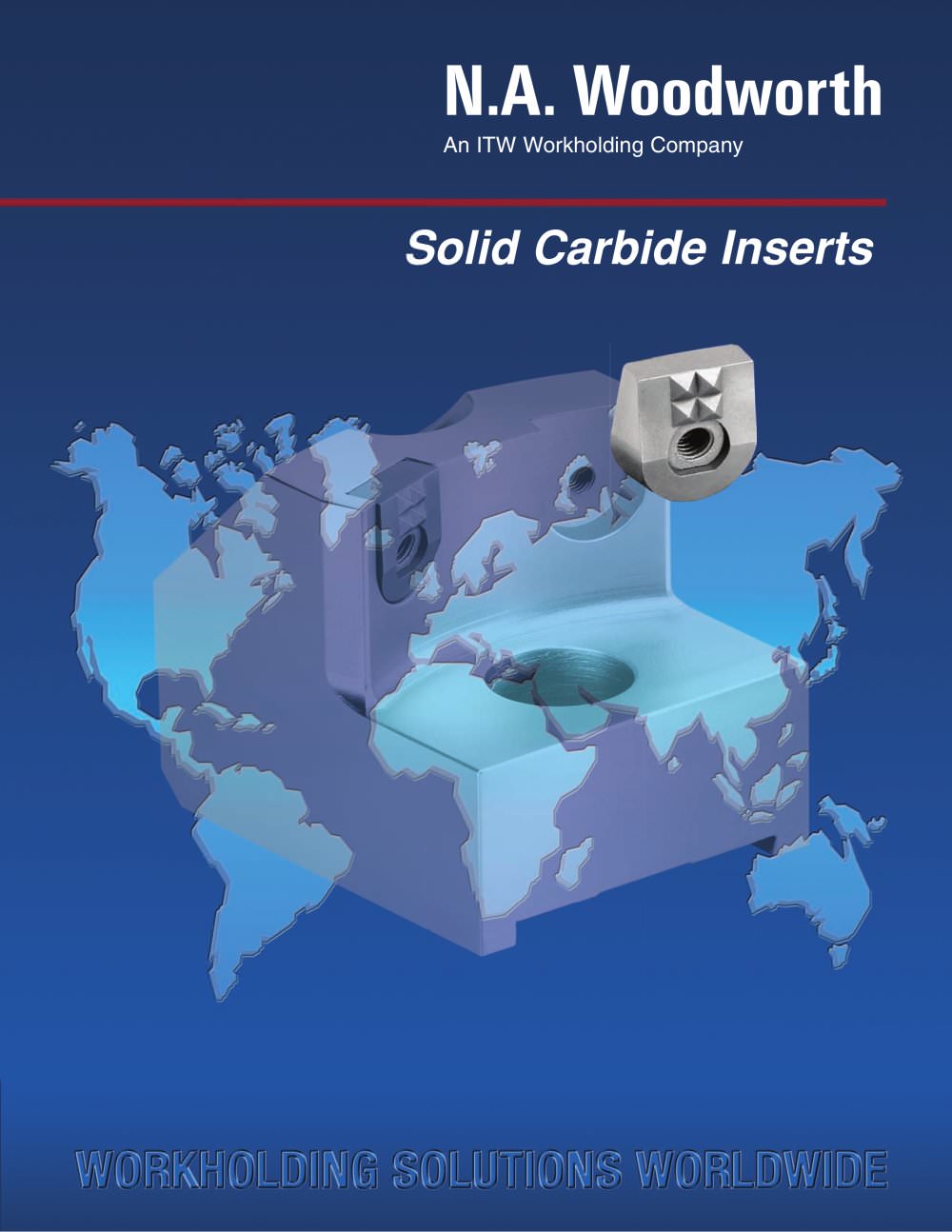

Replaceable Solid Carbide Inserts

Product catalog summary

Overview: This document provides detailed descriptions and specifications for solid carbide inserts offered by N.A. Woodworth, an ITW Workholding Company. These inserts are designed for various industrial applications, including heavy and medium-duty tasks.

General Purpose Inserts - Angle Lok Style:

Designed for heavy and medium-duty applications, suitable for castings, forgings, and bar stock.
Features include high wear resistance and direct mounting in machined pockets.
Models include PC-127-4SC, PC-127-4SCS, PC-127-10SC, each with specific dimensions and tooth penetration capabilities.

Specific Application Angle Lok:

Includes models like PC-130-2SCS and PC-132-2SCS, designed for medium-duty applications with non-adjustable features.
These inserts are ideal for gripping narrow flange type parts and are used on compensating chucks to reduce distortion from pull-back.

Multi-Purpose Round Inserts:

Available in various diameters and tooth patterns, suitable for light to medium-duty applications.
Models include PC-045-4SC, PC-070-4SC, and PC-070-12SC, each offering different levels of adjustability and tooth penetration.

Kit Specifications:

Inserts are sold in kits of 10 pieces, including necessary hardware.
Each kit is specified with dimensions such as diameter/width, height, thread size, and tap depth.

Contact Information:

Contact details for various Forkardt locations worldwide, including Germany, Switzerland, France, and the USA, are provided for customer support and inquiries.

Additional Information:

The document emphasizes the availability of solid carbide inserts in a wide range of configurations and tooth patterns, with a tapped hole for mounting.
