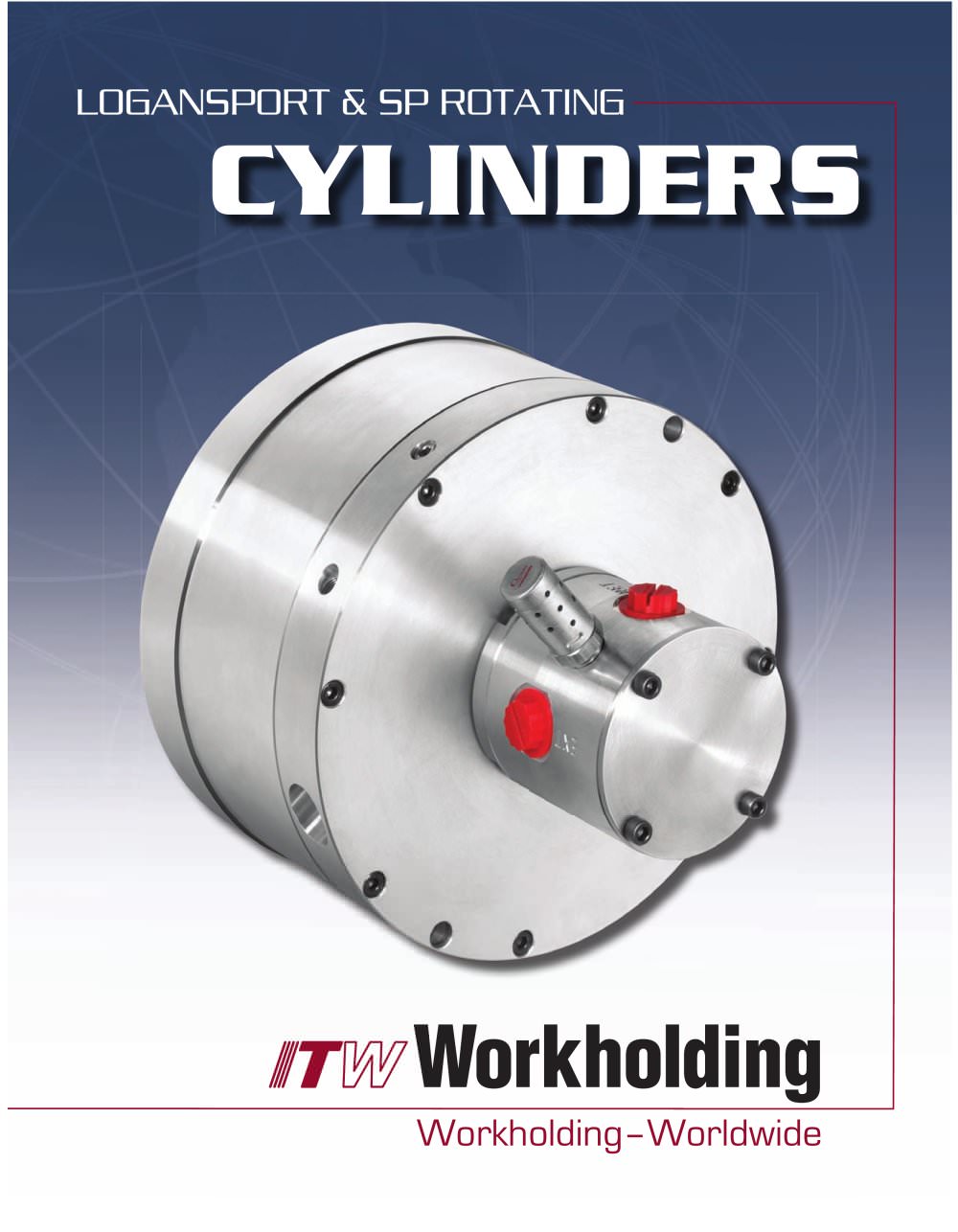

Workholding–Worldwide CYLINDERS LOGANSPORT & SP ROTATING

Rotating Cylinders designs and manufactures two of the most recognized brands of rotating cylinders in industry today. SP and Logansport Rotating Cylinders have been utilized in manufacturing environments for over fifty years and are well known for their proven performance. Whether you need to replace, repair or specify new, we have the product and people to support your application. ® TABLE OF CONTENTS Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 1 Logansport Hydraulic Cylinders . . . . . . . . . . . . . . . . . . . . . . ....

1 ® PRODUCT OVERVIEW Rotating cylinders have basic components which dictate the function and design of the cylinder. Inlet Assembly - The inlet assembly, sometimes called the distributor, can be designed in two ways. It can have a fixed position in relation to the piston housing; or it can float with the stroke of the cylinder (“reciprocating inlet”). Trapping - This safety feature allows the cylinder to remain pressurized, and the chuck to maintain clamping pressure, in the event of a power loss. Viton seals - The seals keep compressed air or hydraulic fluid captured within the cylinder. The...

5 ® RECIPROCATING CYLINDERS ITW’s reciprocating cylinder is designed for applications when stroke and cylinder mounting clearances are restricted. The compact inlet/switch bracket assembly moves with the stroke of the piston. This feature eliminates the need for extra space taken up by traditional solid center cylinders with trip rods and rotating unions. Other features include: • Third port for air or coolant through the piston rod • Male pilot mount • Safety trapping • Direct metric replacement for SMW Autoblok. Capable of replacing Rohm original equipment cylinders. DIMENSIONS AND PERFORMANCE...

8 ® SPECIAL APPLICATIONS ACCESSORIES designs and builds rotating cylinders for many special applications. By incorporating non-standard features into the SP Manufacturing and Logansport Rotating Cylinder brand models, our engineers will custom design specific performance characteristics that few manufacturers can match. Below are examples of special cylinders supplied to various industries: Rotating cylinders were designed with special porting and cylinder sizes aimed at providing faster actuation during part clamp and unclamp. Special single and duplex cylinders were specified for auto and truck...

9 ® OPTIONS OPTIONS THRU HOLE TRIP ROD FOR AIR OR COOLANT THRU • Sense cylinder position • Adjustable proximity switch holders • Sense cylinder position • Adjustable proximity switch holders THRU HOLE TRIP ROD FOR AIR OR COOLANT THRU • Sense cylinder position • Adjustable proximity switch holders 4.51 SOLID TRIP ROD • Sense cylinder position • Adjustable proximity switch holders SOLID TRIP ROD THIRD PORT FOR AIR OR COOLANT THRU • Thru-hole for air, coolant, or oil passage THIRD PORT FOR AIR OR COOLANT THRU • Thru-hole for air, coolant, or oil passage

ORDERING INFORMATION SPECIAL CYLINDER ASSEMBLIES New item number designations are handled on an individual basis. Reorders are routinely placed by referencing the serial or part number stamped on the outside of the cylinder housing. REPLACEMENT PARTS ITW inventories seal kits and “wear” parts. Reference the serial number when placing an order for spare parts and seal kits. WARRANTY AND SERVICE ITW Workholding warrants both SP and Logansport cylinder assemblies for a period of one (1) year from date of shipment against defects in workmanship and material. Should service be required in the Customer’s...

® In 1995 ITW Workholding was formed by combining N.A. Woodworth, SP Manufacturing and Sheffer Collet Company. With the addition of Logansport Cylinder in 1998, ITW Workholding has become the leading manufacturer of specialized and standard chucks, collets, rotating cylinders and workholding accessories. This merging of respective talent, skills, and expertise provides the resources to create truly unique solutions for the entire spectrum of workholding applications. Today, with our total commitment towards quality, customer service and technical innovation, ITW Workholding delivers the most...
