Vandal resistant Range Series 76-95

Vandal resistant Range Series 76-95
4Pages

Catalog excerpts

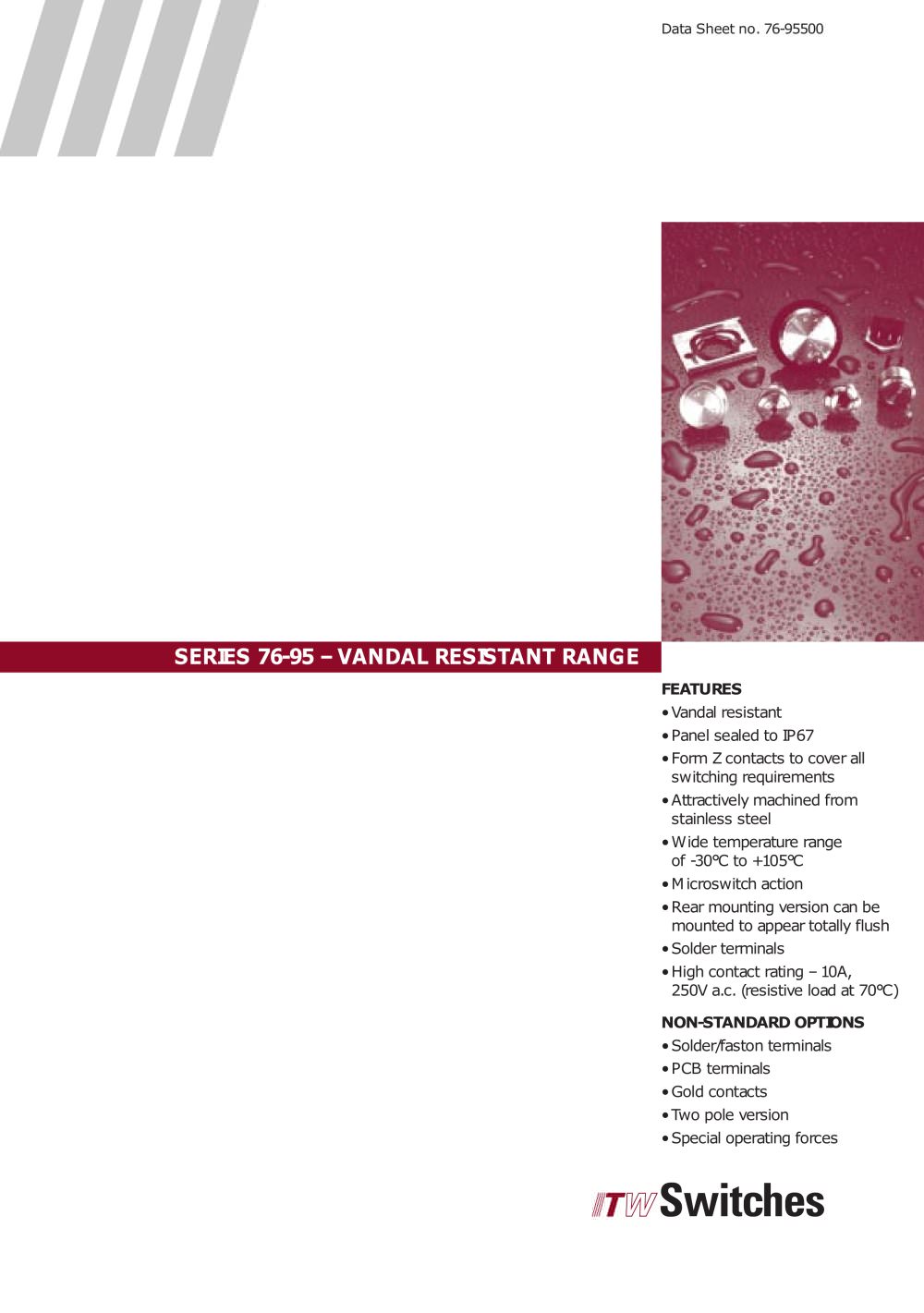

FEATURES ? Vandal resistant ? Panel sealed to IP67 ? Form Z contacts to cover allswitching requirements ? Attractively machined fromstainless steel ? Wide temperature rangeof -30ְC to +105C ? Microswitch action ? Rear mounting version can bemounted to appear totally flush ? Solder terminals ? High contact rating Ж 10A,250V a.c. (resistive load at 70C) NON-STANDARD OPTIONS ? Solder/faston terminals ? PCB terminals ? Gold contacts ? Two pole version ? Special operating forces >

Open the catalog to page 1

Having been designed to withstand impacts of significant force, the 76-95 Series ofpushbutton switches are extremely rugged making them particularly suited to applications in which vandal resistance is a necessity.The switch body and buttons are machined from hard-wearing stainless steel and come infront and rear mounting styles. The front mounting versions have a low profile bezel that protrudes a maximum of 2,5mm from the front panel, including sealing washer, while the rear mounting version is capable of providing a flush interface when viewed from the front. Both switches make it very...

Open the catalog to page 2

Front panel 15mm button Rear panel ֖ 19mm button 1 Front panel 25mm button 2 > Solder terminals, single pole 4044 > The front panel 76-95 mounts from the front into either a 19,25mm or 30,1mm diameter panelcut out. Panel sealing is achieved by means of a sealing washer which is fitted to the switch body before it is inserted into the panel hole. The switch is then held in place by a lock-nut screwed on from the rear and with the 19,25mm diameter version the microswitch can then be snapped into position at the base of the switch body.The rear panel 76-95 locates from the rear into a 22,5mm...

Open the catalog to page 3

Product Drawings > Front Mounting Versions Rear Mounting Version All dimensions in Millimetres Circuit Form > Application References > ? Vandal resistant requirements? Military environments? Robust industrial requirements? Flush-with-panel requirements? Process control? Railway carriage equipment ? External security door controls? Elevators? Fishing vessels? Crane gantry equipment ? Earth moving equipment? Upper deck yachting equipment? Medical instrumentation Further Information > For further information on our complete range of switch products, visit our website www.itwswitchcon.com or...
