SERIES 58M-EM

SERIES 58M-EM
2Pages

Catalog excerpts

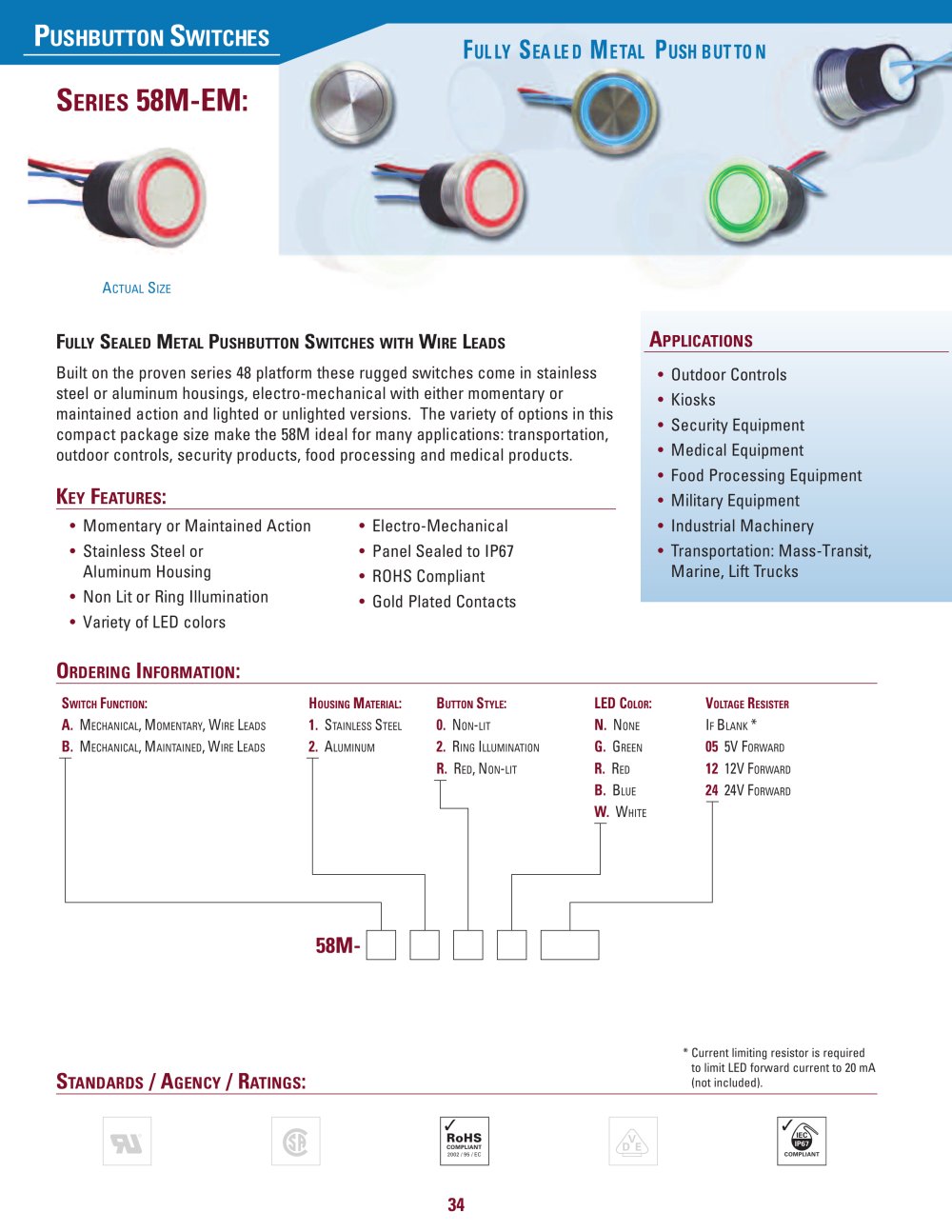

34 APPLICATIONS • Outdoor Controls • Kiosks • Security Equipment • Medical Equipment • Food Processing Equipment • Military Equipment • Industrial Machinery • Transportation: Mass-Transit, Marine, Lift Trucks FULLY SEALED METAL PUSHBUTTON SWITCHES WITH WIRE LEADS Built on the proven series 48 platform these rugged switches come in stainless steel or aluminum housings, electro-mechanical with either momentary or maintained action and lighted or unlighted versions. The variety of options in this compact package size make the 58M ideal for many applications: transportation, outdoor controls, security products, food processing and medical products. KEY FEATURES: • Momentary or Maintained Action • Stainless Steel or Aluminum Housing • Non Lit or Ring Illumination • Variety of LED colors • Electro-Mechanical • Panel Sealed to IP67 • ROHS Compliant • Gold Plated Contacts ACTUAL SIZE STANDARDS / AGENCY / RATINGS: RoHS COMPLIANT 2002 / 95 / EC 3 32IEC IP67 COMPLIANT V D E ® SERIES 58M-EM: FUL LY SEA LE D METAL PUSH BUT TO N PUSHBUTTON SWITCHES ORDERING INFORMATION: 58MSWITCH FUNCTION: A. MECHANICAL, MOMENTARY,WIRE LEADS B. MECHANICAL, MAINTAINED,WIRE LEADS HOUSING MATERIAL: 1. STAINLESS STEEL 2. ALUMINUM BUTTON STYLE: 0. NON-LIT 2. RING ILLUMINATION R. RED, NON-LIT LED COLOR: N. NONE G. GREEN R. RED B. BLUE W. WHITE VOLTAGE RESISTER IF BLANK * 05 5V FORWARD 12 12V FORWARD 24 24V FORWARD * Current limiting resistor is required to limit LED forward current to 20 mA (not included).

Open the catalog to page 1

MECHANICAL / ELECTRICAL CHARACTERISTICS: Circuit: SPST-NO-DB (Form X) Button travel (nominal): 0.09 inches / 2.3 mm Operating force (nominal): 3N / 306 grams Contact bounce (nominal): 1 millisecond Panel thickness: 0.50”– 0.150” (1.3 – 3.8mm) Temperature index: -40°C to +85°C Torque (max): 10 inch pounds LED operating temperature: -13° F to +185° F / -25° C to +85° C Current ratings (resistive): 250mA @ 12VDC, 100K cycles 150mA @ 28VDC, 150K cycles (momentary) 100mA @ 48VDC, 100K cycles 10mA @ 12VDC, 1 million cycles (momentary) ELECTRO-MECHANICAL Dielectric strength: 1,000 VAC Insulation...

Open the catalog to page 2
