Right angle miniature push button Series 100

Right angle miniature push button Series 100

Product catalog summary

Overview: The document provides technical specifications and ordering information for the FLEX-TECH Low Current Series, specifically focusing on the Series 100 right angle miniature pushbutton switch. These switches are suitable for applications in toys, consumer electronics, telecom/datacom products, test and measurement, and medical devices.

Key Features:

Available in momentary or self-lock (maintained) operation.
Options for single or double pole configurations.
Equipped with PCB terminals and silver contacts.

Ordering Information:

Part numbers and configurations are provided for different switch actions and circuit types, including DPDT and SPDT, with various actuator colors.
Keycap styles and colors are listed, with options for rectangular, large square, and small square shapes.

Standards and Ratings:

RoHS compliant according to 2002/95/EC.
IP67 compliant for dust and water resistance.

Mechanical/Electrical Characteristics:

Contact ratings vary between 500 mA and 800 mA at 30 VDC depending on the model.
Non-shorting contact type with an initial contact resistance of 50 milliohms max at 5 VDC, 100 mA.
Travel full is 0.14 inches (3.5 mm) and travel lock is 0.10 inches (2.5 mm).
Operating force is specified as 330 ± 100 grams for models -501 & -502, and 230 ± 100 grams for models -507 & -508.

Recommended PCB Hole Pattern: Schematic diagrams are provided for different switch models and keycap styles.

Contact Information: For pricing and further inquiries, contact details for ITW Switches in Portsmouth, Hampshire, England are provided.

Catalog excerpts

Part NumberSwitch ActionCircuitActuator Color Part NumberColor*Keycap Style 100-510-501 MomentaryDPDTBlack 55-002-230 BlackRectangular 100-510-502 Self-Lock (maintained)DPDTBlue 55-002-231 Light GreyRectangular 100-510-507 Self-Lock (maintained)SPDTBlue 55-002-232 Dark GreyRectangular 100-510-508 MomentarySPDTBlack 55-002-233 WhiteRectangular 55-002-234 Bright ChromeRectangular 55-002-235 Satin ChromeRectangular 55-002-091 SandLarge Square 80-397010 Light GreySmall Square 80-397012 BlackSmall Square 80-397013 WhiteSmall Square > RoHS IECIP67 COMPLIENT VDE 2002 / 95 / EC COMPLIENT

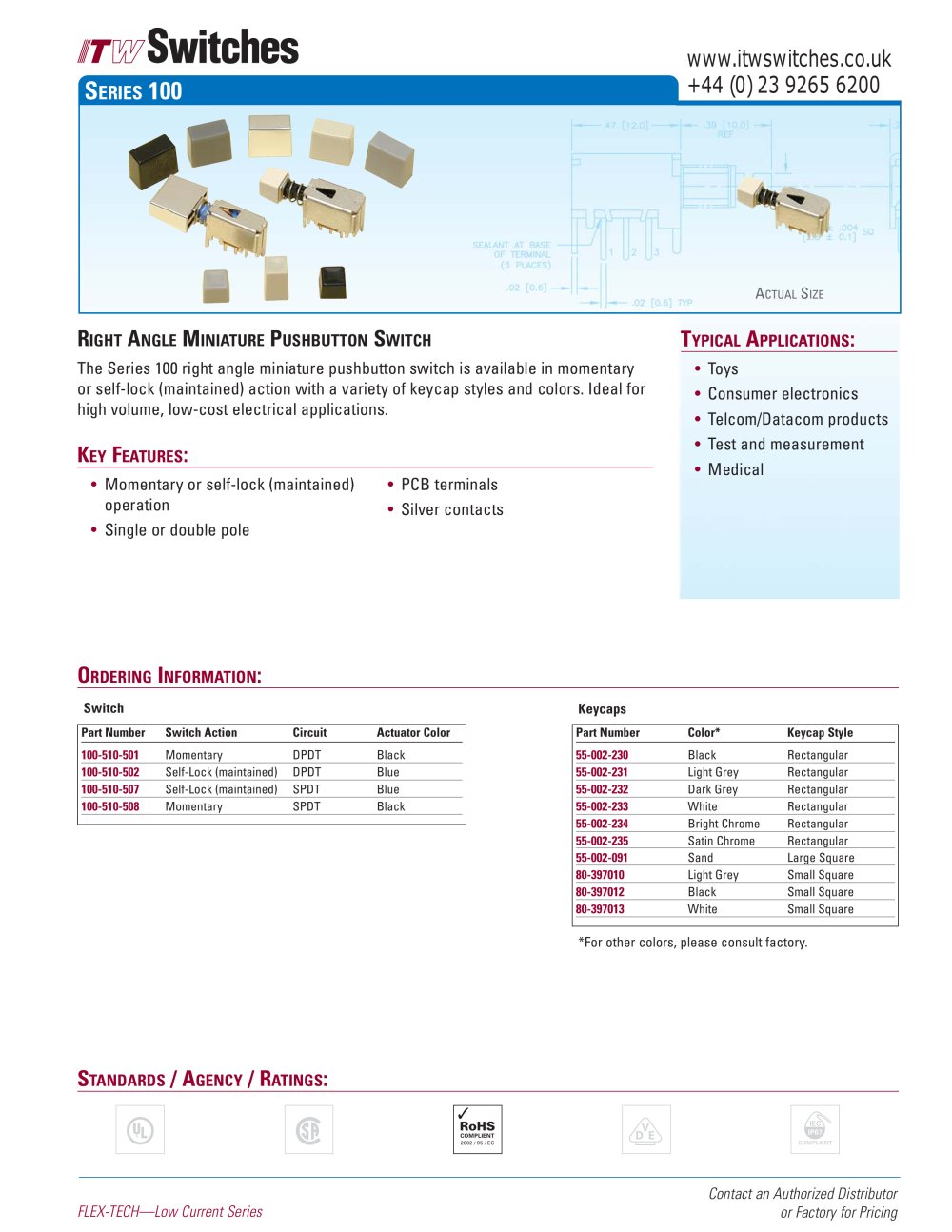

Open the catalog to page 1

Contact Rating: 500 mA, 30 VDC (100 -510 -501 & -502)800 mA, 30 VDC (100 -510 -507 & -508) S > CHEMATIC R > ECOMMENDED PCB H > OLE P > ATTERN Contact Type: Non-Shorting Initial Contact Resistance: 50 milliohms MAX @ 5 VDC, 100 mA Travel Full: .14" (3.5 mm) 100-510-501 & -502 > Travel Lock: .10" (2.5 mm) Operating Force: 330 ױ100 Grams (-501 & -502)230 100 Grams (-507 & -508) S > CHEMATIC R > ECOMMENDED PCB H > OLE P > ATTERN 100-510-507 & -508 > Norway Road Portsmouth, Hampshire P03 5HT, EnglandTel: +44 (0) 23 9265 6200 Fax: +44 (0) 23 9266 [email protected] R >...

Open the catalog to page 2
