Mini vandal resistant switches Series 57

Mini vandal resistant switches Series 57
4Pages

Catalog excerpts

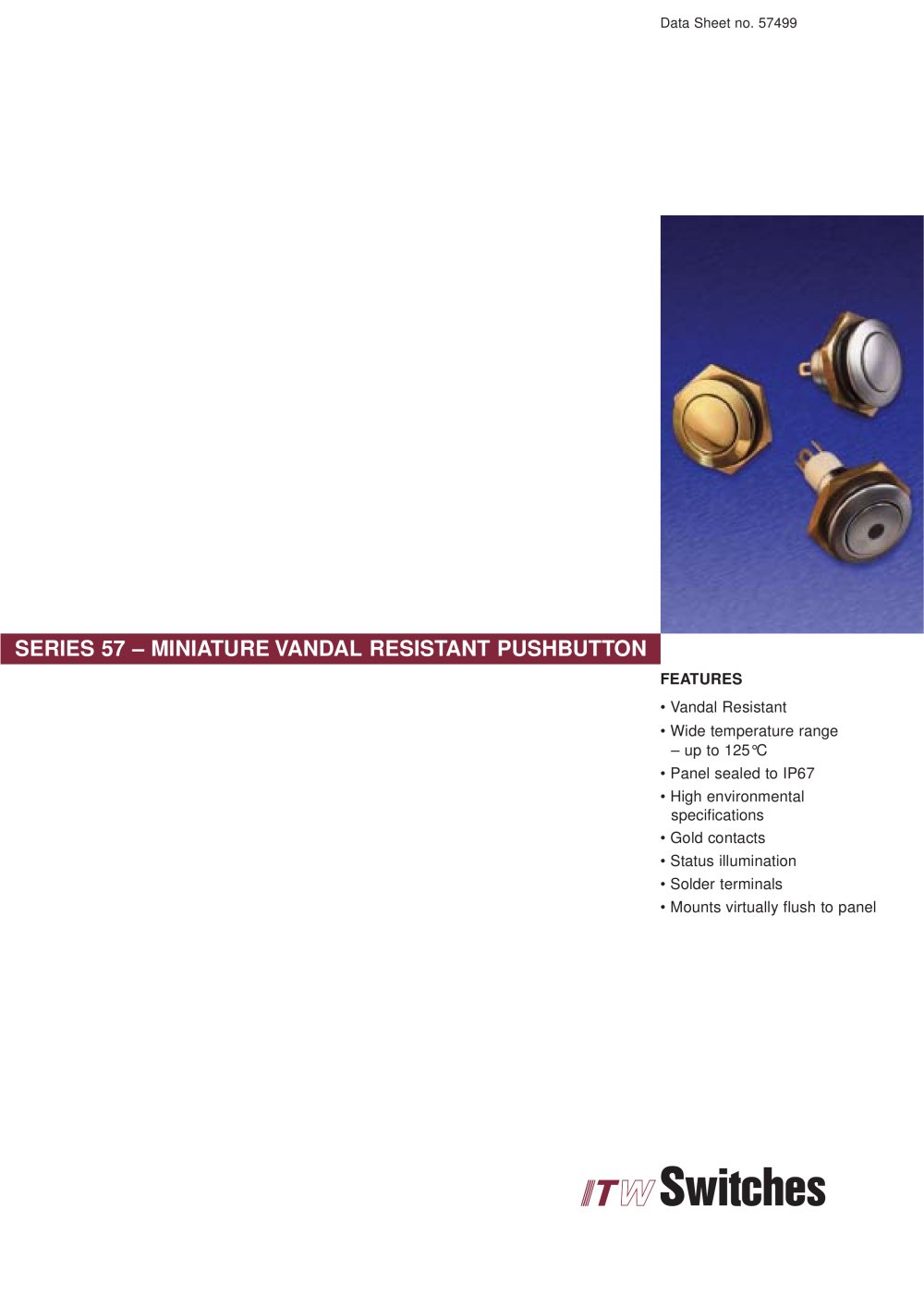

Mini vandal resistant switches Series 57 - 1

FEATURES ֕ Vandal Resistant ? Wide temperature range up to 125ְC? Panel sealed to IP67 ? High environmentalspecifications? Gold contacts ? Status illumination? Solder terminals ? Mounts virtually flush to panel >

Open the catalog to page 1

Mini vandal resistant switches Series 57 - 2

The Series 57 is a range of miniature, momentary action, rugged panel sealed push-buttonswitches with a round button and bezel.The Series is available with or without LED status illumination. Alocknut is supplied with eachswitch.The body and button are manufactured from a non-spark zinc alloy and are velour chromeplated. It is panel sealed to IP67 and is designed to be impact resistant. The small size,robustness and panel sealing make this switch ideal in harsh environments. Status Illuminated Version The illuminated version is available with a choice of 2 high brightness LED colours. >...

Open the catalog to page 2

Mini vandal resistant switches Series 57 - 3

IlluminatedOperating temperature range -35C to +85аC Body and Button material Velour chrome plated zinc alloy Contacts Gold plated palladium nickel Terminal Gold plated brass Salt mist BS2011 Part 2:1 Soldering information 320C max for 3sStandard round bezel 57 Ж > Red R Green G > (This digit is only required for illuminated partnumbers) The Series 57 mounts easily into panels of maximum 3mm thickness. Front panel sealing toIP67 is achieved by the use of a sealing washer which is fitted behind the bezel of the body ofthe switch before it is inserted into the panel hole cut-out. It is held...

Open the catalog to page 3

Mini vandal resistant switches Series 57 - 4

● Vandal resistant requirements > ● Elevators > ● Military environments > ● Fishing vessels > ● Robust industrial requirements > ● Crane gantry equipment > ● Flush-with-panel requirements > ● Earth moving equipment > ● Process control > ● Upper deck yachting equipment > ● Railway carriage equipment > ● Medical instrumentation > ● External security door controls > For further information on our complete range of switch products,visit our website www.itwswitches.co.uk or contact our Sales Office. ITW Switches, ADivision of ITW Limited, Norway Road, Portsmouth, England PO3 5HTTel: 00 44 (0)...
