Microswithces Series Series 19N

Microswithces Series Series 19N
4Pages

Catalog excerpts

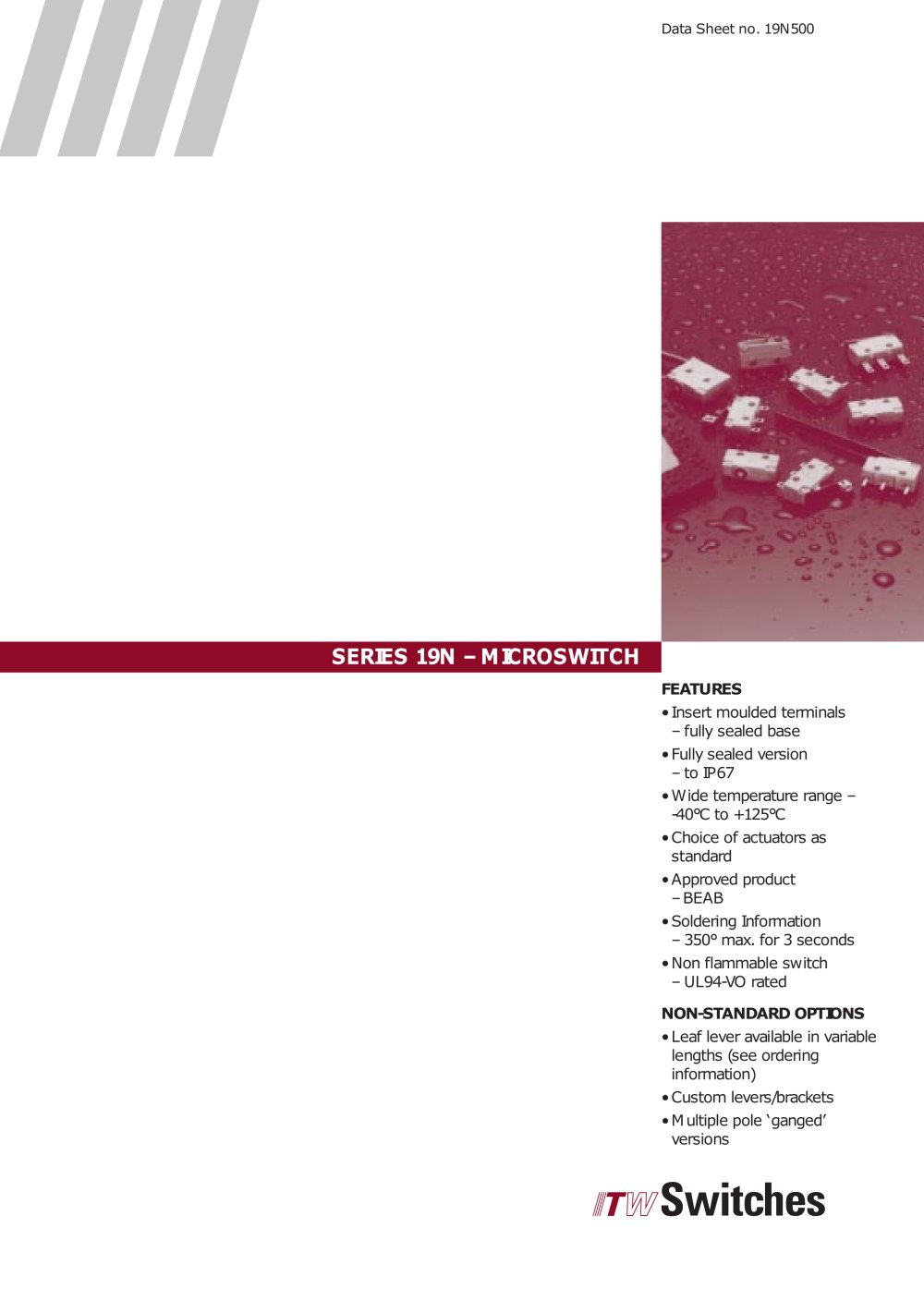

FEATURES ? Insert moulded terminals ֖ fully sealed base ? Fully sealed version to IP67 ? Wide temperature range ֖-40C to +125аC ? Choice of actuators asstandard ? Approved productBEAB ? Soldering Information֖ 350max. for 3 seconds ? Non flammable switchЖ UL94-VO rated NON-STANDARD OPTIONS ? Leaf lever available in variablelengths (see ordering information) ? Custom levers/brackets ? Multiple pole gangedђversions >

Open the catalog to page 1

The miniature microswitch (the standard V4 size) has been designed in line with similarcompetitive products, but because of automation, offers consistent high quality levels for volume applications, at no extra cost. The switch mechanism used is the well proven spring and blade method, and is offered in a choice of operating forces.Other standard options include gold or silver contacts; PCB, solder or QC terminals, andintegral wire lead versions. All versions have a fully sealed base right up to the bottom opening. In addition, sealed button versions are totally environmentally sealed. >...

Open the catalog to page 2

This variant is available in two versions, fully sealed and top sealed. The top seal incorporates arubber seal around the button to stop the ingress of contaminants through this area. If the switch is to be activated by a cam, it would be advisable to do this via a lever, as using a cam directly onto the button can cause damage to the diaphragm seal.The fully sealed version has the top seal and also has integral leads pottedђ onto the terminals.This version is rated at 125C. There is also a derated version, to 105аC, available. This has the advantage of being lower cost than the standard...

Open the catalog to page 3
