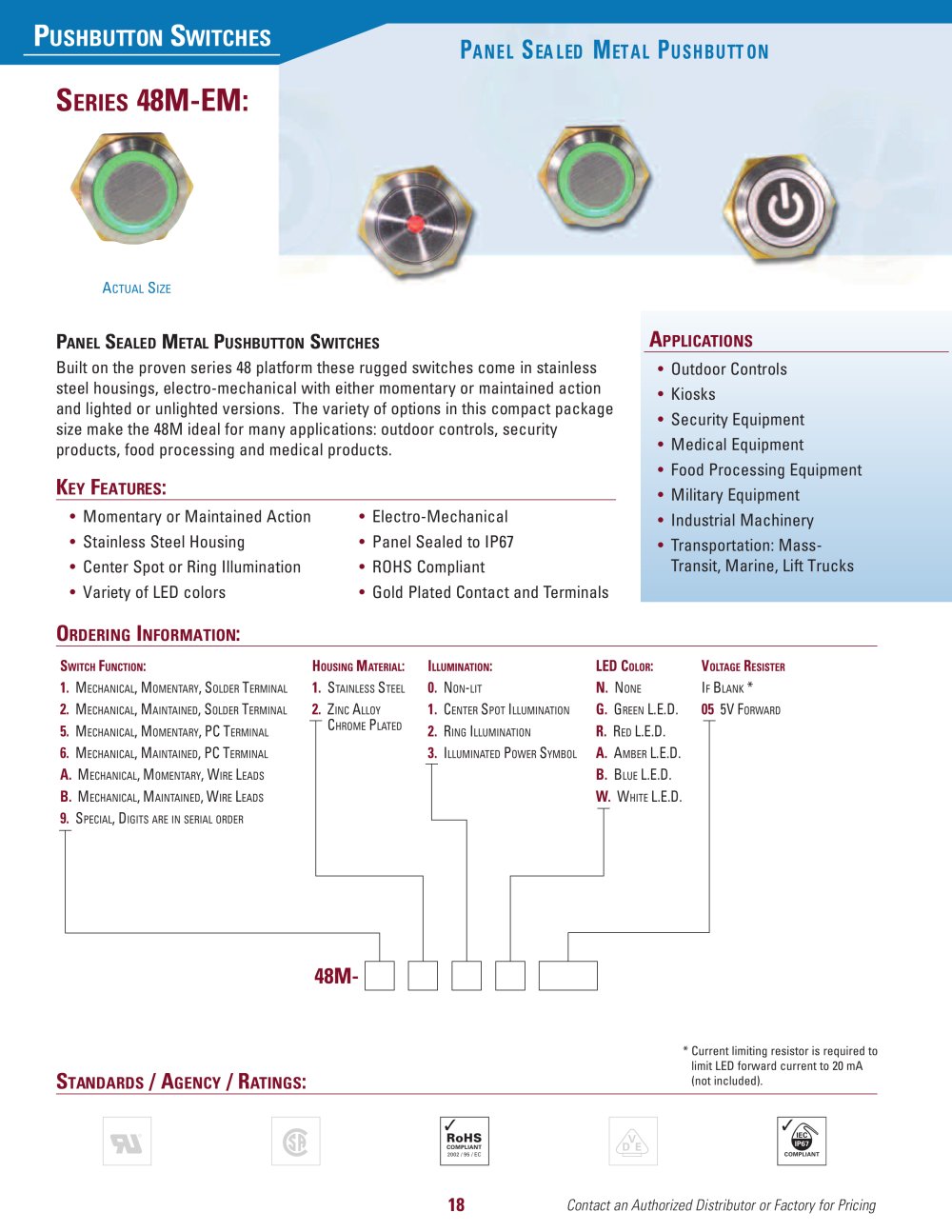

Contact an Authorized Distributor 18 or Factory for Pricing APPLICATIONS • Outdoor Controls • Kiosks • Security Equipment • Medical Equipment • Food Processing Equipment • Military Equipment • Industrial Machinery • Transportation: Mass- Transit, Marine, Lift Trucks PANEL SEALED METAL PUSHBUTTON SWITCHES Built on the proven series 48 platform these rugged switches come in stainless steel housings, electro-mechanical with either momentary or maintained action and lighted or unlighted versions. The variety of options in this compact package size make the 48M ideal for many applications: outdoor controls, security products, food processing and medical products. KEY FEATURES: • Momentary or Maintained Action • Stainless Steel Housing • Center Spot or Ring Illumination • Variety of LED colors • Electro-Mechanical • Panel Sealed to IP67 • ROHS Compliant • Gold Plated Contact and Terminals ACTUAL SIZE STANDARDS / AGENCY / RATINGS: RoHS COMPLIANT 2002 / 95 / EC 3 32IEC IP67 COMPLIANT V D E ® SERIES 48M-EM: PANEL SEA LED METAL PUSHBUTT ON PUSHBUTTON SWITCHES ORDERING INFORMATION: 48MSWITCH FUNCTION: 1. MECHANICAL, MOMENTARY, SOLDER TERMINAL 2. MECHANICAL, MAINTAINED, SOLDER TERMINAL 5. MECHANICAL, MOMENTARY, PC TERMINAL 6. MECHANICAL, MAINTAINED, PC TERMINAL A. MECHANICAL, MOMENTARY,WIRE LEADS B. MECHANICAL, MAINTAINED,WIRE LEADS 9. SPECIAL, DIGITS ARE IN SERIAL ORDER HOUSING MATERIAL: 1. STAINLESS STEEL 2. ZINC ALLOY CHROME PLATED ILLUMINATION: 0. NON-LIT 1. CENTER SPOT ILLUMINATION 2. RING ILLUMINATION 3. ILLUMINATED POWER SYMBOL LED COLOR: N. NONE G. GREEN L.E.D. R. RED L.E.D. A. AMBER L.E.D. B. BLUE L.E.D. W. WHITE L.E.D. VOLTAGE RESISTER IF BLANK * 05 5V FORWARD * Current limiting resistor is required to limit LED forward current to 20 mA (not included).

MECHANICAL / ELECTRICAL CHARACTERISTICS: Circuit: SPST-NO-DB Button travel (nominal): 0.09 inches / 2.3 mm Operating force (nominal): 3N / 306 grams Contact bounce (nominal): 1 millisecond Panel thickness: 0.50”– 0.150” 1.3 – 3.8mm) Temperature index: -40°C to +85°C LED operating temperature: -13° F to +185° F / -25° C to +85° C Torque (max): 10 inch pounds LED operating temperature: -13° F to +185° F / -25° C to +85° C Current ratings (resistive): 250mA @ 12VDC, 100K cycles 150mA @ 28VDC, 150K cycles (momentary) 100mA @ 48VDC, 100K cycles 10mA @ 12VDC, 1 million cycles (momentary) ELECTRO-MECHANICAL...

Contact an Authorized Distributor 20 or Factory for Pricing APPLICATIONS • Outdoor Controls • Kiosks • Security Equipment • Medical Equipment • Food Processing Equipment • Military Equipment • Industrial Machinery • Transportation: Mass- Transit, Marine, Lift Trucks PANEL SEALED METAL PUSHBUTTON SWITCHES Built on the proven series 48 platform these rugged switches come in stainless steel housings, solid-state with either momentary or maintained action and lighted or unlighted versions. The variety of options in this compact package size make the 48M ideal for many applications: outdoor controls,...

MECHANICAL / ELECTRICAL CHARACTERISTICS: Circuit: SPST-NO Button travel (nominal): 0.09 inches / 2.3 mm Life (mechanical) (nominal): 1,000,000 cycles (momentary) 100,000 cycles (maintained) Operating force (nominal): 3N / 306 grams Panel thickness: 0.02 – 0.12 inches / 0.5 – 3mm Temperature index: -40°F to + 185°F LED operating temperature: -13° F to +185° F / -25° C to +85° C Supply voltage: 4.2V to 24V, 26.5V Max. Supply current: BTo 8mA Max. B>Bop, Vcc=12V: 4mA Typ. To 8mA Max. Output current: 20 mA Reverse battery voltage: -30V Max. Reverse output current: -50 mA Max. Torque (max): 10 inch...
