Overview: The Series 48 EM is a versatile range of miniature sealed pushbutton switches designed for various applications. It offers multiple options for mounting styles, button colors, terminations, bezels, lighting, and switching actions, all within a compact package.

Key Features:

Available in momentary or maintained action.
Gold contacts ensure reliability.
Wide selection of button and LED colors, including non-illuminated versions.
Long lifespan with up to 1,000,000 cycles for momentary action.
Sealed to IP67 for panel protection.
Available in square and round bezel versions.

Typical Applications:

Office and medical equipment.
Industrial machinery and outdoor controls.
Mass transportation and food processing equipment.

Standards and Ratings:

Patent # 6,965,085.
Operating temperature range: -40°C to +85°C.
Current ratings: 10mA, 12 VDC Res.
Dielectric strength: 1,000 VAC.
Insulation resistance: 1G OHM.
Contact resistance: 50m OHMS.

Mechanical/Electrical Characteristics:

Circuit type: SPST-NO-DB.
Button travel: 2.3mm nominal.
Operating force: 3N/306g nominal.
Contact bounce: 1 ms nominal.
Panel thickness compatibility: 0.5-3mm.
Torque for fixing nut: 1-2 Newton Metre.

Ordering Information: The switches can be customized based on function, termination type, bezel type, LED color, and button color. Options include:

Momentary or maintained action.
Solder tabs or PC terminals.
Round or square bezels in various colors.
LED colors: Red, Green, Yellow, Blue, Amber, Orange, White, Chrome.

Contact Information: ITW Switches Limited, Norway Road, Portsmouth, Hampshire PO3 5HT, United Kingdom. Tel: 023 9265 6200, Fax: 023 9266 6352, Email: [email protected], Website: www.itwswitches.co.uk

Catalog excerpts

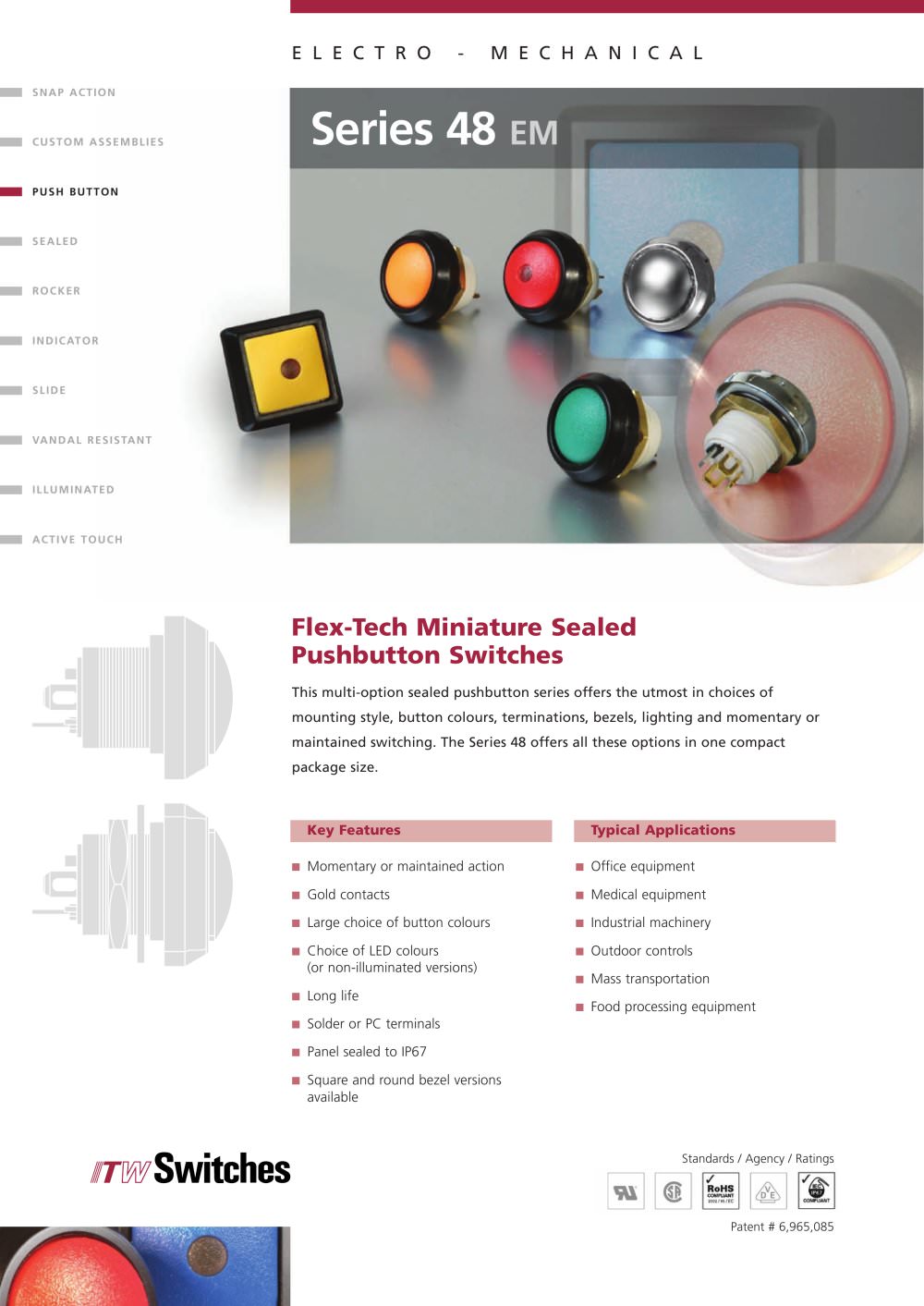

Series 48 EM E L E C T R O - M E C H A N I C A L Flex-Tech Miniature Sealed Pushbutton Switches This multi-option sealed pushbutton series offers the utmost in choices of mounting style, button colours, terminations, bezels, lighting and momentary or maintained switching. The Series 48 offers all these options in one compact package size. Key Features Momentary or maintained action Gold contacts Large choice of button colours Choice of LED colours (or non-illuminated versions) Long life Solder or PC terminals Panel sealed to IP67 Square and round bezel versions available Typical Applications Office equipment Medical equipment Industrial machinery Outdoor controls Mass transportation Food processing equipment SNAP ACTION CUSTOM ASSEMBLIES PUSH BUTTON SEALED ROCKER INDICATOR SLIDE VANDAL RESISTANT ILLUMINATED ACTIVE TOUCH Standards / Agency / Ratings Patent # 6,965,085
