ITW Dynatec Patented VECTOR Metering Applicator

Product catalog summary

Overview: The document provides technical specifications and features of ITW Dynatec's adhesive application solutions, focusing on the Equity Series SBR recirculation adhesive valve and the patented VECTOR Metering Applicator.

Key Features:

Quick Pump Change: Pumps can be changed in less than 5 minutes.
Spray Patterns: Offers multiple spray patterns such as Omega and Random by changing the nozzle.
Servo Pump Drive: Ensures maximum RPM accuracy for precise pattern lay-downs.
Multiple Port Capability: Allows a pump to feed multiple or single modules.
High-Speed Application: The Equity Series SBR valve supports high-speed intermittent application and long cycle life.
Fast Access: Quick access to modules, filters, pumps, and drive assemblies.

Specifications:

Maximum Adhesive Temperature: 425°F (218°C)
Maximum Air Temperature: 500 psi (34 bar)
Max Adhesive Pump Input Pressure: 400 psi (28 bar)
Maximum Solenoid Air Pressure: 100 psi (7 bar)
Electrical Service: 240 VAC
Drive Motor: Servo
Filter: Basket style, inside/out filtration - 100 or 150 mesh standard
Solenoid Voltage: 24 vdc, 120 vac, 240 vac
Solenoid Valves: Mac 45 4-way
Viscosity Range: 500 cps to 30,000 cps
Application Width Range: 4” to 24” (102 mm to 610 mm)
Intermittent Cycle Rate Range: Up to 6,000 cycles per minute
Pump Sizes: Ranges from 0.4cc/rev to 1.67cc/rev
Material - Body Construction: 4140 steel

Dimensions:

Unit Dimensions: Available in 4, 8, 16, and 24 port configurations with varying footprints and consistent height and width.

Contact Information:

Americas: ITW Dynatec, Hendersonville, TN, USA
Europe, Africa, and Middle East: ITW Dynatec GmbH, Mettmann, Germany
Asia and Pacific: ITW Dynatec K.K., Tokyo, Japan

Catalog excerpts

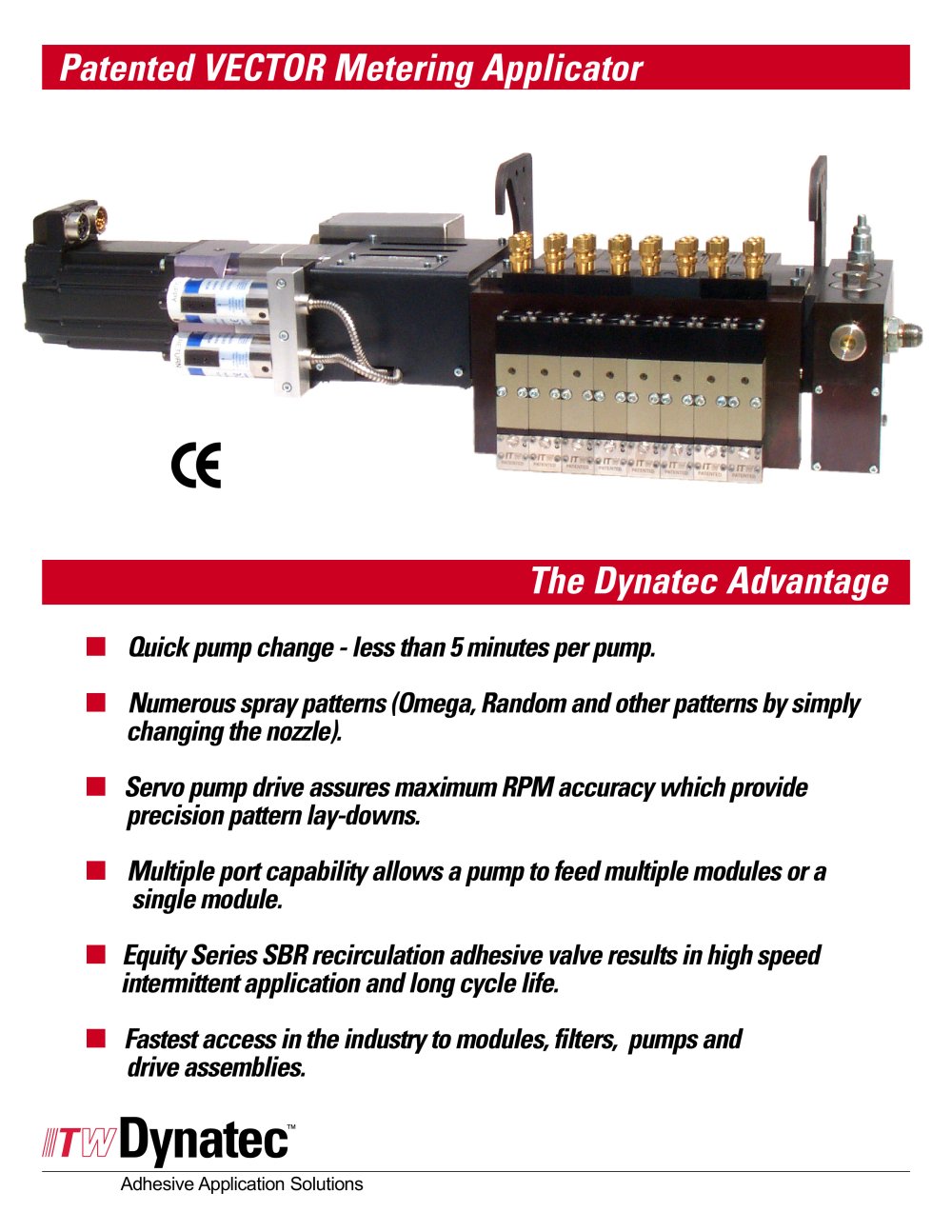

ITW Dynatec Patented VECTOR Metering Applicator-1

Quick pump change - less than 5 minutes per pump. Numerous spray patterns (Omega, Random and other patterns by simply changing the nozzle). Servo pump drive assures maximum RPM accuracy which provide precision pattern lay-downs. Multiple port capability allows a pump to feed multiple modules or a single module. Equity Series SBR recirculation adhesive valve results in high speedintermittent application and long cycle life. Fastest access in the industry to modules, filters, pumps and drive assemblies. > Adhesive Application Solutions size="-1">

Open the catalog to page 1

ITW Dynatec Patented VECTOR Metering Applicator-2

Equity SBR Modules Patented Gear Pump > Quick Change Precision Metering Pump UFD Spiral Spray > Maximum Adhesive Temperature 425 > o F (218 > o C) Maximum Air Temperature 500 psi (34 bar) Max Adhesive Pump Input Pressure 400 psi (28 bar) Maximum Solenoid Air Pressure 100 psi (7 bar) Electrical Service 240 VAC Drive Motor Servo Filter Basket style, inside/out filtra- tion - 100 or 150 mesh standard Solenoid Voltage 24 vdc, 120 vac, 240 vac Solenoid Valves Mac 45 4-way Viscosity Range 500 cps to 30,000 cps Application Width Range 4 to 24Ԕ (102 mm to 610 mm) Intermittent Cycle Rate Range up to 6,000...

Open the catalog to page 2
