ITW Dynatec DG II Hot Melt Hand Applicator

ITW Dynatec DG II Hot Melt Hand Applicator
2Pages

Catalog excerpts

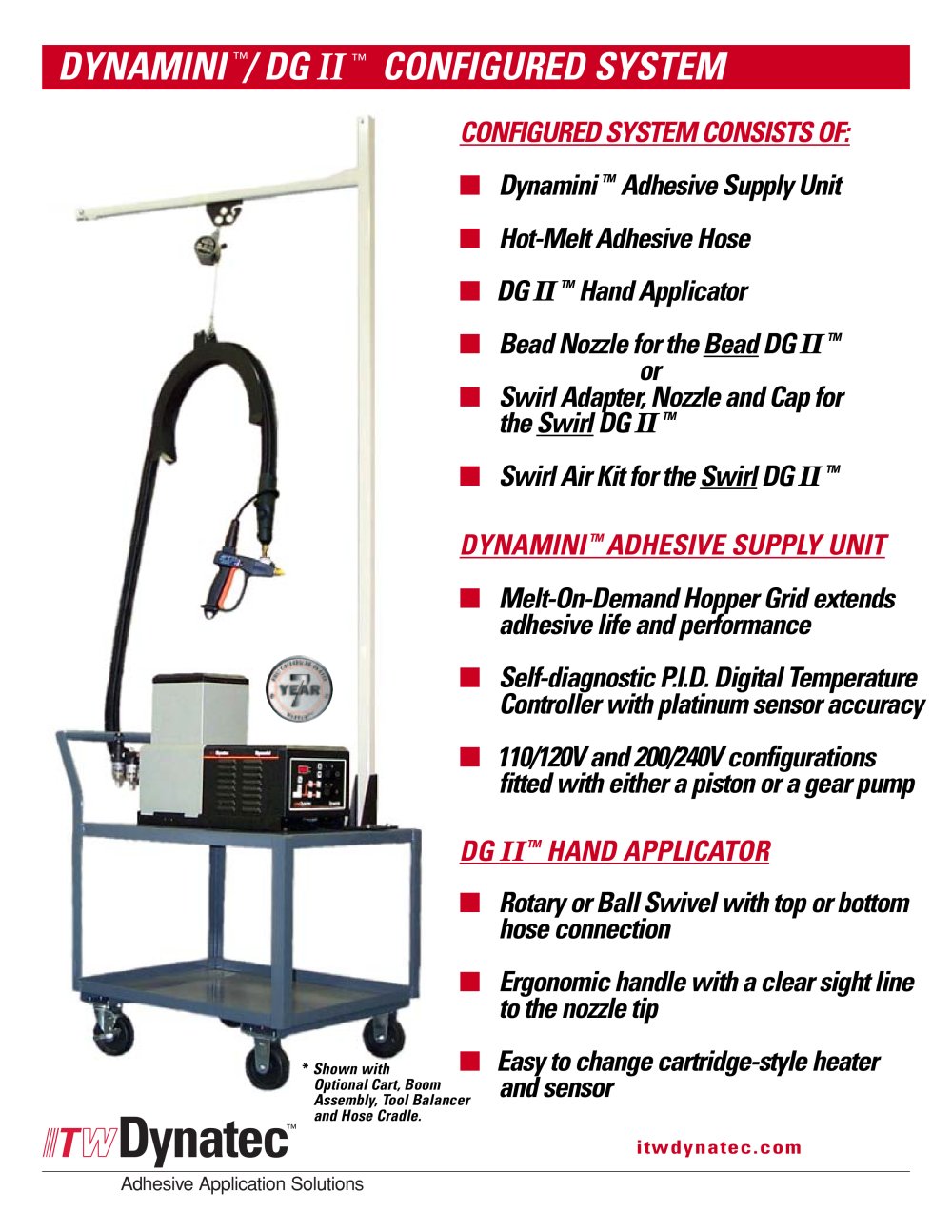

ITW Dynatec DG II Hot Melt Hand Applicator - 1

CONFIGURED SYSTEM CONSISTS OF: ٢֠ Dynamini > TM Adhesive Supply Unit ■ Hot-Melt Adhesive Hose ■ DG II > TM Hand Applicator ■ Bead Nozzle for the Bead DG II > TM or ■ Swirl Adapter, Nozzle and Cap forthe Swirl DG II > TM ■ Swirl Air Kit for the Swirl DG II > TM TM TM Y UNIT ■ Melt-On-Demand Hopper Grid extends adhesive life and performance ■ Self-diagnostic P.I.D. Digital Temperature Controller with platinum sensor accuracy ■ 110/120V and 200/240V configurationsfitted with either a piston or a gear pumpDYNAMINI ADHESIVE SUPPL DG II HAND APPLICA TOR ■ Rotary or Ball Swivel with top or bottom hose connection ■ Ergonomic handle with a clear sight line to the nozzle tip > * Shown withOptional Cart, Boom Assembly, Tool Balancer and Hose Cradle. ■ Easy to change cartridge-style heaterand sensor > itwdynatec.com Adhesive Application Solutions size="-1">

Open the catalog to page 1

ITW Dynatec DG II Hot Melt Hand Applicator - 2

DG II SPECIFICA TIONS ELECTRICAL 80 Watts at 120 or 240 VAC 1 Ph 50/60 HzMAXIMUM TEMPERATUREՕ 450 F (232 C)MAXIMUM ADHESIVE PRESSURE 1000 psi (70 bar)MAXIMUM ADHESIVE VISCOSITYՕ 80,000 cps > o o * Shown with Optional Cart, Boom Assembly, Tool Balancer and Hose Cradle. Four fingertrigger > itwdynatec.com Adhesive Application Solutions > AMERICAS ASIA and PACIFIC EUROPE, AFRICA andMIDDLE EAST ITW Dynatec 31 Volunteer Drive Hendersonville, TN 37075 Telephone 615ٕ8243634 1Օ800860Օ6150 Fax 615264Օ5248 Dynatec@ITWDynatec.com ITW Dynatec K.K. Daiwashinagawa Bldg.,7-15, Konan, 3-Chome Minato-Ku,...
